Lifetime #7525 - Extension Arm Attachment to Backboard; Securing Extension Arms; Backboard Handling for Protection

10
31.1 Rest the Backboard (AU) and Rim (AO) on cardboard to prevent scratching.
31
29.1 Tighten the Nut until it is ush with the Bolt.
29

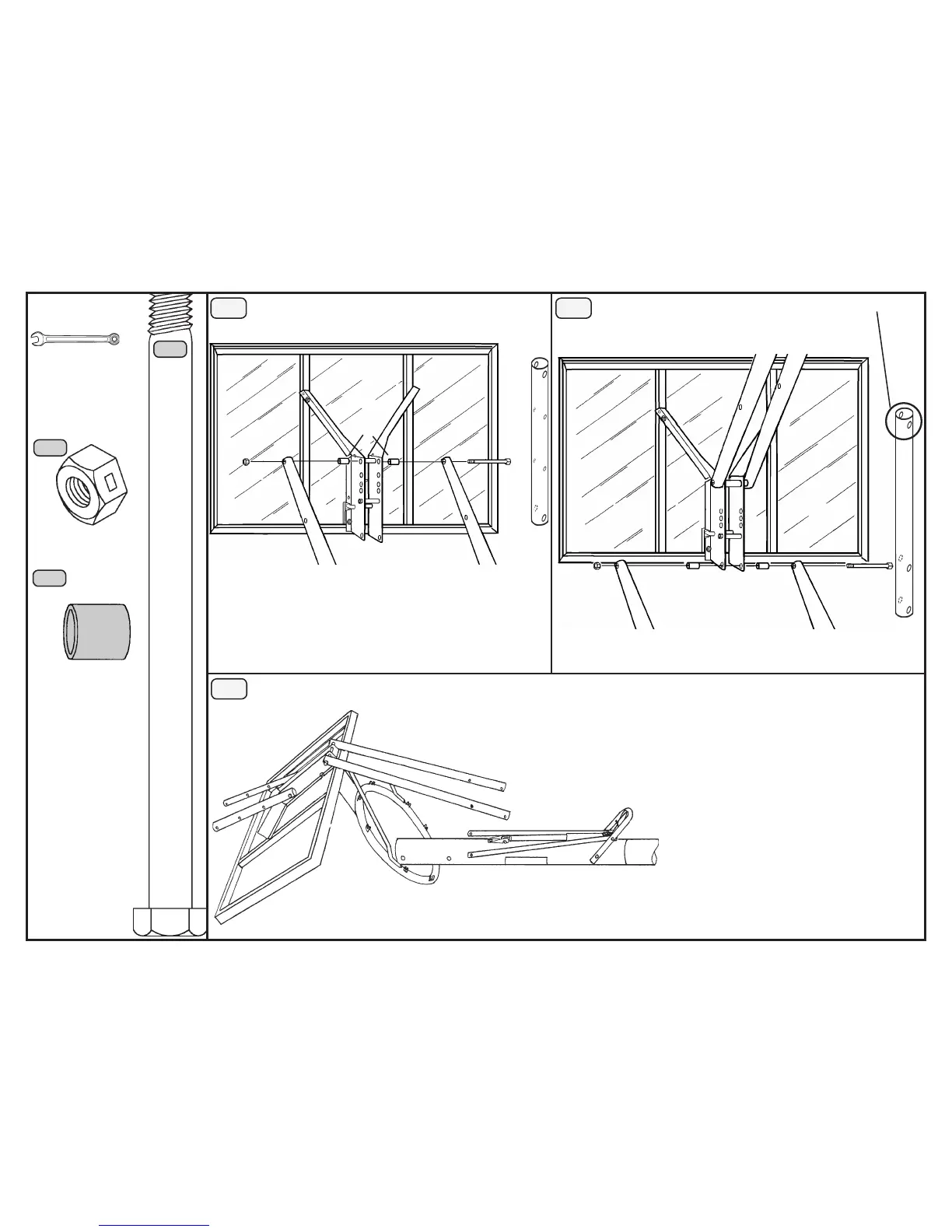

30.1 Attach this end of the Long Extension Arms (AE) to the
Backboard Brackets (AP & AQ).
30.2 Tighten the Nut until it is ush with the Bolt.
AE
30
MH
MZ MA
AE
AE
MZ
MA
(2)
MZ
(2)
(4)
MH
Required For This
Page:
1/2” Wrench
Electric Drill/
Screwdriver
3/4” Wrenches
HD9185
MH
AA
MZ
MA
AA
AA
