TOOLS AND HARDWARE REQUIRED
X SECTION 5 (CONTINUED)
5.9

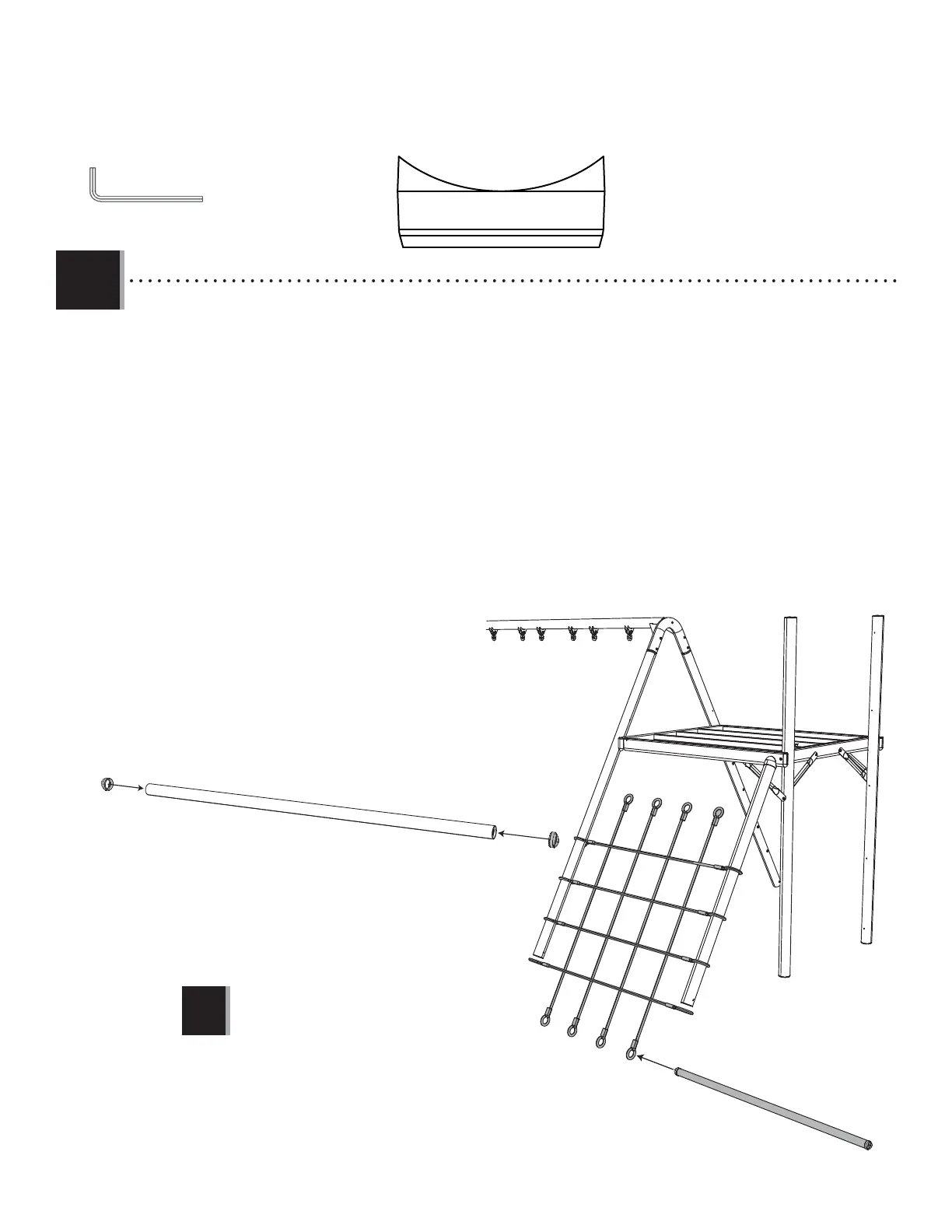

• While one person holds the Angled Cargo Leg in place, straighten out the ropes of the Cargo Net (CBM) and slide
the Cargo Net up the angled poles on the playset. The large loops go on the sides and the small loops go at the
top and bottom. Do not attach the top loops of the Cargo Net to the hooks on the back side of the Cargo Side
Deck Tube at this time. Place a Cargo Net Pole Cap (ARY) on each end of the Cargo Net Bottom Pole (CBN). Slide the
Cargo Net Bottom Pole through the bottom loops of the Cargo Net.
ARY (x2)
3/16 in/po (≈5 mm)
(2)
ARY
CBN
CBM
ARY
CAY
!
• This step requires two people.
