45
TOOLS AND HARDWARE REQUIRED
X SECTION 6 (CONTINUED)

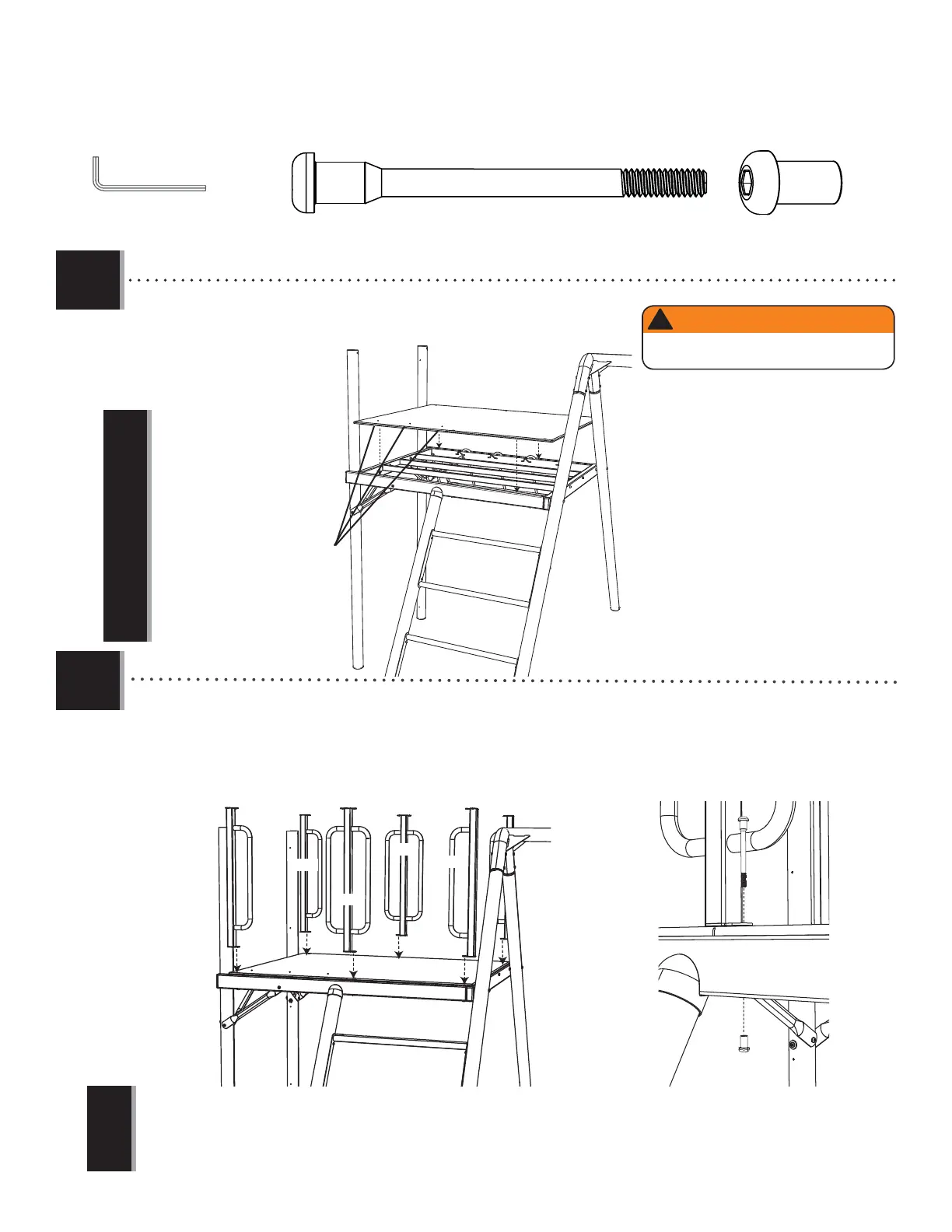

• Place the Deck (CBR) on the Deck Support Assembly, textured side up.
6.1
BTS (x6)
!
• There are three pre-drilled holes
located here. This is where the
slide will be placed later in the
assembly.
DRZ (x6)
CBR
WARNING
Do not stand in Clubhouse until the Deck floor is
completely attached.
!
• Attach the One-Handle Rails (CBS) and the Two-Handle Rails (CBT) to the Deck in the locations indicated. Secure each Rail
with the hardware indicated. The end of the rails with the single hole is the end that goes down toward the Deck.
6.2
DRZ
BTS
CBS
CBT
CBS
CBS
CBS
CBT
!
• To make sure the Deck is aligned, hand-tighten the Bolts until all harware has been installed, then completely tighten all the bolts.
3/16 in/po (≈5 mm)
(2)
