19
TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / HERRAMIENTAS Y HERRAJE REQUERIDOS
X SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN)

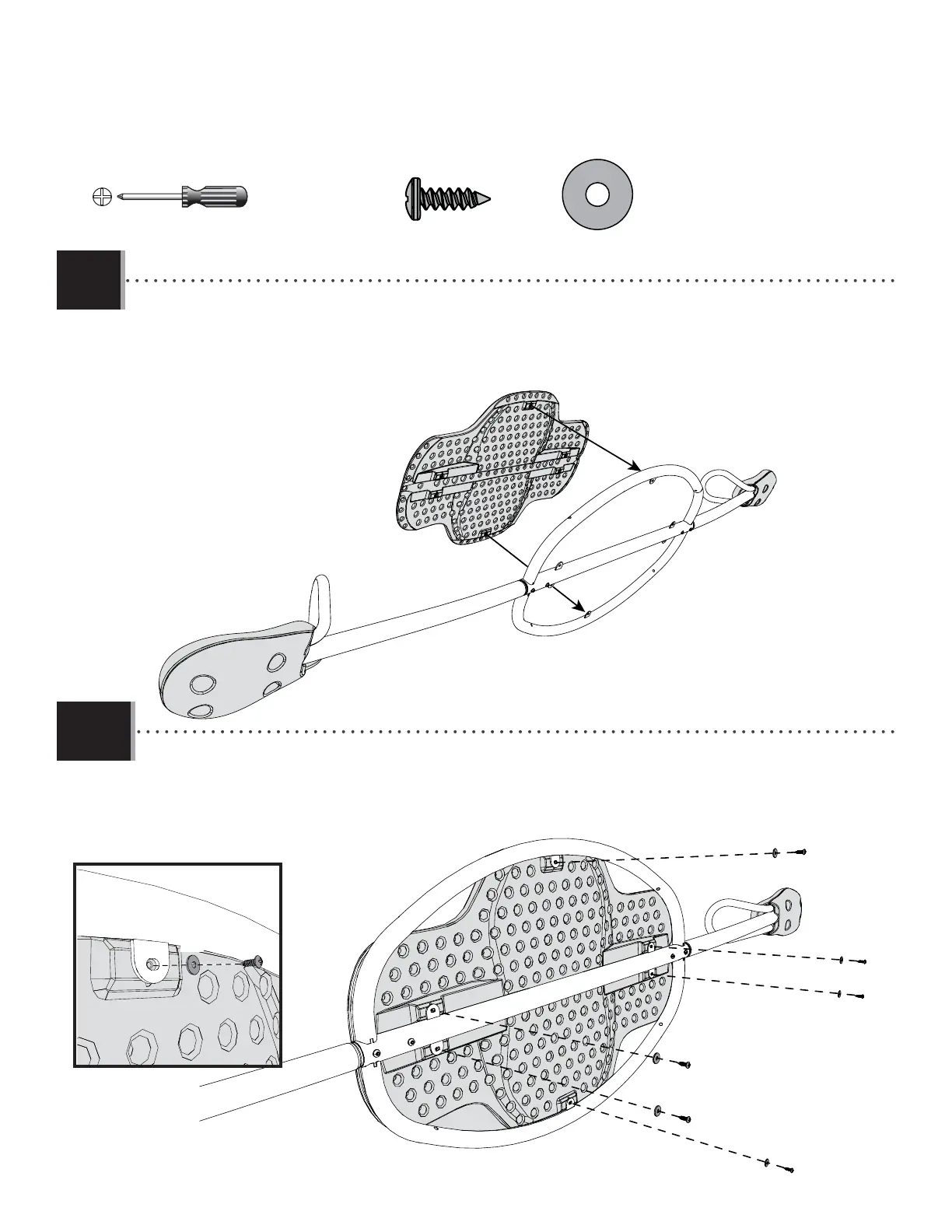

• Using two (2) adults, rotate the frame onto its side. Place the middle seat (GOA) up against the frame to have access
to attach the hardware.
• À l’aide de deux (2) adultes, faites pivoter le cadre sur le côté. Placez lesiège central(GOA)contre le cadre pour
avoir accès du quincaillerie.
• Entre dos (2) adultos, roten el marco hacia un lado. Coloquen el asiento de en medio (GOA) contra el marco para
poder fi jar el herraje.
1.9
• Attach the middle seat (GOA) to the frame with the hardware indicated. Tighten the hardware to a snug-tight
condition.
• Fixez le siège central (GOA)au cadre avec le quincaillerie indiqué. Serrez le quincaillerie dans un état parfaitement
ajusté.
• Fijen el asiento de en medio (GOA) al marco con el herraje indicados. Apriete el herraje hasta un punto cómodo.
1.10
GOA
GRZGON
(1)
GON (x6)
GRZ
GRZ
GRZ
GRZ
GRZ
GRZ
GON
GON
GON
GON
GON
GON
GRZ (x6)
