TOOLS AND HARDWARE REQUIRED / OUTILS ET QUINCAILLERIE REQUIS / INSTRUMENTAL Y HERRAJE REQUERIDOS
X SECTION 1 (CONTINUED) / SECTION 1 (SUITE) / SECCIÓN 1 (CONTINUACIÓN)
GAW
GAU
1.8
1.14

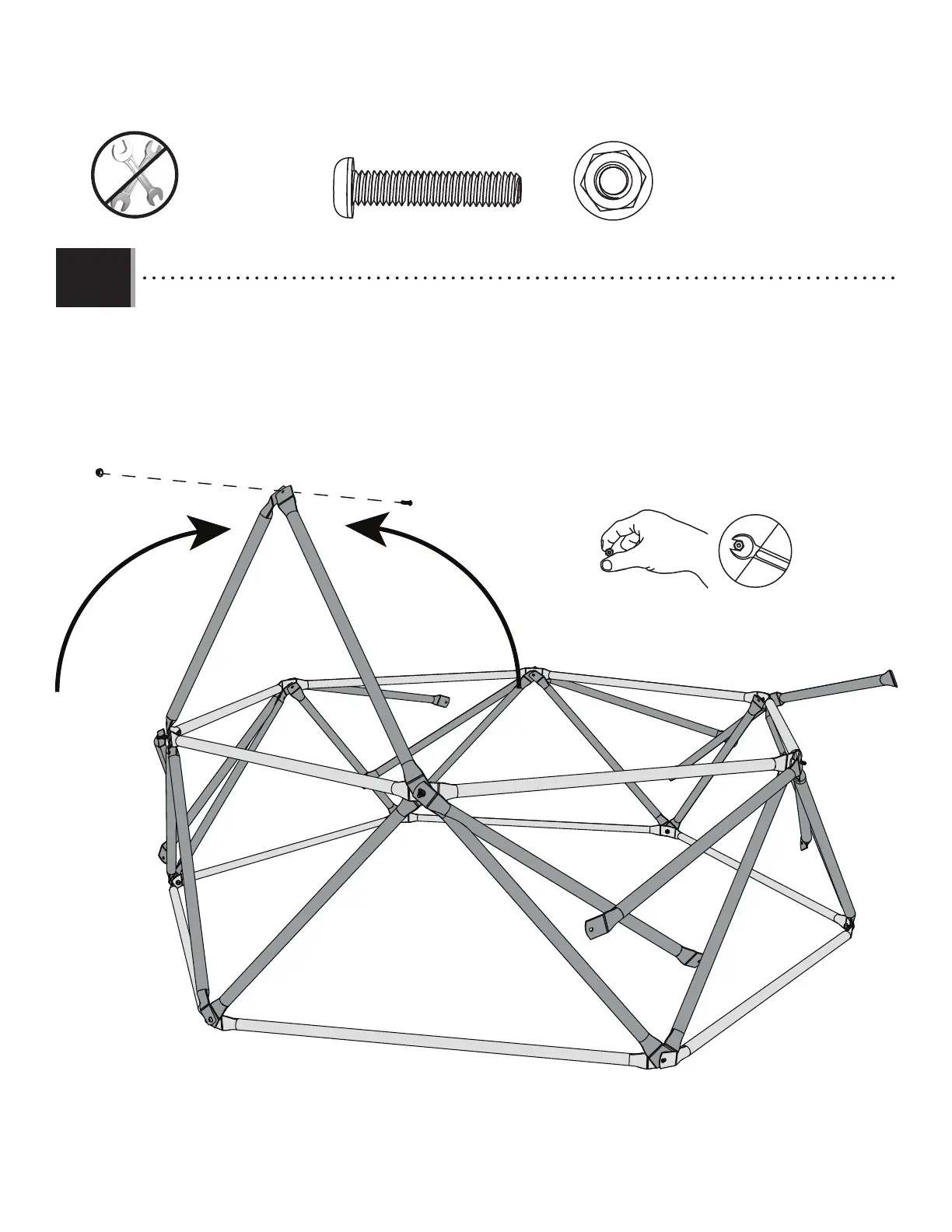

• Bring together two of the blue tubes (GNF) by swinging them into an upright position and secure them with the
hardware indicated. Only loosely thread the fl ange nut. It will be removed in a later step to add more tubes.
• Rassemblez deux destubes bleus (GNF)en les basculant en position verticale et fi xez-les avec la quincaillerie
indiquée. Ne vissez que légèrement l'écrou à bride. Il sera enlevé ultérieurement pour ajouter d'autres tubes.
• Una dos de los tubos azules (GNF) balanceándolos para llegar a una posición vertical y fíjelos con el herraje
indicado. Enhebre únicamente la tuerca de brida sin apretar. La misma será retirada en un paso posterior para
agregar más tubos.
GAU (x1)
GAW (x1)
GNF GNF
