Important things to note:

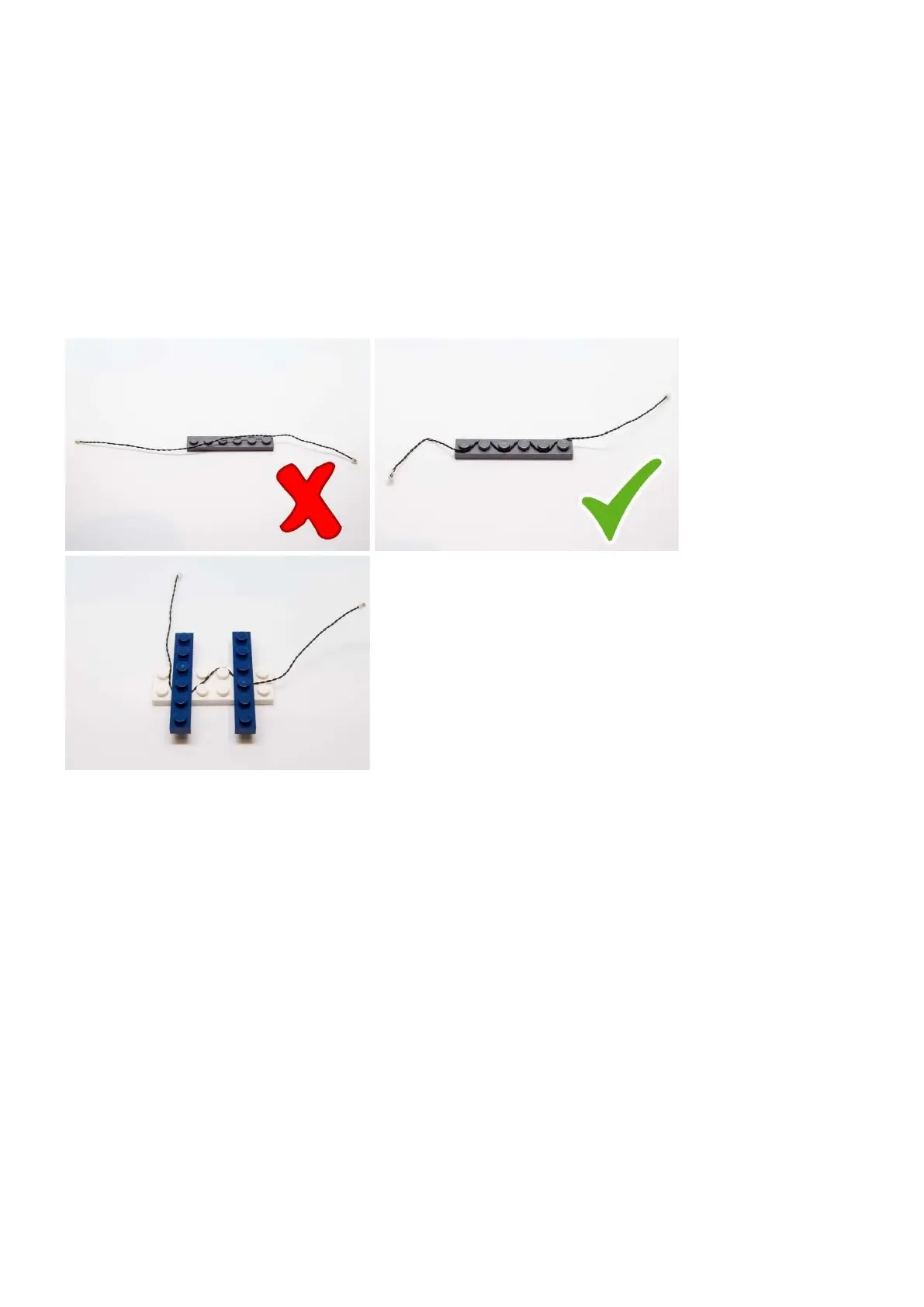

Laying cables in between and underneath bricks
Cables can fit in between and underneath LEGO® bricks, plates, and tiles
providing they are laid correctly between the LEGO® studs. Do NOT forcefully
join LEGO® together around cables; instead ensure they are laying
comfortably in between each stud.
CAUTION: Forcing LEGO® to connect over a cable can result in damaging
the cable and light.
Connecting cable connectors to Expansion Boards
Take extra care when inserting connectors to ports of Expansion Boards.
Connectors can be inserted only one way. With the expansion board facing up,
look for the soldered “=” symbol on the left side of the port. The connector side
with the wires exposed should be facing toward the soldered “=” symbol as
you insert into the port. If a plug won’t fit easily into a port connector, do not
force it.
