Connecting Micro Cable connectors to Micro
Expansion Board Ports
Take extra care when inserting the micro connectors to micro ports of Micro
Expansion Boards. Connecting Micro Bit Lights to Micro Expansion Boards is
similar to connecting lights and cables to Strip Lights. With the expansion

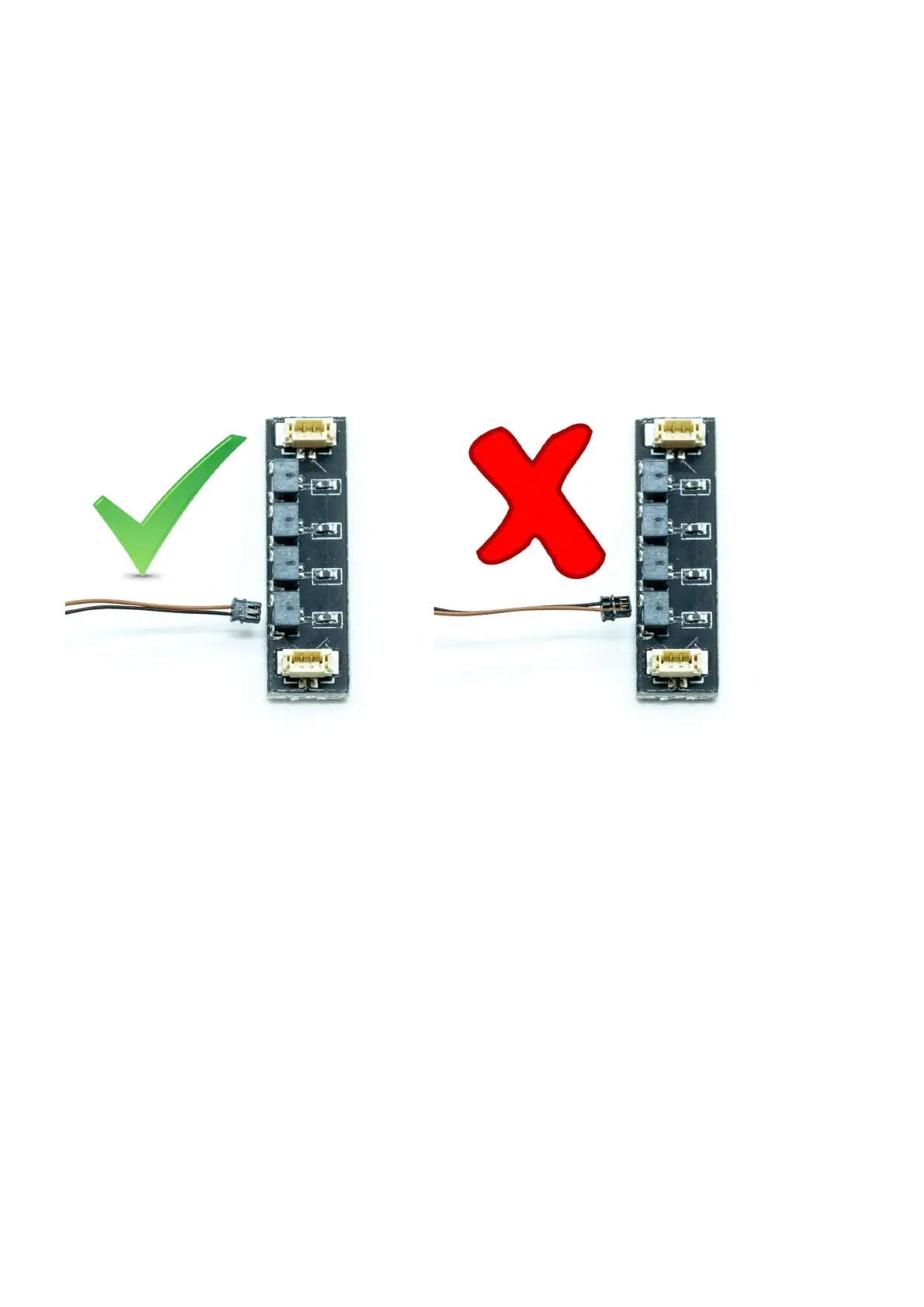

board facing up, ensure the side of the connector with the wires exposed is
facing down. If a plug won’t fit easily into a port connector, do not force it. Use
your fingernail to push the plastic part of the connector to the micro port.
Installing Bit Lights under LEGO® bricks
and plates.
When installing Bit Lights under LEGO® pieces, ensure they are placed the
correct way up (Yellow LED component exposed). You can either place them
directly on top of LEGO® studs or in between.
