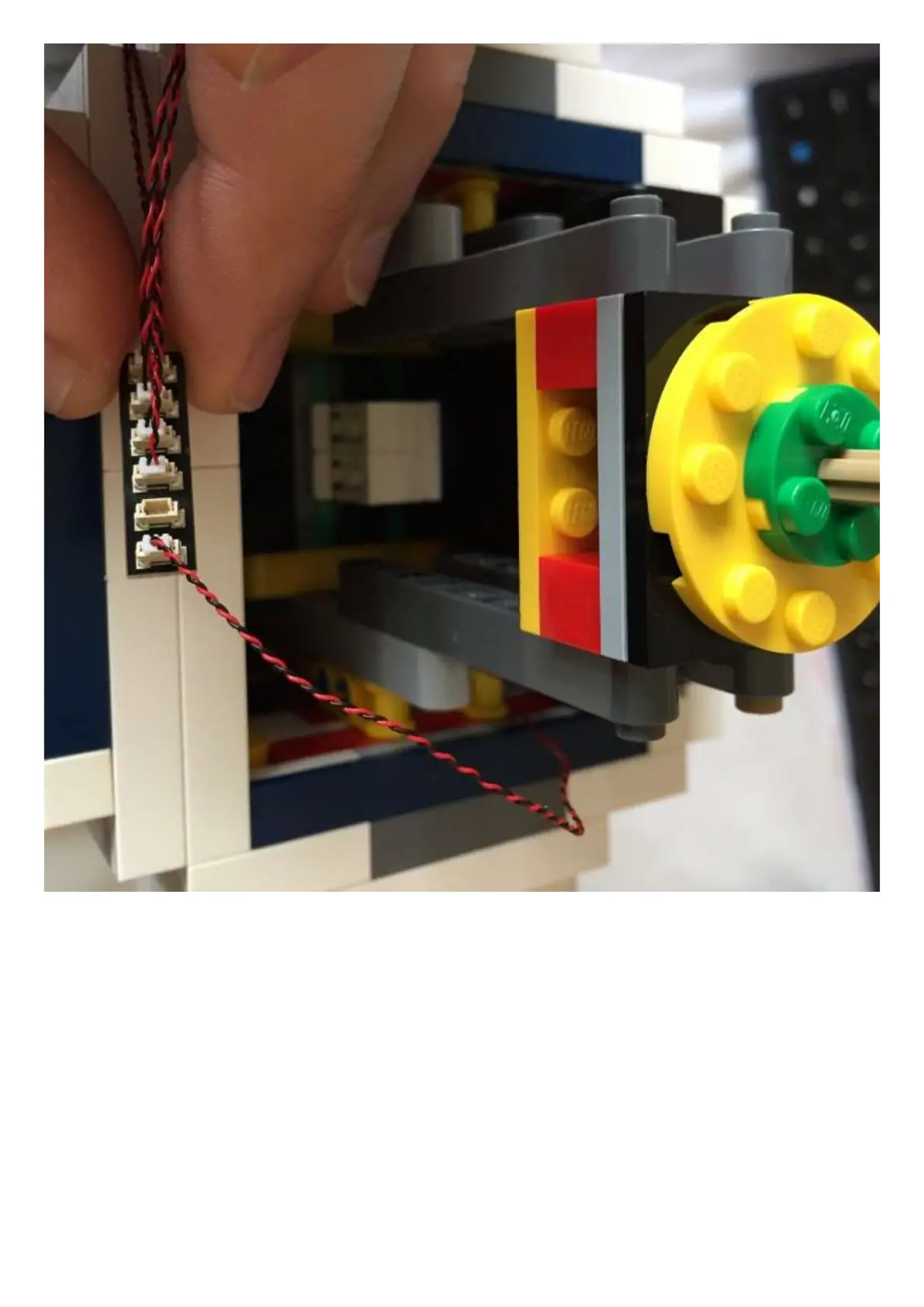

You’ll see that there is an excess of wire from the bit lights to the 1:4 expansion adaptor.
You can gather these up in whatever way you choose. One way is to wrap the wires
around the centre pieces in R2 as seen below:
