Light Rider LR512 - Connectivity; Live Use with a Computer; Light Rider App Live Use with a Tablet

Page 2
V 1.5
External HE10
Universe 1
DMX Chip
SP485ECP-L
MAX485CPA+
ADM485JNZ
Universe 2
DMX Chip
Internal HE10
OR
WiFi
DMX
(2 Universes)
USB Type-C
DMX
(1 Universe)
POWER
AC/DC ADAPTOR
5V-5.5V
POWER1 PSU
USB Type-C
P1 PORT 1
P2 PORT 2
P3 PORT 3
P4 PORT 4
P5 PORT 5
P6 PORT 6
P7 PORT 7
P8 PORT 8
GND Ground
P8 P7 P5 P3 P1
GND P6 P4 P2
External HE10
1 Ground
2 Dimmer
3 DMX1+
4 PREVIOUS
5 DMX1-
6 NEXT
7 Zone
8 LED DMX
9 VUSB
10 LED USB
2 4 6 8 10
1 3 5 7 9
Internal HE10
FRONT
REAR
USB-C
WiFi antenna
8 dry contact ports
Universe #1
1 DMX1 ground
2 DMX1 data-
3 DMX1 data+
Universe #2
1 DMX2 ground
2 DMX2 data-
3 DMX2 data+
1
3
2
1
2
3
WiFi
www.lightrider.com
Light Rider WiFi & USB-DMX Interface
Ref. LR512
© Nicolaudie Group 1989-2019. All rights reserved. We reserve the right without notice to amend the technical information and specications.
Technical datasheet Revision date 26 June 2019

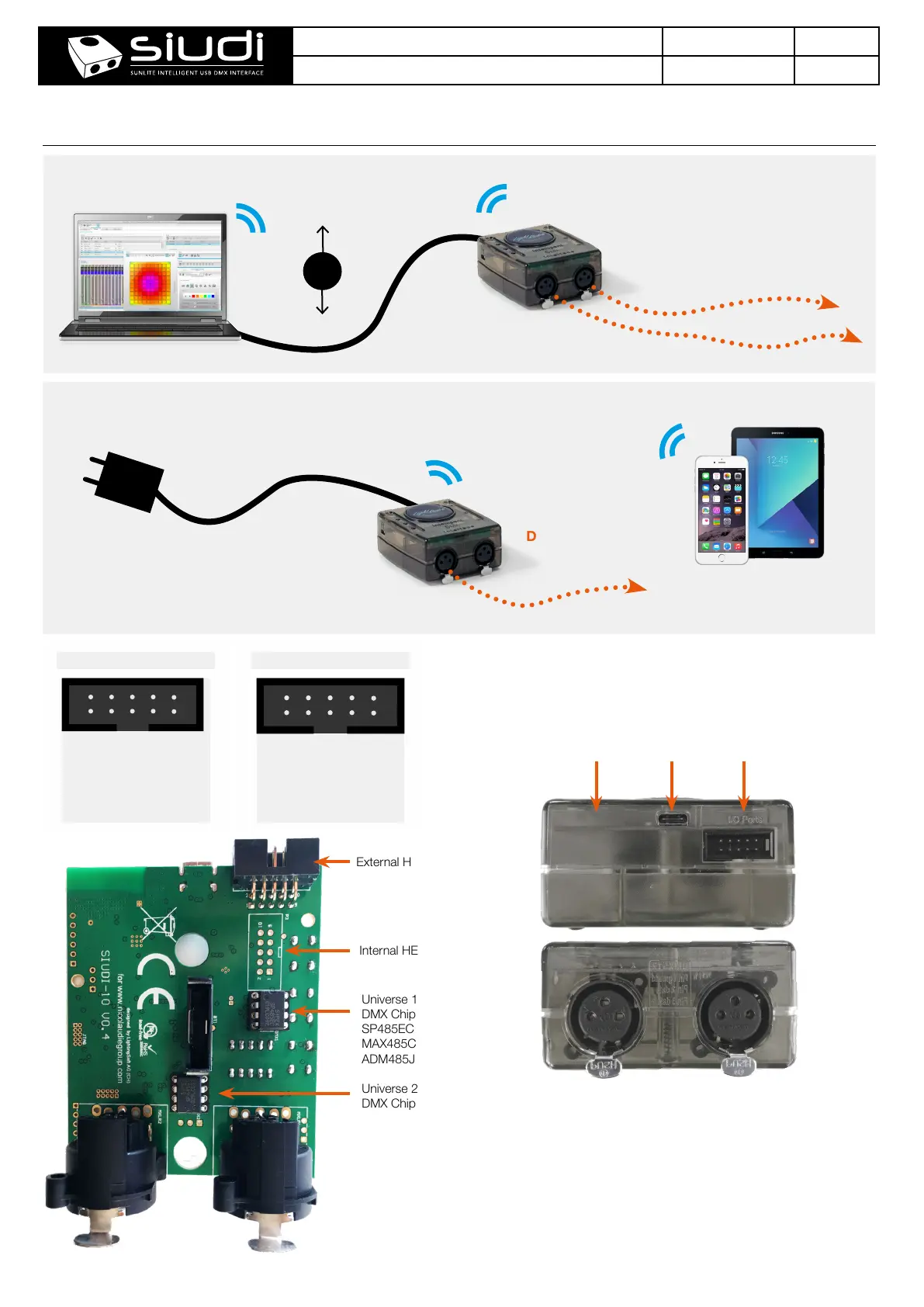

CONNECTIVITY
Live use with a computer
Light Rider app live use with a tablet
PC or Mac running the software
iPad, Android
