Light LIGHT-CONTROL 512 - Page 2

DMX OUT FOOTSWITCHEXT 1POWER EXT 2
DESIGNED & MADE IN EUROPE
12VDC
2000mA
DMX OUTEXT 1/2
DESIGNED & MADE IN EUROPE
UE
PLUG
UK
PLUG
US
PLUG

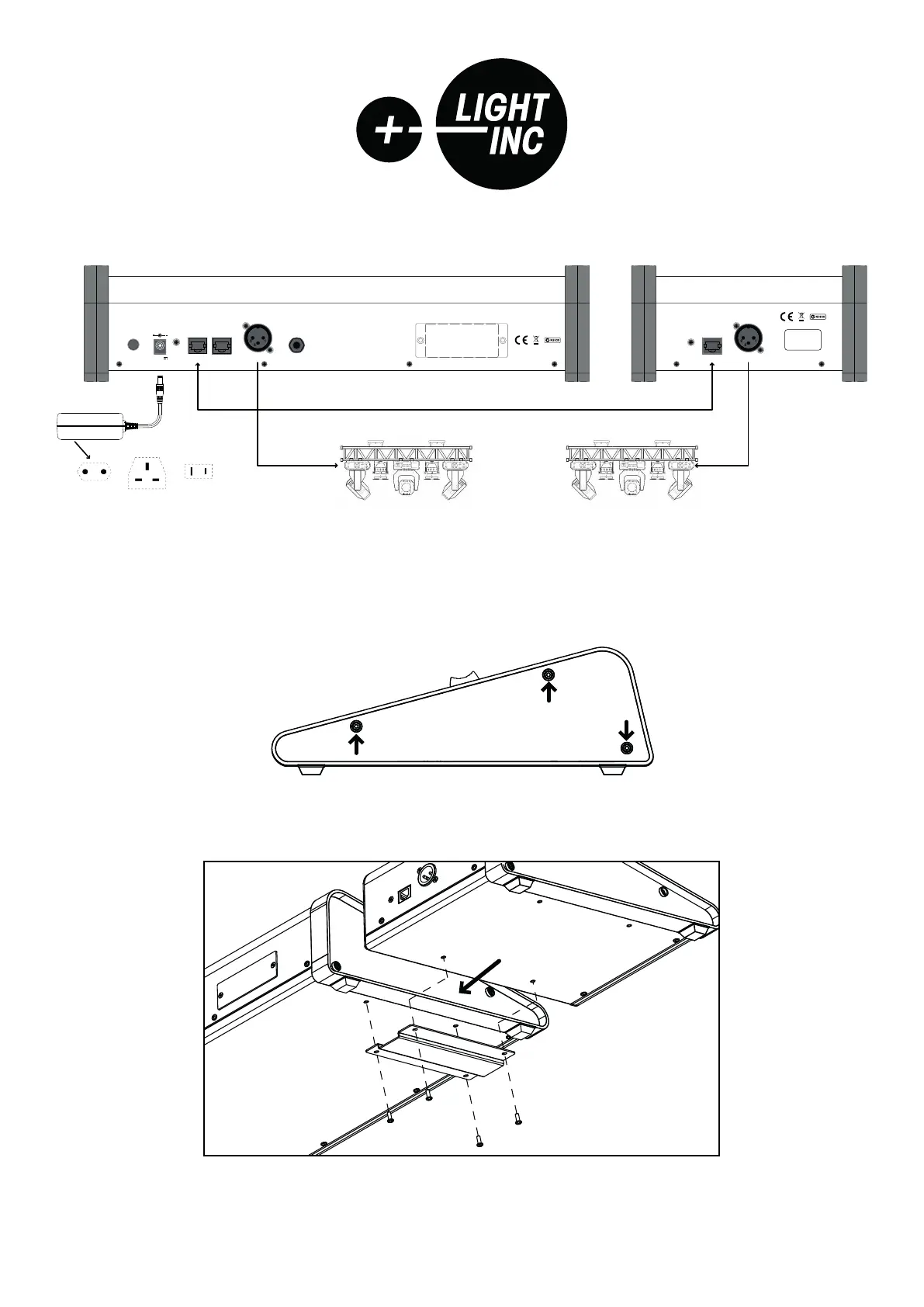

QUICK CONNECTIONS
LIGHT-CONTROL 512 & LIGHT-CONTROL EXTENSION FIXING
With a phillips screwdriver remove the 3 screws and the right plasc side of LIGHT-CONTROL EXTENSION.
Fix the LIGHT-CONTROL EXTENSION to the LIGHT-CONTROL 512 le side using the supplied plate and four screws.
www.LIGHT-INC.eu
