Always secure the device with a suitable safety rope when it is mounted overhead (mounting
height >100 cm).
Only safety ropes and quick links in accordance with DIN 56927, shackles in accordance with
DIN EN 1677-1 and BGV C1 chain binders can be used. The safety ropes, quick-connect links,
shackles and chain binders must be sufficiently dimensioned and correctly applied on the basis of
the latest industrial safety regulations (e.g. BGV C1, BGI 810-3).

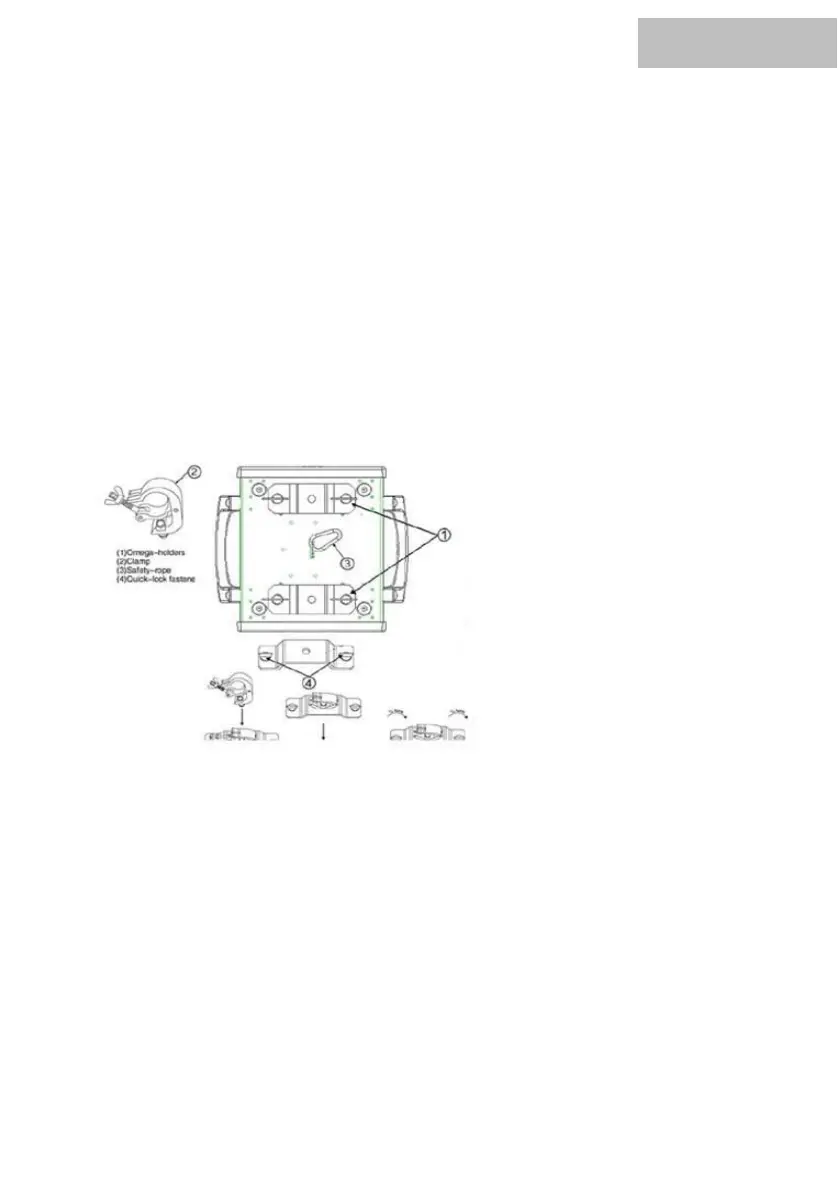

Hook the quick-release link into the hole provided in the base plate. Guide the safety rope over
the crossbar or a secure fixing point. Hook the end into the quick-release link and tighten the
locking nut firmly.
The maximum drop distance must not exceed 20 cm.
A safety rope that has been subjected to a fall load or has been damaged may no longer be used
as a safety rope.
