2.2 HANDLEBAR ADJUSTMENT:
A) To raise the bars, loosen the Quill bolt with a 6mm Allen
wrench. Then tap down to loosen the quill wedge.
B) Adjust the handlebars up or down so that there is
approximately 1/2 inch of clearance between your knees
and the handlebars (see Fig. 2-1).
C) Verify the handlebars are at right angles to the front wheel,
then tighten the Quill bolt to 13-22 foot pounds.
D) Slide the cable housing on the stem up or down to prevent any
tight cables during turning.

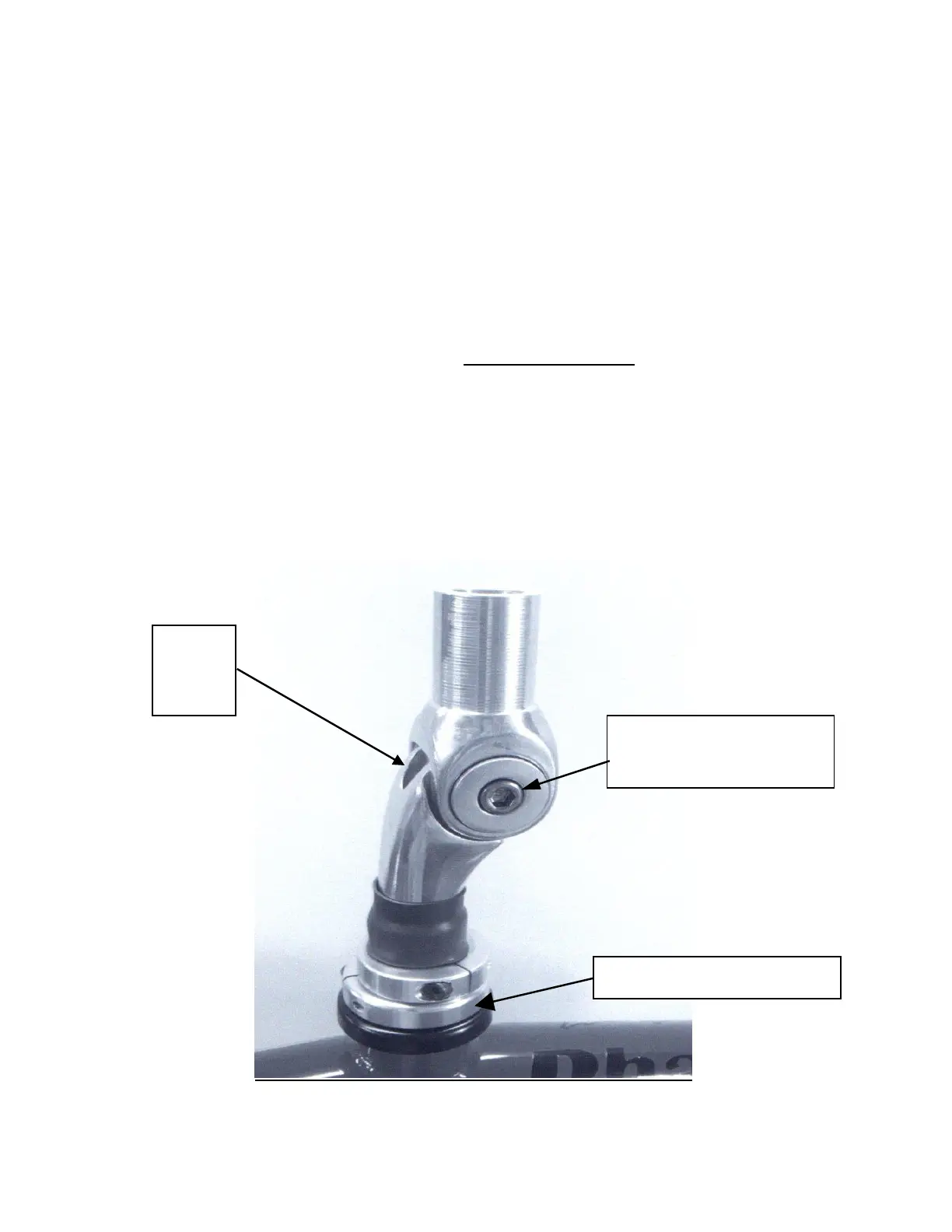

E) At this point you can adjust the handlebars forward or rearward
using the tilt mechanism, then repeat steps A) thru D) above
as needed (see Fig. 2-2).
FIG. 2-2
