I) Front shifter connection/ adjustment:
Rotate shifter until cable is fully released and thread cable to
Derailleur. Figure 1-2 shows the cable installation for the front
derailleur.
J) Install the pedals.
Note:
The left side pedal has reverse (left hand) threading.
K) Unroll and install chain, see Figure 1-3 for proper chain routing.
Connect chain using Superlink.
L) Re-check the headset, brakes, and derailleurs for proper
adjustment and operation.

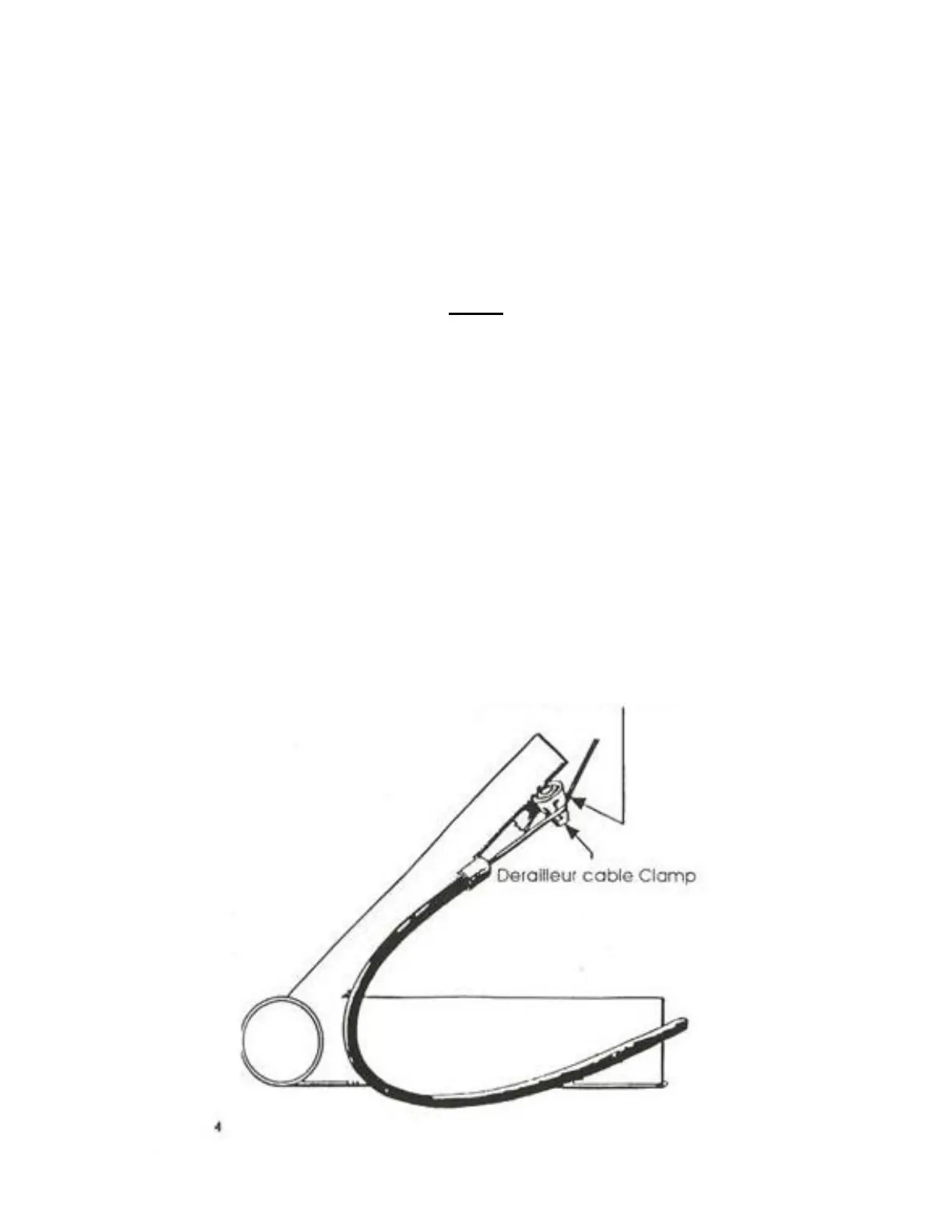

FIG. 1-2
