The LightObject Motorized Z Table/Bed is a mini-powered Z-table/bed designed specifically for the "k40" small desktop CO2 laser machine. This unit is provided as a kit, requiring assembly by the user, and its primary function is to enable height adjustment for the laser bed. This adjustability is crucial for achieving better cutting or engraving results by allowing the user to optimize the focal distance between the laser and the material. The manual provides comprehensive instructions for successfully assembling the kit and connecting its wiring.

Function Description:

The core function of the Motorized Z Table/Bed is to provide precise vertical movement of the work surface within a CO2 laser machine. This motorized adjustment allows users to easily change the distance between the laser head and the material being processed. This is particularly important for:

Focusing: Different materials and thicknesses require specific focal lengths for optimal cutting and engraving. A motorized Z-table allows for fine-tuning of the focus, ensuring a clean and efficient laser interaction with the material.
Material Thickness Accommodation: The ability to raise or lower the bed enables the machine to accommodate a wider range of material thicknesses. Without this feature, users would be limited to materials that fit within a fixed focal plane.
Workflow Efficiency: Motorized adjustment is significantly faster and more precise than manual methods, improving overall workflow efficiency, especially when working with multiple materials or designs that require varying focal settings.
Enhanced Engraving Quality: For engraving, precise Z-axis control can help maintain consistent engraving depth and quality across the entire work area, compensating for any slight unevenness in the material or the machine itself.

Important Technical Specifications (Derived from Assembly Instructions):

While explicit technical specifications like dimensions or motor power are not detailed, the manual provides insights into the components and their arrangement, which indirectly reveal certain technical aspects:

Frame Material: The frames (bottom and top) are described as "Blue," suggesting they are likely made of anodized aluminum, a common material for laser machine components due to its light weight, rigidity, and corrosion resistance.
Motor Type: The system utilizes a "2-phase motor" and a "stepper motor" with a "Microstep Driver (M4158)." This indicates a stepper motor system, known for its precise positional control, essential for accurate Z-axis movement. The M4158 driver suggests a microstepping capability, which further enhances the smoothness and resolution of the motor's movement, reducing vibrations and improving accuracy.
Drive Mechanism: The Z-table employs a belt-driven system with threaded rods. The belt ("H") connects the stepper motor to a pulley system, which in turn drives four threaded rods ("G"). These rods pass through bearings ("J") and T-nuts, providing the vertical motion for the bed. This combination of belt and threaded rods offers a good balance of speed and precision for Z-axis movement.
Support Structure: The bed ("C") is supported by four T-nuts, which are adjusted along the threaded rods. The importance of these T-nuts being "LEVEL" and having "enough space underneath" highlights the critical role of proper alignment for stable and smooth operation.
Assembly Components: The kit includes:
- 1 Bottom Frame (Blue)
- 1 Top Frame (Blue)
- 1 Bed
- 1 Belt-tensioner
- 4 poles
- Screws (F1, F2, F3, F4)
- 1 motor bracket
- 4 Threaded-rods with T-screws and nut
- 1 Belt
- 1 Stepper Motor
- 8 Bearings
- 4 Washers
- 1 Allen key
- Spare parts This comprehensive list of components indicates a robust and well-engineered system designed for durability and functionality.

Usage Features:

The primary usage feature is the motorized height adjustment, which directly impacts the versatility and performance of the laser machine.

Precise Height Control: The stepper motor and threaded rod mechanism allow for very fine adjustments to the bed height, enabling precise focusing for different materials and thicknesses.
Easy Integration: Designed to "perfectly fit the 'k40' small desktop CO2 laser machine," indicating a plug-and-play or easy-to-integrate solution for this specific laser model.
Improved Cutting and Engraving: By allowing optimal focal distance, the Z-table directly contributes to higher quality cuts (cleaner edges, deeper penetration) and more detailed engravings (sharper lines, consistent depth).
User-Adjustable Belt Tension: The inclusion of a belt-tensioner ("D") allows users to adjust the tension of the drive belt, which is crucial for maintaining smooth and accurate movement and preventing slippage over time.

Maintenance Features:

While the manual primarily focuses on assembly, some aspects imply ease of maintenance or design considerations for longevity:

Modular Design: The kit nature of the Z-table suggests a modular design, where individual components can be replaced if necessary. This simplifies potential repairs and extends the lifespan of the unit.
Accessible Components: The assembly process reveals that components like the motor, belt, and bearings are relatively accessible, which would facilitate inspection, cleaning, or replacement if wear and tear occur.
Adjustable Belt Tension: As mentioned, the belt-tensioner is a key maintenance feature, allowing users to periodically adjust the belt tension to ensure optimal performance and prevent premature wear of the belt or other drive components.
Clear Wiring Instructions: The detailed wire coloring connection instructions are crucial for correct initial setup and for troubleshooting electrical issues, should they arise during maintenance. The note about connecting PUL+ and DIR+ to +5V on the controller board provides essential guidance for proper electrical integration.
Robust Construction (Implied): The use of multiple screws for fastening components (e.g., motor bracket to frame, poles to frame) and the mention of "poles" and "threaded-rods" suggest a sturdy construction designed to withstand the operational stresses of a laser machine environment.

In summary, the LightObject Motorized Z Table/Bed is an essential upgrade for K40 laser users seeking to enhance the precision, versatility, and efficiency of their machines. Its kit-based design, precise stepper motor control, and robust mechanical components make it a valuable addition for achieving superior cutting and engraving results.

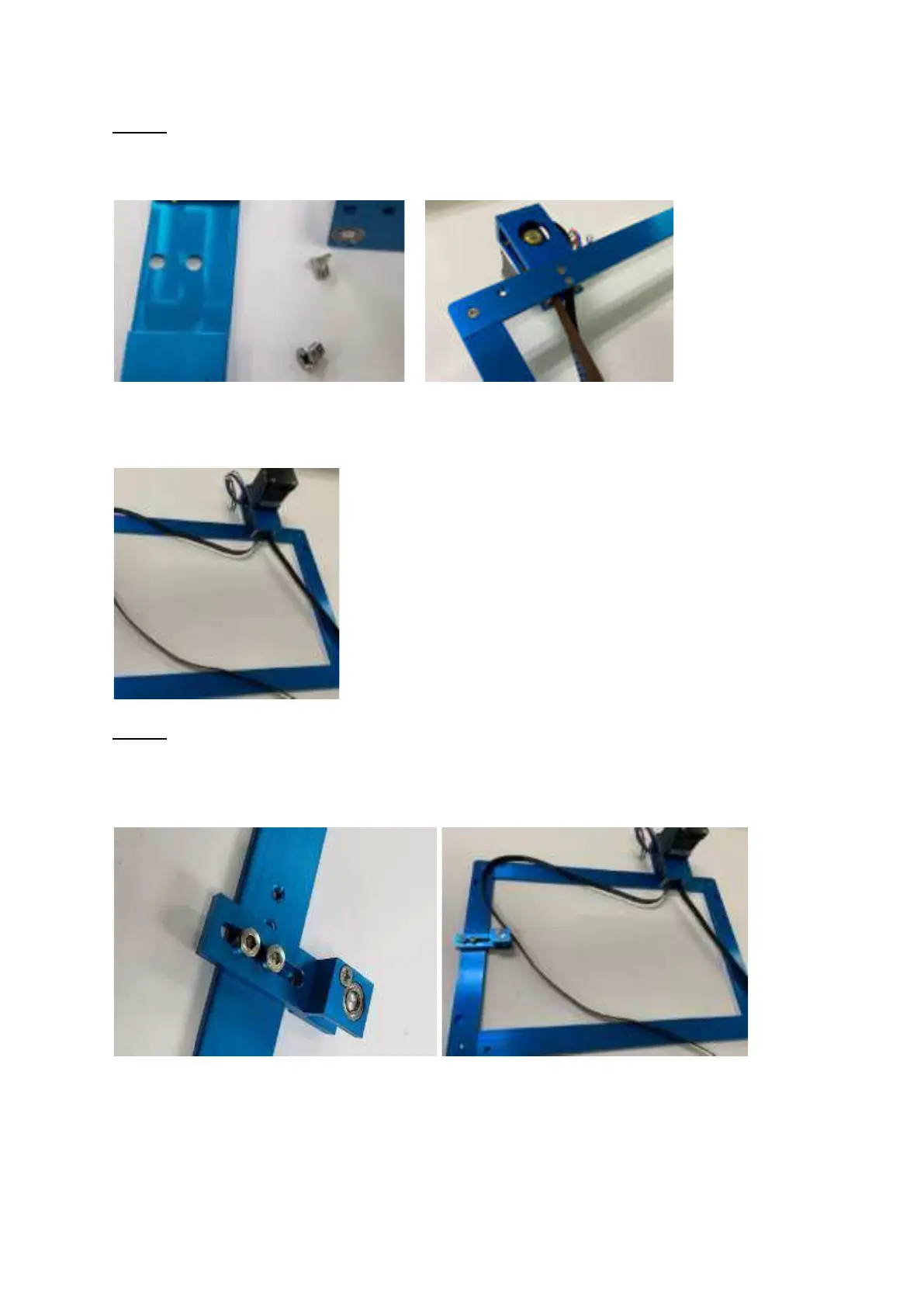

Lightobject Z-table/Bed - Step 5: Attach Motor Assembly
