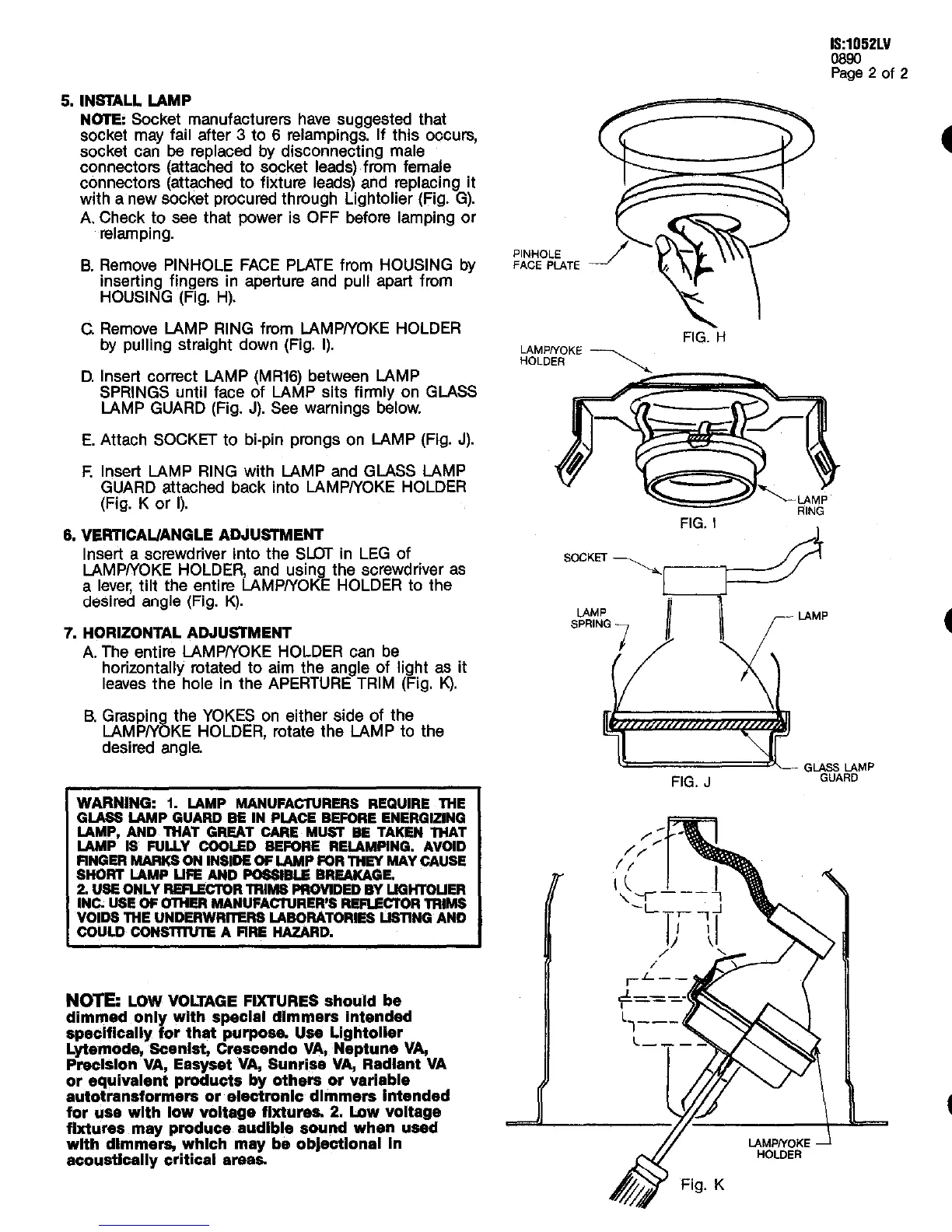

IS1052LV
0890
Page 2 of 2
5. INSTALL LAMP
NOTE Socket manufacturers have auggeeted that
eocket may fail after 3 to 6 relampings. If this occurs,
socket can be replaced by disconnecting male
connectors (attached to socket leads) from female
connectors (attached to fixture leads) and replacing it
with a new eocket procured through Lightolier (Fig. G).
A, Check to see that power is OFF before Iamping or
relamping.
B. Remove PINHOLE FACE PLATE fmm HOUSING by
inserting fingera in aperture and pull apari from
HOUSING (Fig. H).
G Remove IAMP RING fmm LAMPIYOKE HOLDER
by pulling straight down (Fig. l).
D. Insert correct LAMP (MR16) between LAMP
SPRINGS until face of LAMP sits firmly on GLASS
IAMP GUARD (Fig. J). See warninge below.
E. Attach SOCKET to hi-pin pmnga on LAMP (Fig. J).
E Insert LAMP RING with LAMP and GIASS LAMP
GUARD attached back into LAMP/YOKE HOLDER
(Fig. K or l).
6. VERTfCAL/ANGLE ADJUSTMENT
Insert a screwdriver into the SLOT in LEG of
lAMPIYOKE HOLDER, and ueing the screwdriver as
a lever, tilt the entire IAMPIYOKE HOLDER to the
desired angle (Fig. K).
7. HORIZONTAL ADJLKWMENT
A. The entire LAMP/YOKE HOLDER can be
horizontally rotated to aim the angle of light aa it
Ieavea the hole in the APERTURE TRIM (Fig. K).
B. Graspin the YOKES on either eide of the
8LAMP/Y KE HOLDER, rotate the LAMP to the
deeired angle.
NOIE LOW VOLTAGE FIXTURES should be
dimmed only with special dimmers intended
specifically for that purpoea Use Llghtolier
Lytemode, Scenist, Crescendo VA, Neptune VA
Praolslon VA, Easyaet VA, Sunrise VA, Redlent VA
or equivalent produots by others or verleble
autotraneformera or eleatronlo dlmmera intended
for uae with low voltege fixture% 2. fmw voltage
fixtures may produce audible sound whan ua6d
with dimme~ which may be ob}eotlonsl in
PINHOLE
FACE PLATE
LAMPNOKE
HOLDER
~\
FIG. H
FIG. I
FIG, J
1-
acoustically criticsl erea~
