Safety warning

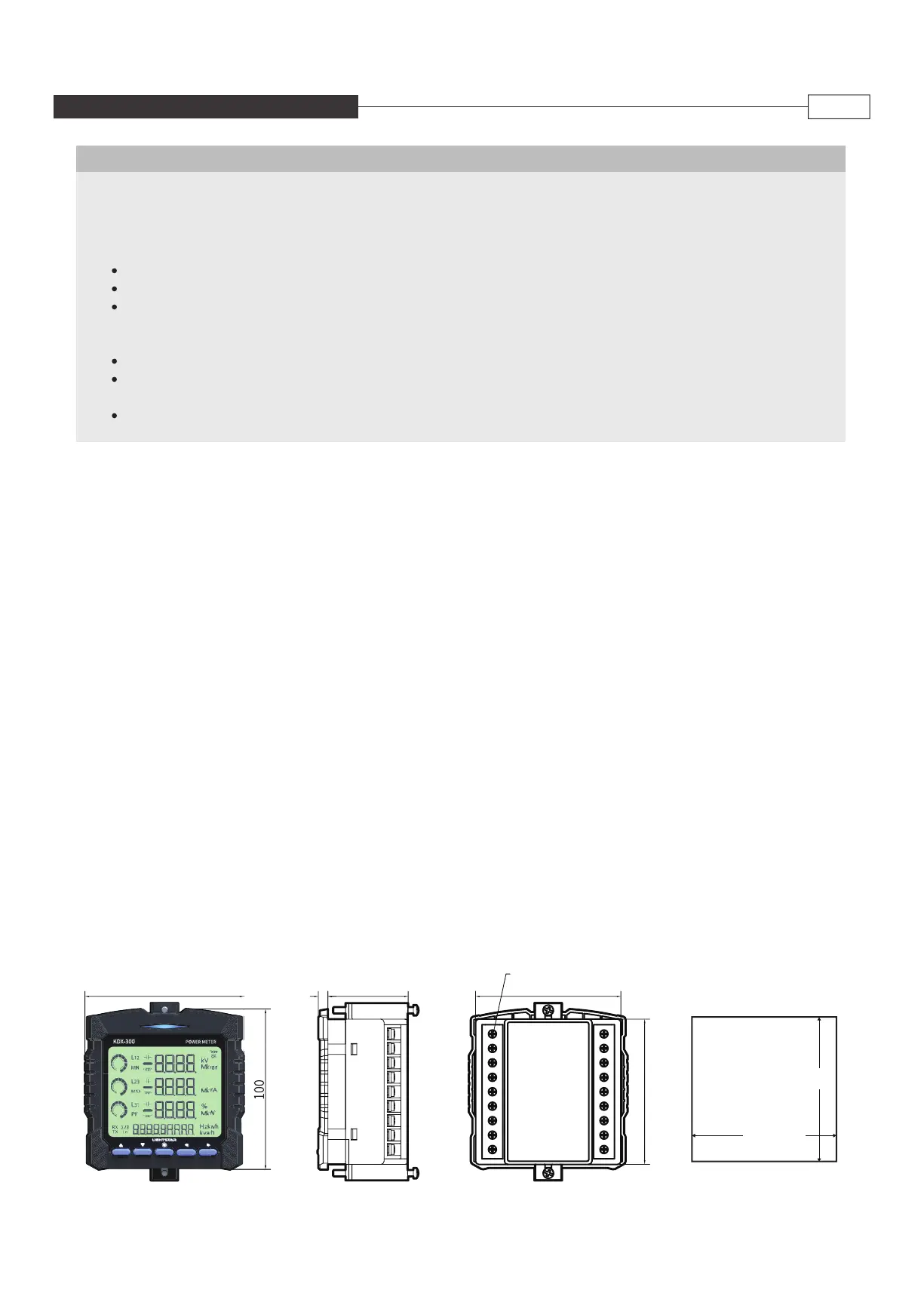

1.2 Dimensions
(1) During installation
Please be advised to avoid following severe conditions or equip with appropriate protection device in order to prevent
malfunctions.
Exposed to high electromagnetic field.
Located near circuit breaker, inverter, motor controller or frequently turned on/off power sources.
High temperature area, direct sunlight, chemical contaminated area, excessive vibration or excessive humidity.
(2) During cabling
Earthing point shall be located near this device as close as possible.
Please be advised to segregate power cable and control cable.
Otherwise, surge protection device shall be used at appropriate location.
Prior to cabling, be sure to check the designed aux power and connection diagram.
1.1 General
Chapter_1. General Introduction
Page.2
Function
Features
Safety warnings must be read and understood before the instrument is used.
KDX-300 can measure/display electric data of the system and transmit data via RS-485 communication.
This can measure voltage, current, power, energy, power factor, frequency, phase angle, harmonics.
●
Remote monitoring can be supported by RS-485 communication.
●
Easily recognized display with various electric data as per pages
●
Harmonics and phase angle can be displayed.
●
Compact size with DIN 96 x 96
Unit : mm
91.5±
0
1
91.5±
0
1
50
6
18-M3.5 BOLT
90.5
90.5
99
100
To Next Page
