Voice Tracking with Sennheiser TCC2

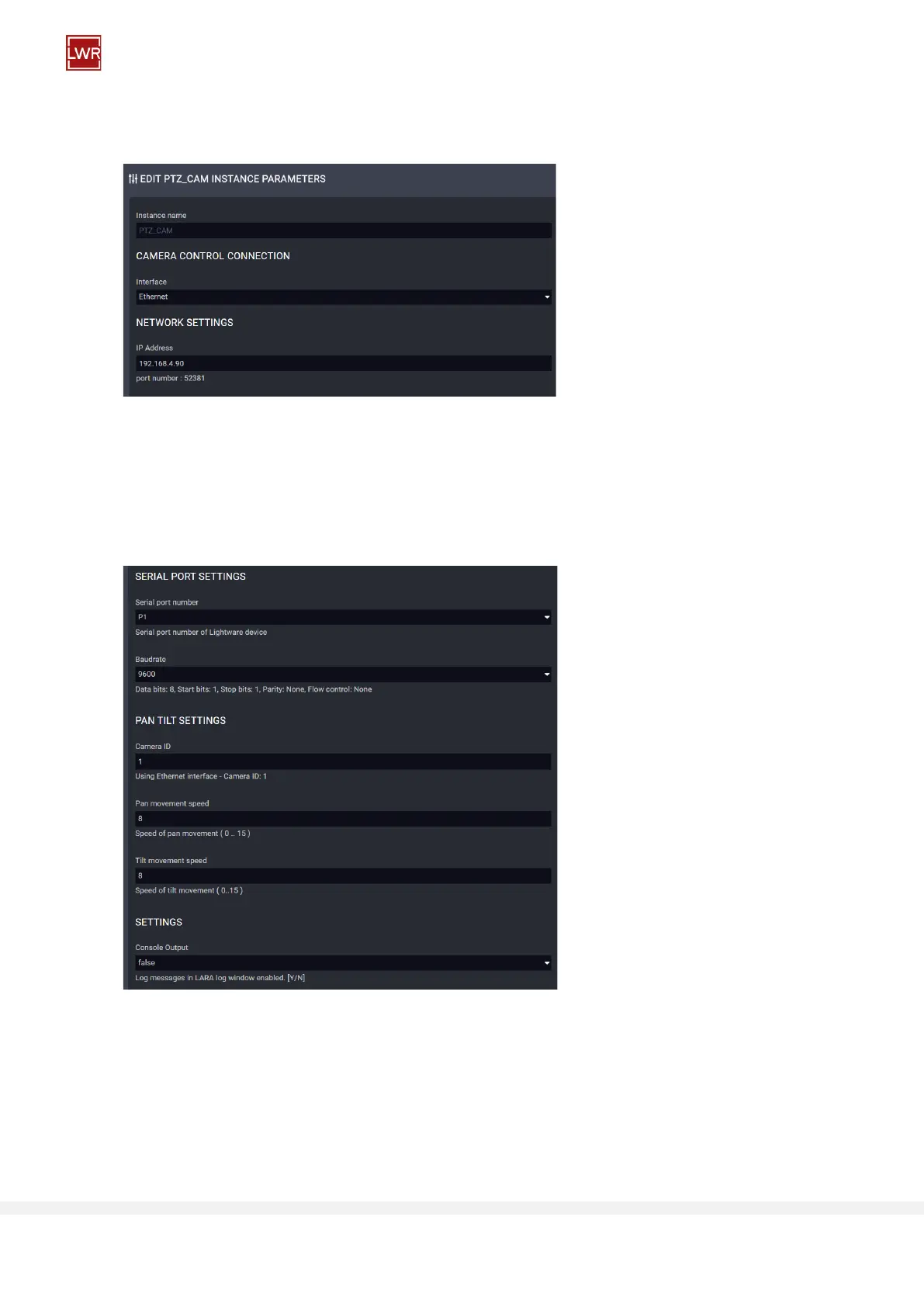

3.2.4. Setting parameters of PTZ_CAM instance:
It is possible to choose Ethernet (UDP) or RS232 control options.
In case of Ethernet set the IP address of the camera.
After choosing RS232 option set the baud-rate matching the camera settings and the RS232 port number of UCX series
matrix connected to the PTZ camera.
The PTZ movement speed can be adjusted in the PAN TILT SETTINGS. Speed settings are used during the manual
camera adjustments via PTZ camera panel.
Console output settings enables the LARA console log messages. It helps following the operation, and helps
debugging.

Lightware UCX Series Specifications

General

Category	Switch
Series	UCX Series
Dimensions	Varies by model
Weight	Varies by model
Video Resolution	Up to 4K UHD
Audio	Embedded audio
Control	RS-232, Ethernet, IR
Input Ports	HDMI, USB
Output Ports	HDMI
HDCP Support	HDCP 2.2
Network Interface	Ethernet
Power Supply	100-240V AC
Operating Temperature	0°C to 40°C (32°F - 104°F)
Storage Temperature	-20°C to 60°C
