4. Motor Housing Assembly
5. Blade Assembly
6. Blade Assembly to Motor

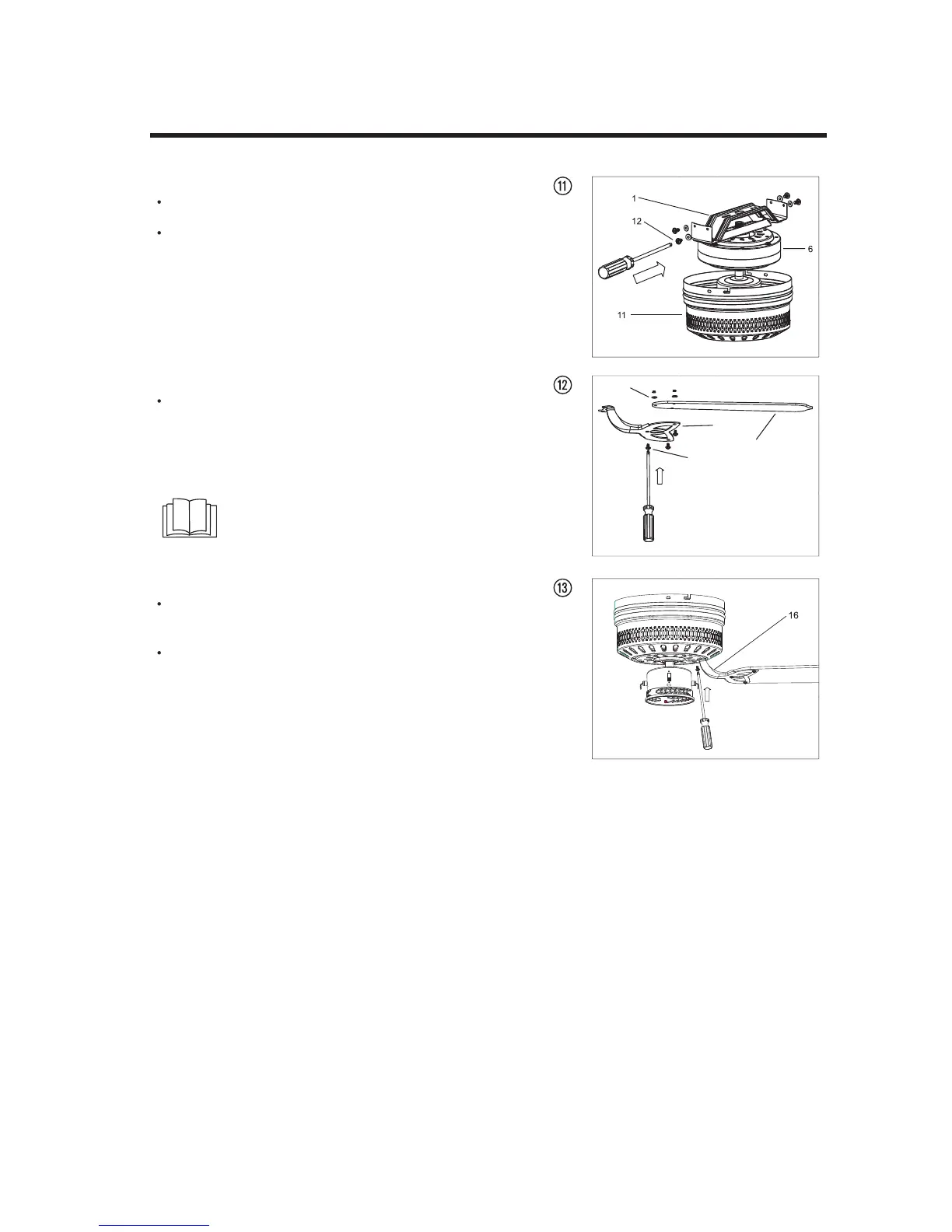

Remove the motor housing screws (12) and
washers from the mounting bracket (1).
Slide the motor housing (11) over the motor
assembly. Secure the sides of the mounting
bracket (1) with the motor housing screws (12)
(fig. 11).
Using the fan blade screws (14), flat washers and
hexagon nut (13), attach the fan blades (15)
between the fan blade brackets (16) with the
desired finished side face-down on the fan blade
brackets (fig. 12).
If there are plastic tabs shaped like bottle caps,
remove and discard them. These are stabilizers
that protect the motor during s
hipping.
Remov
e blade bracket screws (17) on the bottom
of the motor (6) and use them to attach the blade
assembly to the motor. Ensure the screws are
tightened (fig. 13).
14
13
15
16
Note:
This ceiling fan includes four dual-finished
blades (15). Depending on personal preference,
choose the side that best suits the decor or
furniture of the room.
10
INSTALLATION
To Next Page
