Page 18 of 32
How to mount the locking device (0705889)
To ensure optimal cable relief on the SMPS001/002 a locking device (0705889) should be used. Follow the guide below on
how to fix the locking device on the SMPS.

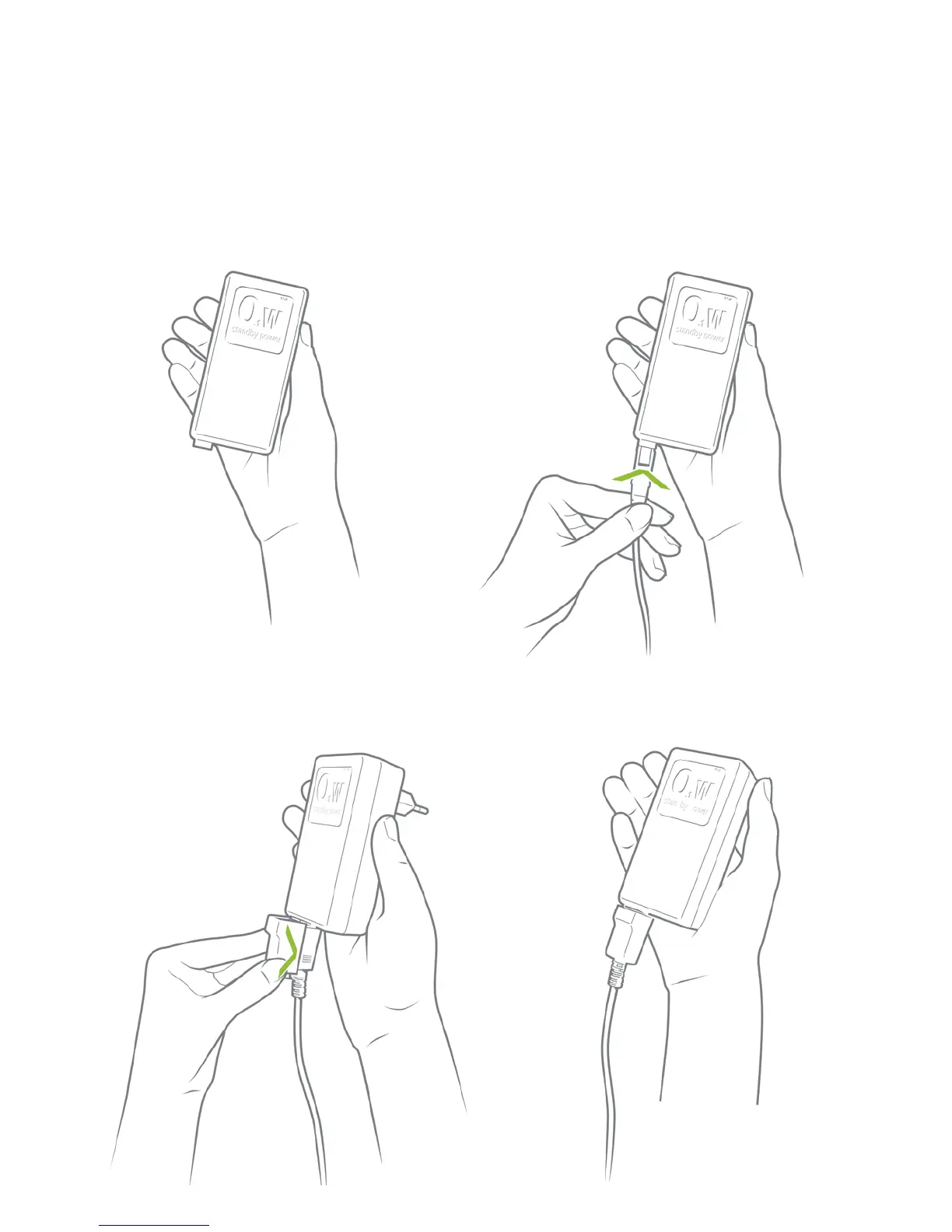

1. Take the SMPS 2. Plug the 2-poled DC cable in the SMPS
3. Slide the locking device on 4. The cable is now fully secured.
