Page 16 of 71
Mounting the DPG
The DPG series consists of four different desk panels in two different sizes. The DPG1K and the DPG1M are the
same size and the DPG1B and the DPG1C are the same size.
We recommend predrilling the holes for the DPG to ensure the same aligned position for all desks.
The two sizes share one hole in the hole pattern, which means three predrilled holes in the tabletop will make it
possible to mount both sizes of the DPG and all 4 versions.

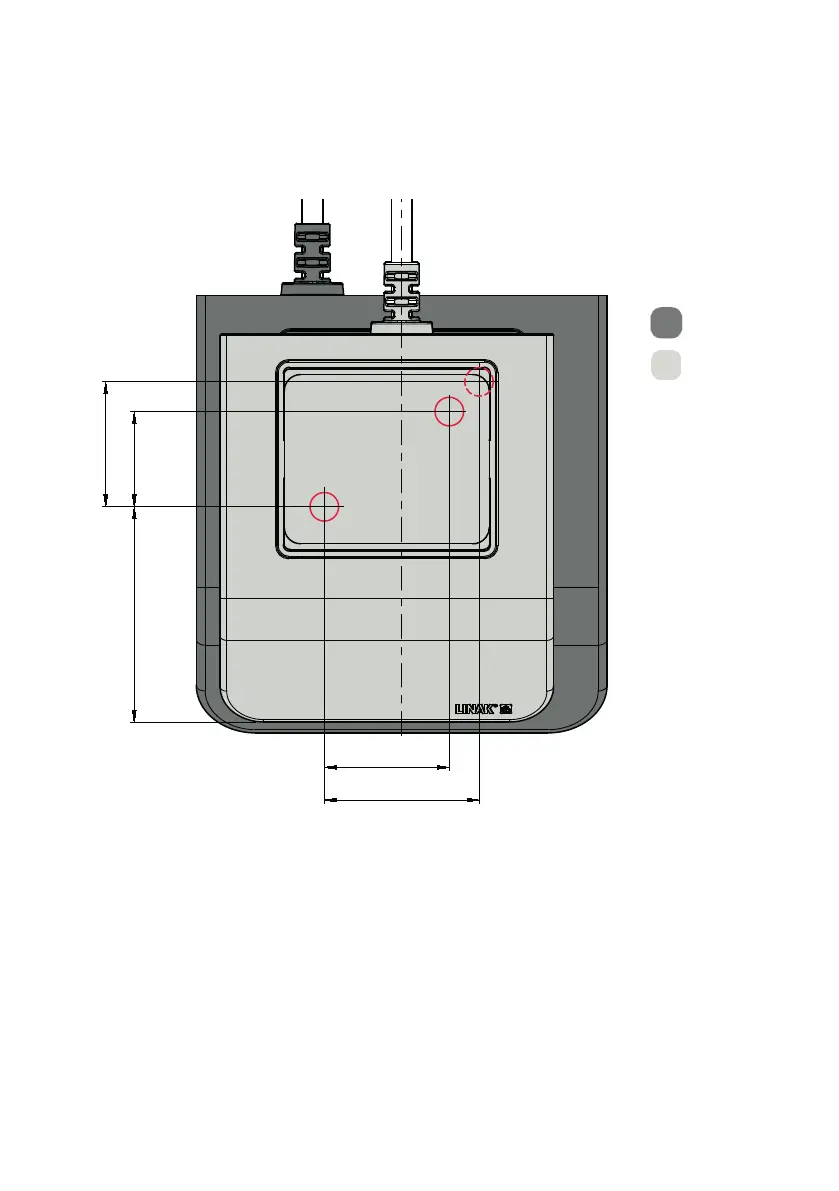

Figure 3: Hole pattern of the DPG sizes. The dashed line is the second hole of the DPG1B/C
Drawing No.: DPG_ASSEMBLY_ALL
36 16
21
21
26
Drawing No.: DPG_ASSEMBLY_ALL
DPG1B/C
DPG1K/M
