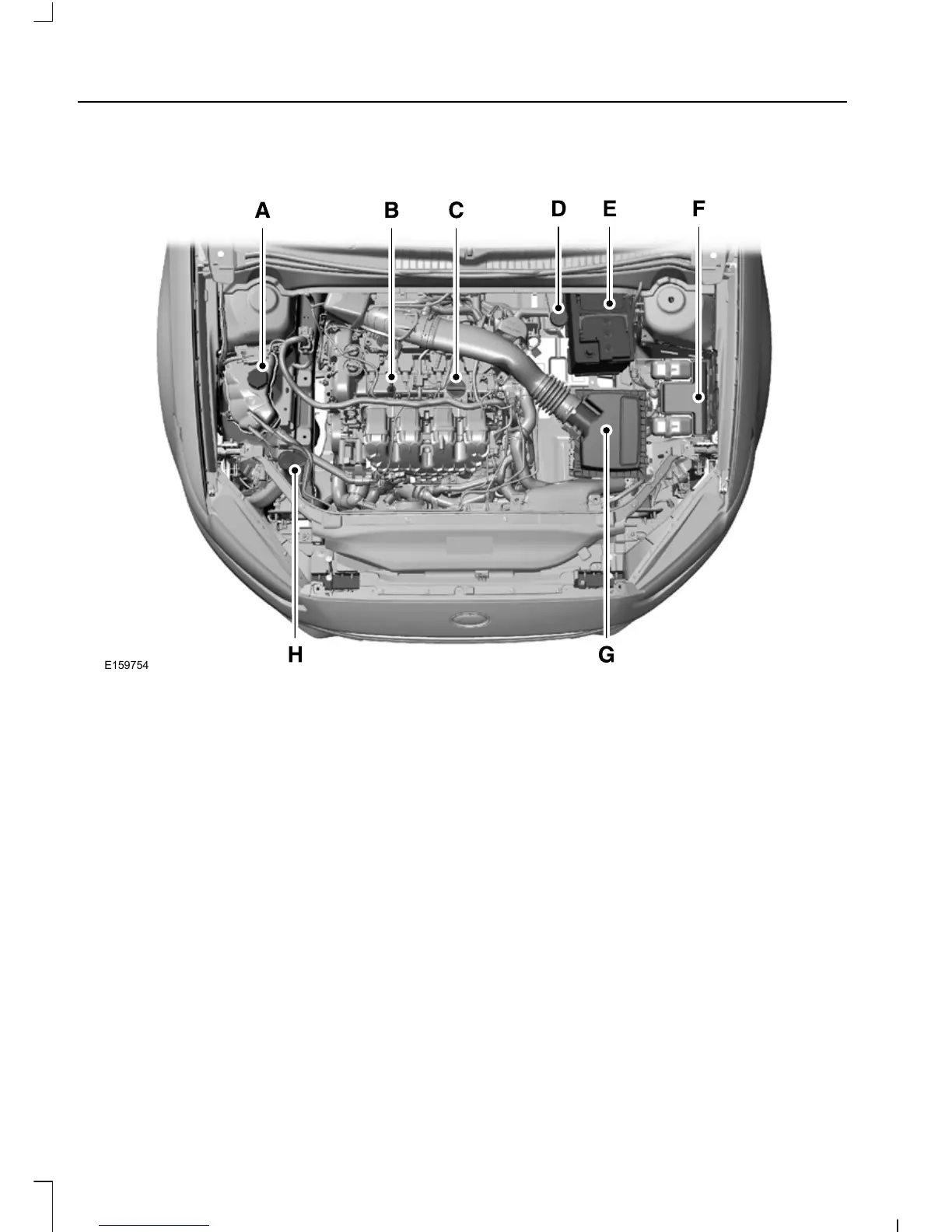

UNDER HOOD OVERVIEW - 2.0L ECOBOOST™

E159754

Engine coolant reservoir capA

Engine oil dipstickB

Engine oil filler capC

Brake fluid reservoir capD

BatteryE

Power distribution boxF

Engine air filter assemblyG

Windshield washer fluid reservoir capH

248

MKZ (CC9) , enUSA

Maintenance
