Form 404130
DO NOT TURN POINTER IN A
CLOCKWISE DIRECTION AS THIS
WILL DAMAGE METER.
The pointer can only be returned to
the zero stop in a counterclockwise
direction after delivery.
Inner circle indexes in full quart to sixteen
quarts.
Outer circle indexes in fourths of one quart.

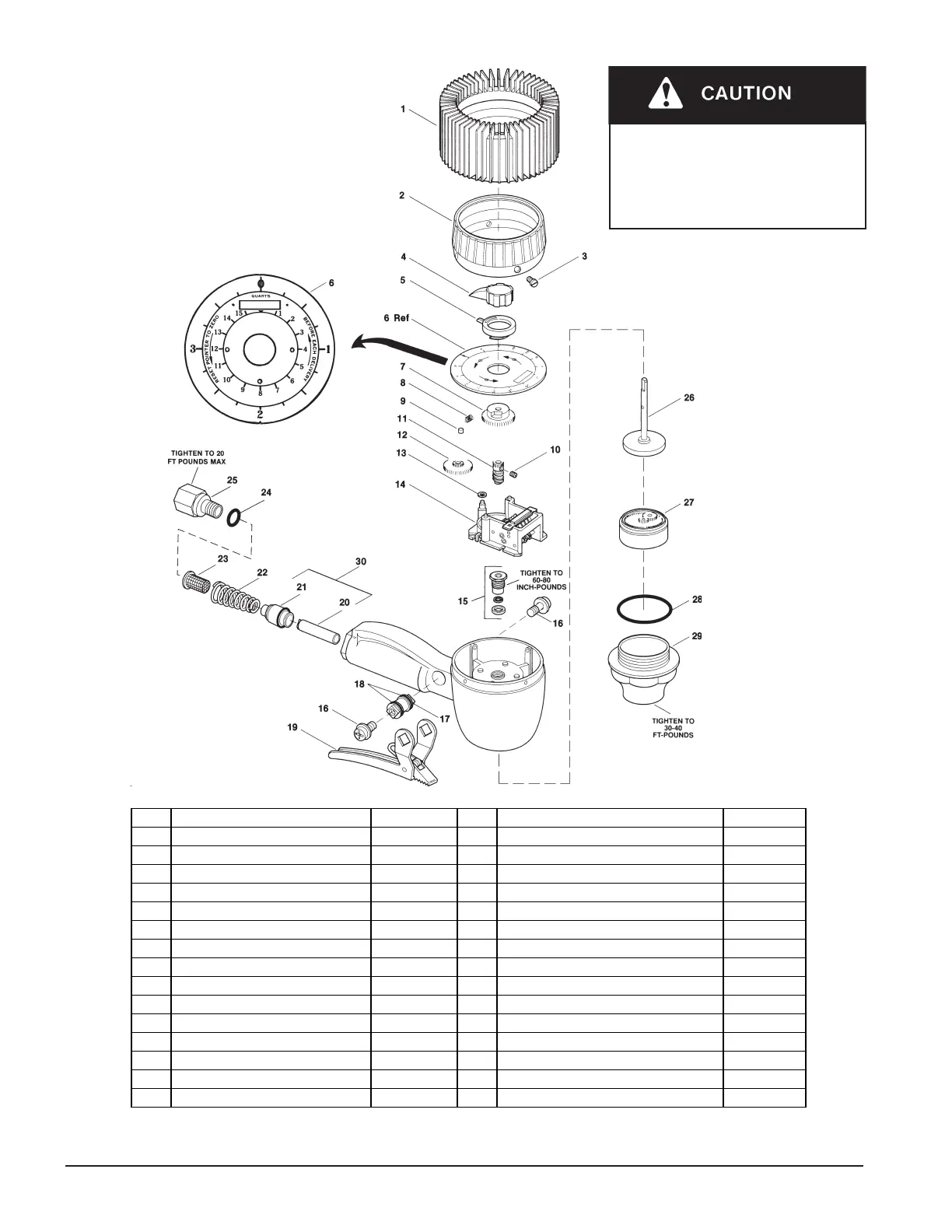

ITEM DESCRIPTION Part No. ITEM DESCRIPTION Part No.
1 *Shroud Protector 242911 16 Screw 68410-2 (2
2 Shroud 68410-12 17 Cam 68410-5
3 Shroud screw 66871 -5 (4) 18 0-ring 68410-4 (2
4 Knob assembly 242912 19 Valve trigger assembly 68410-1
5 Inner circle pointer 66871-53 20 **Valve sleeve assembly
6 Dial assembly 68410-26 21 **Valve seat assembly
7 Inner circle pointer cam 66871-50 22 Spring 69304-3
8 Clutch spring 66871-3 23 Screen 68410-27
9 Clutch roller 66871-4 24 0-ring 243176
10 Set screw 50541 25 Adapter 243175
11 Upper driving pawl worm gear 66871 -54 26 Upper driving pawl gear assembly 66871-111
12 Inner circle pointer gear 66871-17 27 Chamber & piston assembly 68410-15
13 Spacer 69304-23 28 Housing cap gasket 66871-12
14 Register assembly 69795-3 29 Housing cap 68410-14
15 Packing kit 237388 30 Valve Assembly (Buna-N) 271700
Service Parts
Quantity
* May be purchased separately
** See valve assembly item 30
