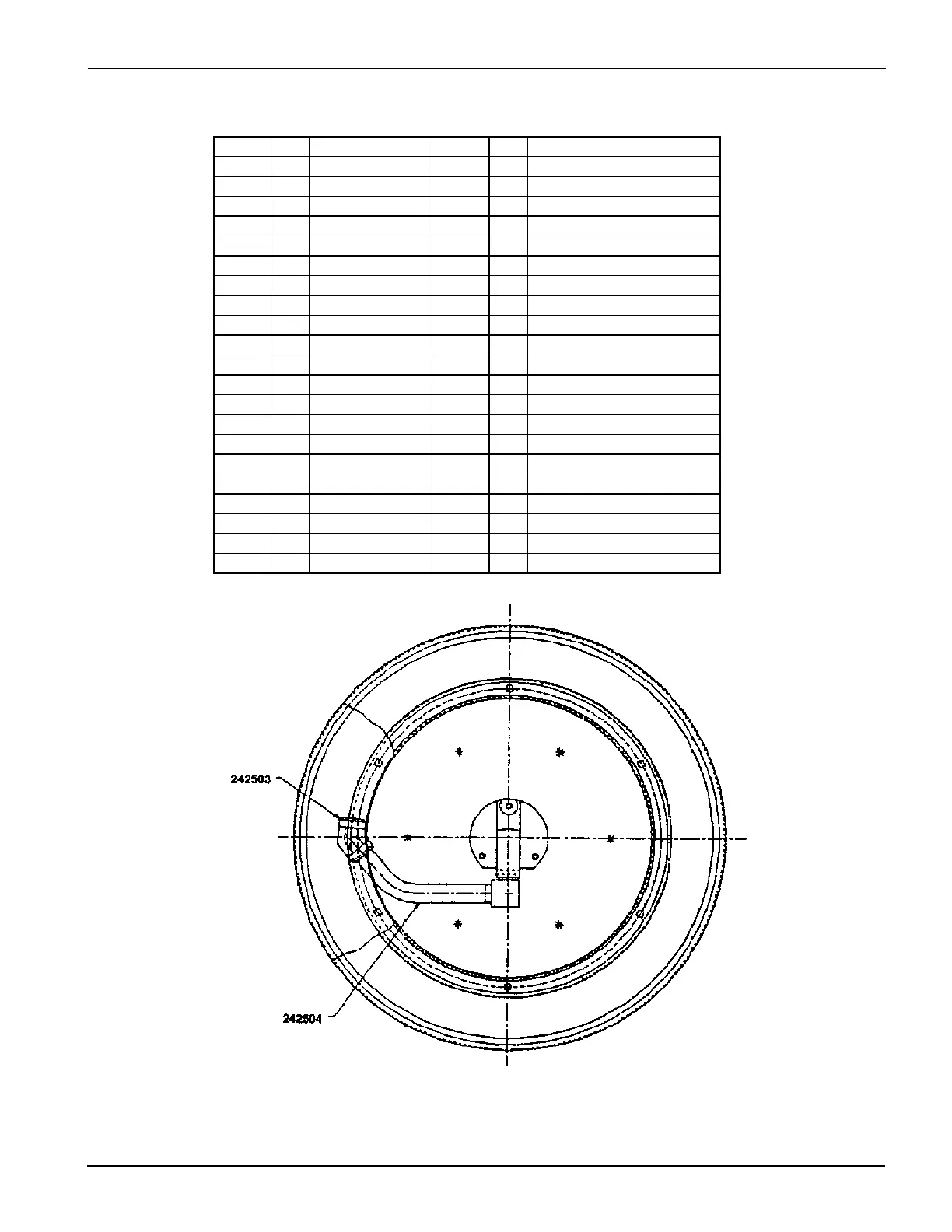

SERVICE PARTS (CONT)
PART QTY DESCRIPTION PART QTY DESCRIPTION
11839 1 Swivel adapter 237670 1 Arbor and ratchet casting
11840 1 Packing retainer 237671 1 V-ring seal
11841 1 Swivel stud 237673 1 V-ring seal
13162 1 Pin 237675 1 Axle
15674 2 U-keeper 237678 1 Outlet adapter
16392 1 Swivel nut 237680 1 Sheave assembly
31035 1 Gasket 237683 1 Latch pawl
35095 1 Swivel packing 237684 1 Swivel assembly
48217 1 Washer 237685 1 Swivel body
48263 1 Packing washer 237686 1 lnlet adapter
48264 2 Thrust washer 237690 1 Roller outlet arm assembly
48327 1 Washer 237892 1 Roller outlet assembly
48385 4 Shim washer 237695 1 Extension spring
50014 4 Hex head screw 237738 6 Carriage bolt
51010 10 Hex nut 237739 1 Carriage bolt
51022 7 Hex nut 247136 1 Hose clamp
51304 1 Lock nut 248493 1 Power spring assembly
66250 13 Ball 260389 2 Back-up ring
66316 1 Tru-arc 261187 2 0-Ring
68424 1 Tru-arc 272167 1 Hose Clamp
237656 1 Support asembly 272168 1 Hose Clamp
©
©
©
©
©
