TF 24 TF 230
Voltage range ............................ 2AC 19,2–28,8 V, 50/60 Hz AC 85–265 V, 50/60 Hz
DC 21,6–28,8 V
Power consumption
– during opening ........................ 2,5 W 2,5 W
– stand-by ................................. 1,5 W 1,5 W
For wire sizing ........................... 5 VA 5 VA
Connection ................................ Cable 1 m, 2×0,75 mm² Cable 1 m, 2×0,75 mm²
Operating angle, adjustable ...... Mech. limited to 95° Mech. limited to 95°
Torque at rated voltage
– motor ...................................... Min. 2 Nm Min. 2 Nm
– return spring ........................... Min. 2 Nm Min. 2 Nm
Direction of rotation ................... Optional through right or Optional through right or
left-hand installation L/R ........... left-hand installation L/R
Position indication ..................... Mechanical Mechanical
Running time
– motor ...................................... < 75 s (0–2 Nm) < 75 s (0–2 Nm)
– return spring ........................... < 25 s < 25 s
Degree of protection .................. IP 42 IP 42
Ambient temperature range ...... -30 to +50°C -30 to +50°C

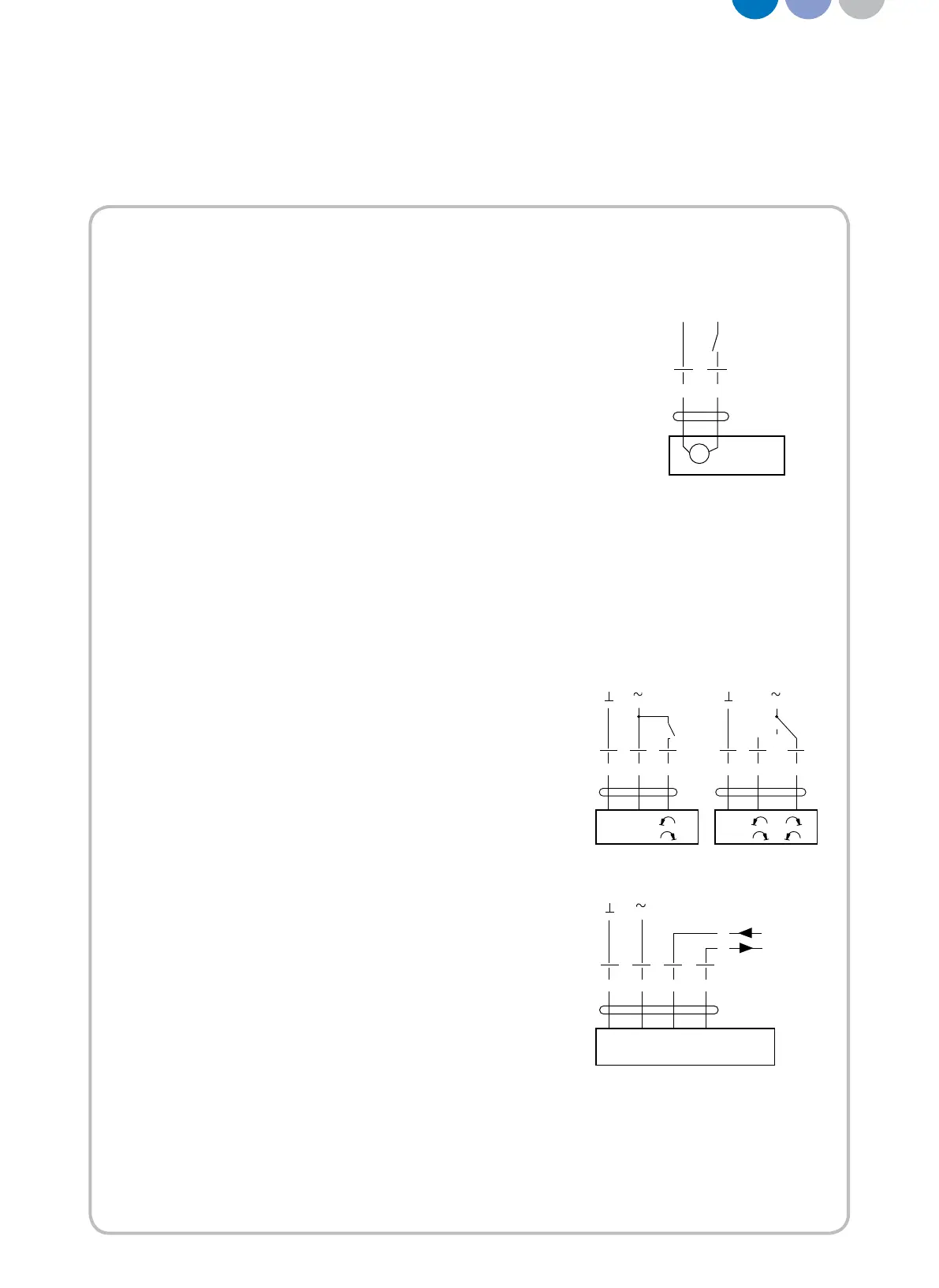

1
NL1
2
M
CM 24 CM 230
Power supply ............................. AC 24 V, 50/60 Hz AC 100–240 V, 50/60 Hz
DC 24 V
Power consumption .................. 0,5 W 1,5 W
For wire sizing ........................... 1 VA 3 VA
Connection ................................ Cable 1 m, 3×0,75 mm² Cable 1 m, 3×0,75 mm²
Torque at rated voltage.............. Min. 2 Nm Min. 2 Nm
Direction of rotation ................... Switch selectable Switch selectable
0 or 1 0 or 1
Running time for 95° ................. 75 s 75 s
Sound power level ..................... Max. 35 dB (A) Max. 35 dB (A)
Protection class ......................... III Safety extra-low voltage II
Protection type .......................... IP 54 IP 54
Ambient temperature range ...... -30 to +50°C -30 to +50°C
Ambient moisture ...................... 95 % RH 95 % RH
CM 24 SR
Power supply ............................. AC 24 V, 50/60 Hz
DC 24 V
Power consumption .................. 0,5 W
For wire sizing ........................... 2 VA
Connection ................................ Cable 1 m, 4×0,75 mm²
Torque at rated voltage.............. Min. 2 Nm
Direction of rotation ................... Switch selectable 0 or 1
Running time for 95° ................. 75 s
Sound power level ..................... Max. 35 dB (A)
Protection class ......................... III Safety extra-low voltage
Protection type .......................... IP 54
Ambient temperature range ...... -30 to +50°C
Ambient moisture ...................... 95 % RH
Dampers
DRU, DSU, DTU, DTHU, DTH1U, DTH2U, DTBU,
DTBCU, DTFU, DTBLU, DSUSN, DSVUSN, DTPU,
PSDRU, TDRU, TDSU, TASU, TATU, TATBU
–
+
