UltraLink
®
Sensor FTSU
Planning
The longer distance to disturbance, i.e. the longer
straight duct before the UltraLink
®
, the higher the
measurement accuracy will be. It is not recommended
to mount the UltraLink
®
so that the first flow sensor (* in
the table on the next page) is placed on an outer radius
of a fitting. Never use an UltraLink
®
on the outlet side
of a duct fan. Place it on the inlet side or in worst case
use a flow conditioner if it must be placed on the outlet
side. View table on next page for directions on how to
position the UltraLink
®
for optimal performance.
Mounting

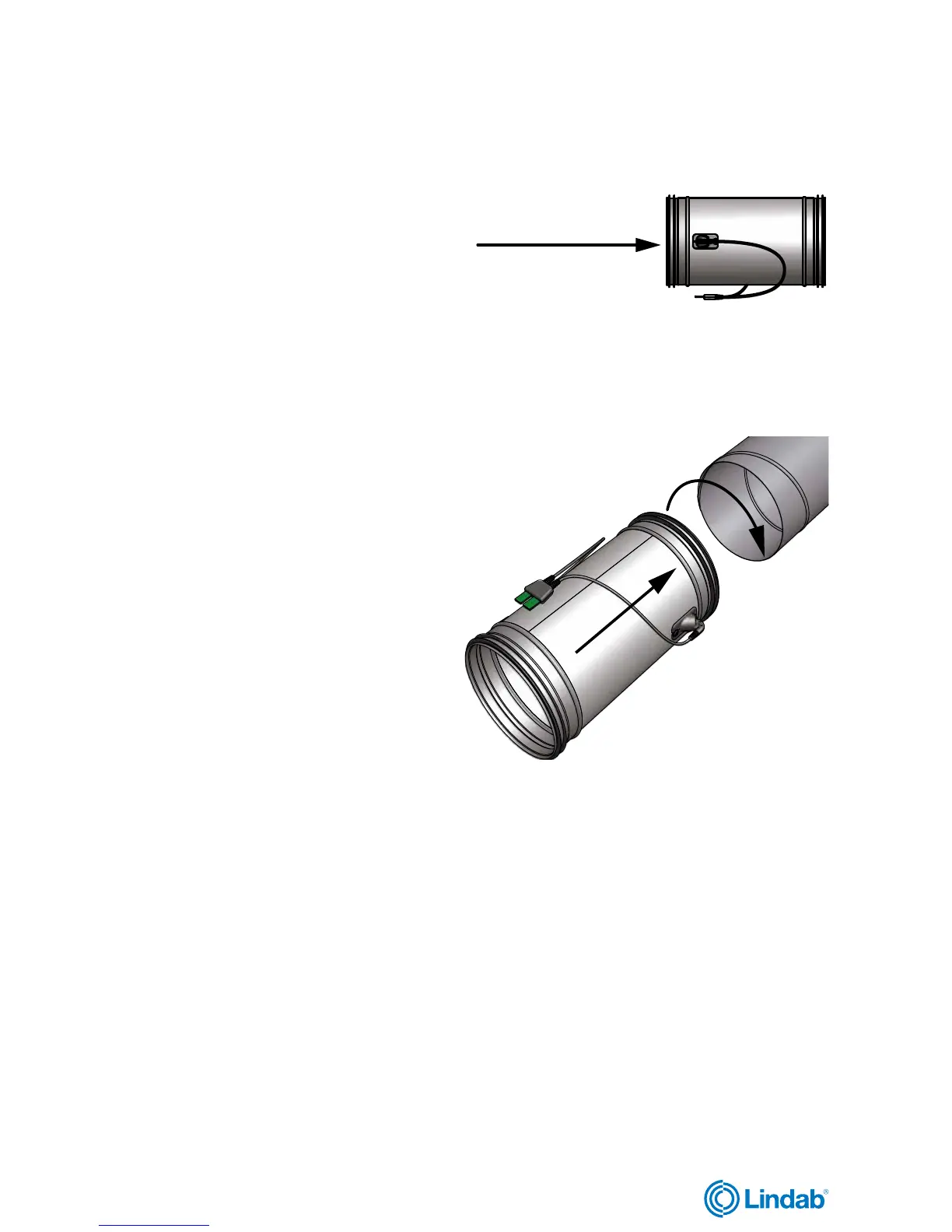

Place the Sensor so that the double USB cable can be
accessed.
Make sure the air flow arrow on the Sensor is pointing
in the direction of the air flow.
Mount the Sensor into the duct system according to
the mounting instructions for Lindab Safe.
Do not use the flow sensors as handles when you
mount the Sensor since they may break and changes in
their positions might effect the measurement accuracy.
Minimum straight distance after the Sensor is 1·Ød.
Air flow
direction
To Next Page
