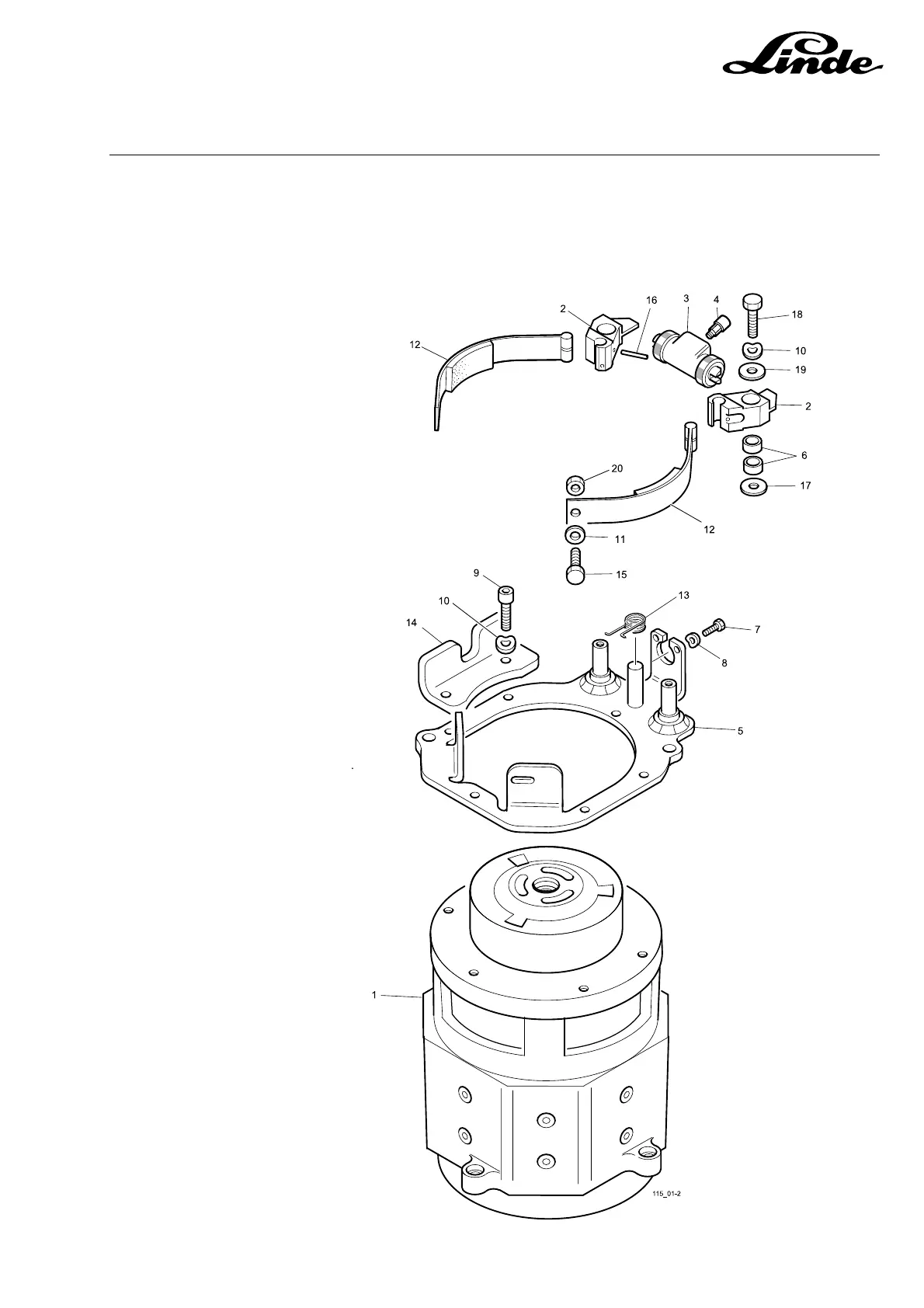

5.7 FOOTBRAKE ASSEMBLY
1. Traction motor
2. Lever
3. Brake cylinder
4. Air vent screw
5. Support assembly
6. Bush
7. Hexagon screw
8. Wave washer
9. Socket head screw
10. Spring washer
11. Washer
12. Brake shoe
13. Return spring
14. Plate
15. Hexagon screw
16. Cotter pin
17. Thrust washer
18. Hexagon screw
19. Washer
20. Hexagon nut
