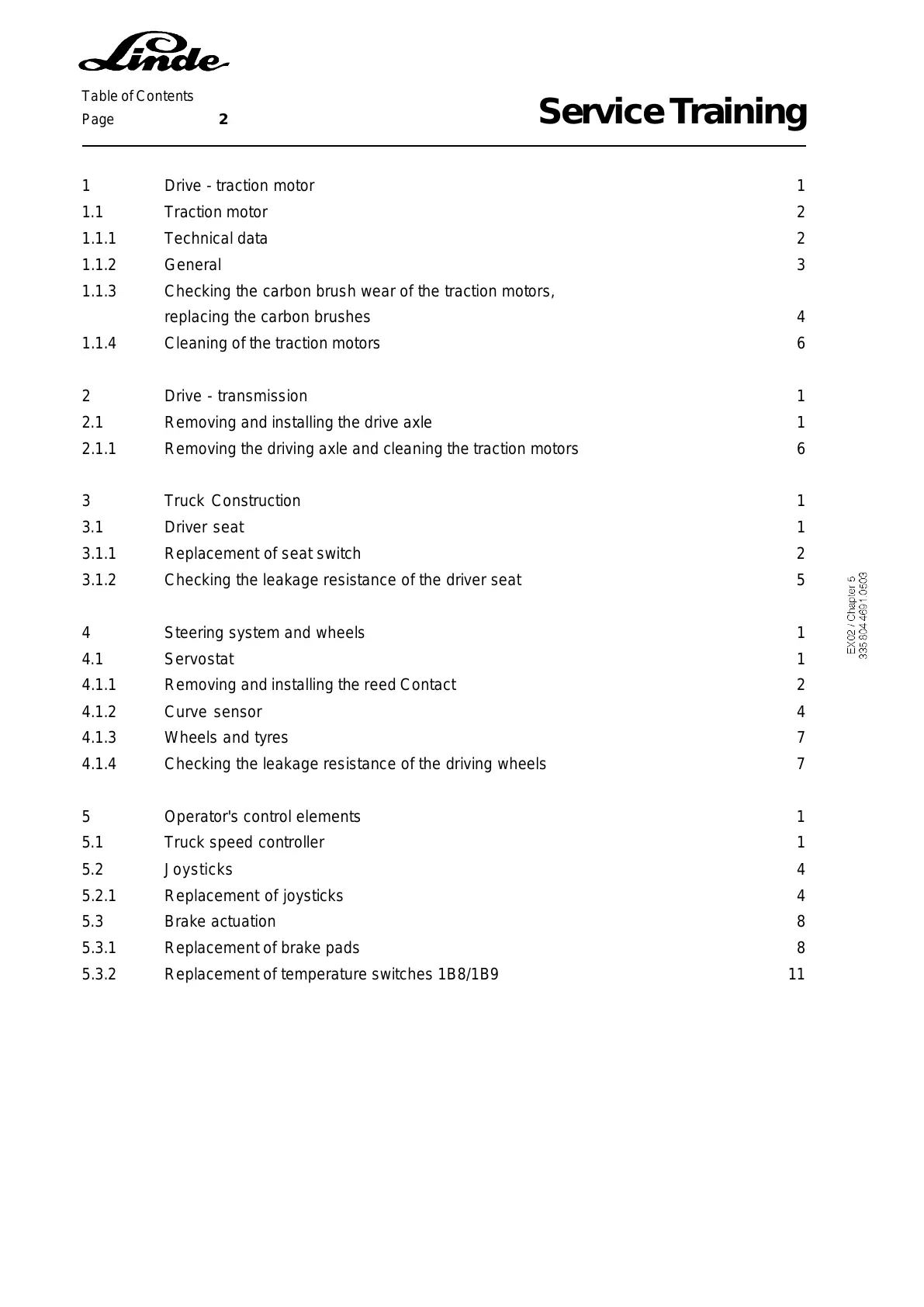

Service Training
Table of Contents
Page 2
1 Drive - traction motor 1
1.1 Traction motor 2
1.1.1 Technical data 2
1.1.2 General 3
1.1.3 Checking the carbon brush wear of the traction motors,
replacing the carbon brushes 4
1.1.4 Cleaning of the traction motors 6
2 Drive - transmission 1
2.1 Removing and installing the drive axle 1
2.1.1 Removing the driving axle and cleaning the traction motors 6
3 Truck Construction 1
3.1 Driver seat 1
3.1.1 Replacement of seat switch 2
3.1.2 Checking the leakage resistance of the driver seat 5
4 Steering system and wheels 1
4.1 Servostat 1
4.1.1 Removing and installing the reed Contact 2
4.1.2 Curve sensor 4
4.1.3 Wheels and tyres 7
4.1.4 Checking the leakage resistance of the driving wheels 7
5 Operator's control elements 1
5.1 Truck speed controller 1
5.2 Joysticks 4
5.2.1 Replacement of joysticks 4
5.3 Brake actuation 8
5.3.1 Replacement of brake pads 8
5.3.2 Replacement of temperature switches 1B8/1B9 11
