Electrical system
Electrical system is powered by 12V
current. The main power switch is
located close to the fuel tank. Please
also refer to the outline drawing on
page 23. The battery has to be stored
in the box provided. See also the circuit
diagram on the right. The main power
switch only isolates the 12V socket &
navigation lights and does not affect
the bilge pump.
Service (electrical system)
It is important to treat the battery
with care if all electrical equipment is
to operate as expected. Check bat-
tery levels regularly to make sure that it
maintains the correct level (C). Smoking
is prohibited when servicing the battery
as it emits an explosive gas (W), when
charging. Use distilled water when top-
ping up the battery.

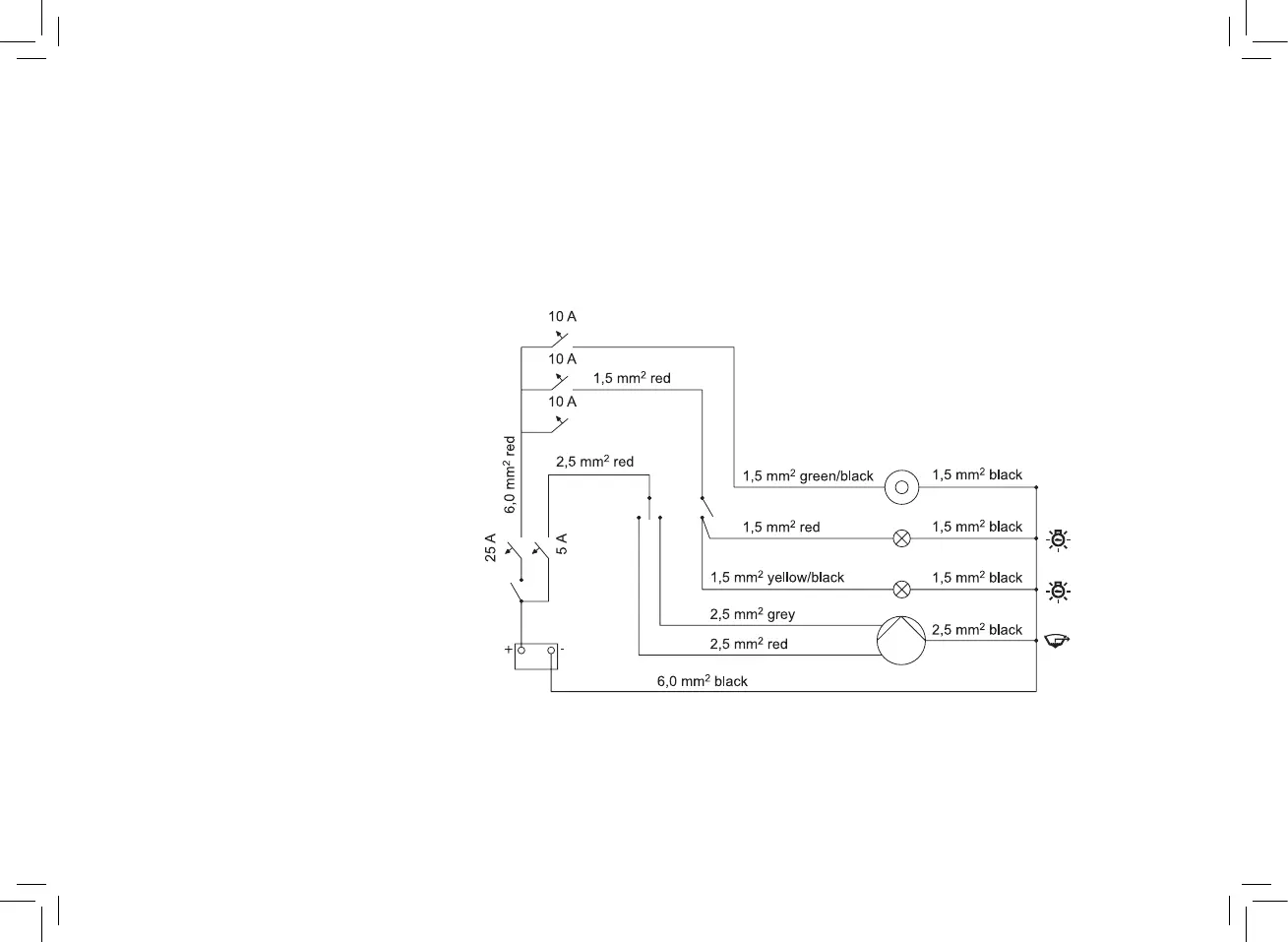

Circuit diagram
Upper navigation lighting
Power socket
Side lighting
Bilge pump
Battery
