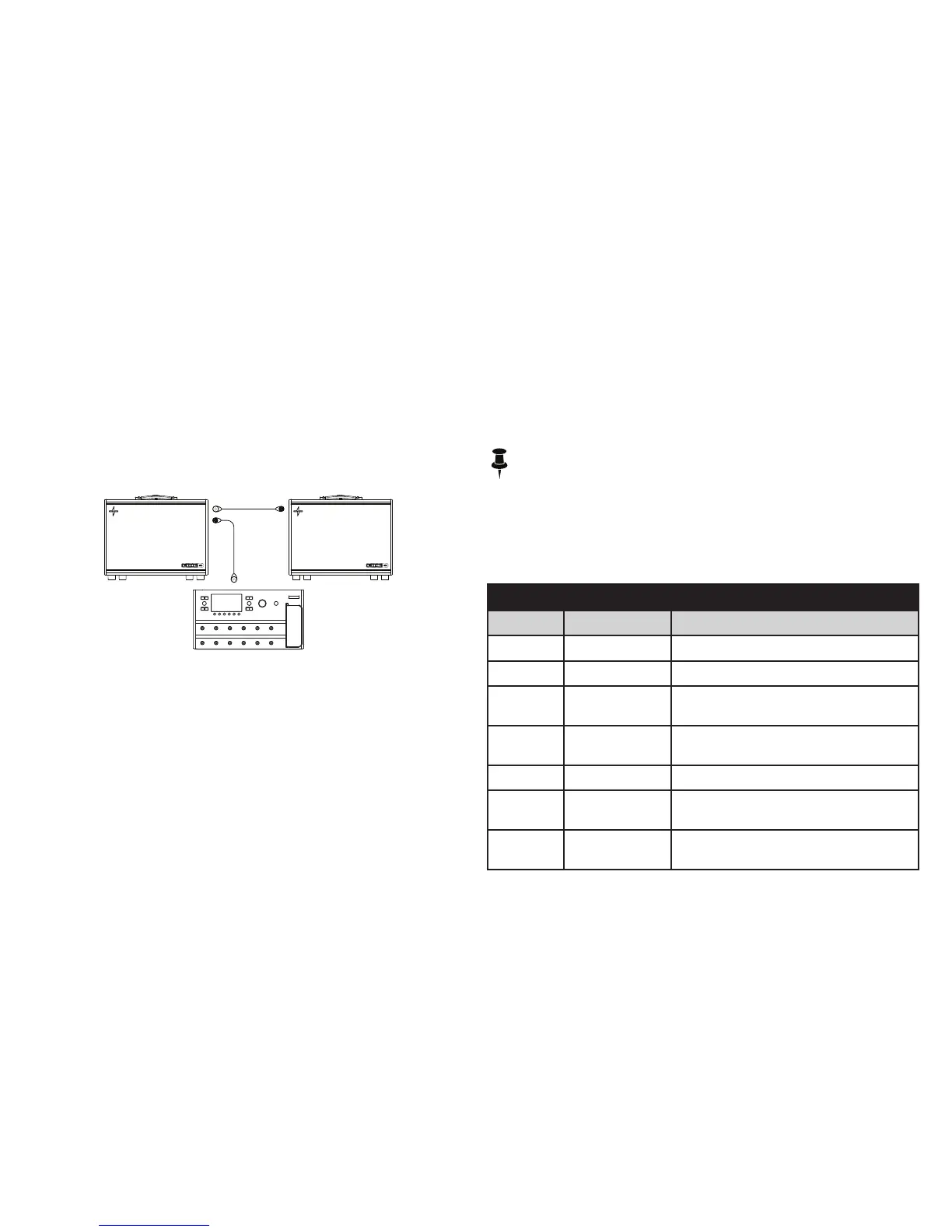

Powercab 112 Plus Stereo Setup
To achieve a stereo conguration with two Powercab 112 Plus devices,
follow the same instructions as shown in the preceding "Powercab 112
Stereo Setup".
If using the L6 LINK or AES connection from your modeler, additionally
connect from the Powercab 112 Plus unit's L6 LINK Output to the L6
LINK Input of a 2nd Powercab 112 Plus unit. This allows audio and
remote control data to be sent to each Powercab 112 Plus device
independently.
L6 LINK or AES
L6 LINK
or AES
AES/EBU
The Powercab 112 Plus active guitar speaker system can also accept
AES/EBU with 48kHz sample rate. When an AES signal is detected by
the rst Powercab unit in the chain, the chain will split the signal's left
channel going to the rst Powercab unit or Line 6 StageSource
®
speaker
and the right channel to the second. If you have one Powercab or
StageSource unit connected, the AES/EBU signal is collapsed to mono
and fed to the single device.
MIDI
MIDI Program Changes
The Powercab 112 Plus active guitar speaker system responds to
traditional MIDI Program Change messages from an external MIDI
device (or from MIDI software via USB) and will recall presets 000-127
accordingly.
NOTE: To congure the MIDI Channel on which your Powercab
device will respond and transmit MIDI, use the Global Settings >
MIDI Channel parameter (MIDI Ch. 1 is the default).
MIDI CC
The Powercab 112 Plus device has reserved specic MIDI CC values
for global functions and preset editing, as listed in the following tables.
MIDI CC - Global Functions
MIDI CC# Value Function
1
0-127 Input 1 volume level
2
0-127 Input 2 volume level
3
0-63: Normal
64-127: Monitor
Input 2 type
4
0-63: O
64-127: On
Link Input 1 & Input 2 gain levels
5
0-127 HF Trim level
6
0-63: Normal
64-127: Process
USB Audio Mode
7
0-127 Master volume level of the Powercab
device
