DESCRIPTION
The miniTransmitter is one of the smallest
portable signaling units manufactured by
Linear. This wireless transmitter owes its
miniature size to state-of-the-art circuit
technology. Only 5/8 inches thick, the
miniTransmitter measures 1-3/8 inches
wide by 1-7/8 inches high. It is compatible
with all Linear standard digital receivers.
CHOOSING A CODE
To code the miniTransmitter with the
receiver it operates, set the eight-digit
system code to the precise digital system
code set in the receiver. Do not retain the
original factory-set code.
In addition, among the 256 valid codes
available, four should not be used
because they are too often duplicated.
These codes are (1) all ON; (2) all OFF;
(3) alternating ON/OFF; (4) alternating
OFF/ON.
CODE SWITCH LOCATION
Remove the battery cover and battery
(see Figure 1), to access the
miniTransmitter’s toggle coding switch
(see Figure 2).
CODE SETTING
The coding is performed simply by using
a paper clip or similarly pointed object
(not a pencil or pen) to flip the eight
switches to On or OFF position. A toggle
switch set to the system code 1, 4, 7 ON
appears in Figure 2.
Reinstall battery observing polarity.
Replace battery cover.
CHECK-OUT AND TEST
After matching the digital code set in the
transmitter to the receiver code, test the
system.
CAUTION: Be sure the door or gate is
in sight and the area is clear prior to
testing.
To test the transmitter, perform the
following steps.
Step 1: Move at least 6 feet away from
the receiver and push the miniTransmitter
button. Receiver activation indicates that
the transmitter is operating properly and
that the transmitter/ receiver’s digital codes
are correctly matched.
NOTE: The miniTransmitter transmits
continuously while the button is held
down, terminating when the button is
released.
Step 2: Operate the transmitter from
various locations within the area where it
will be used. This will help to locate
possible null areas where structural steel,
and/or certain appliances may interfere
with transmission.
INSTR,CODE SET,MINI XMTR
Linear P/N: 106914 D
Material: 20 Lb. Mead Bond
Ink: Black
Side 2 of 2
Scale: 1-1
5.500"
8.500"
TWIST LOOPS
TO REMOVE
DOOR
REMOVE BATTERY
TO ACCESS CODE
SWITCH

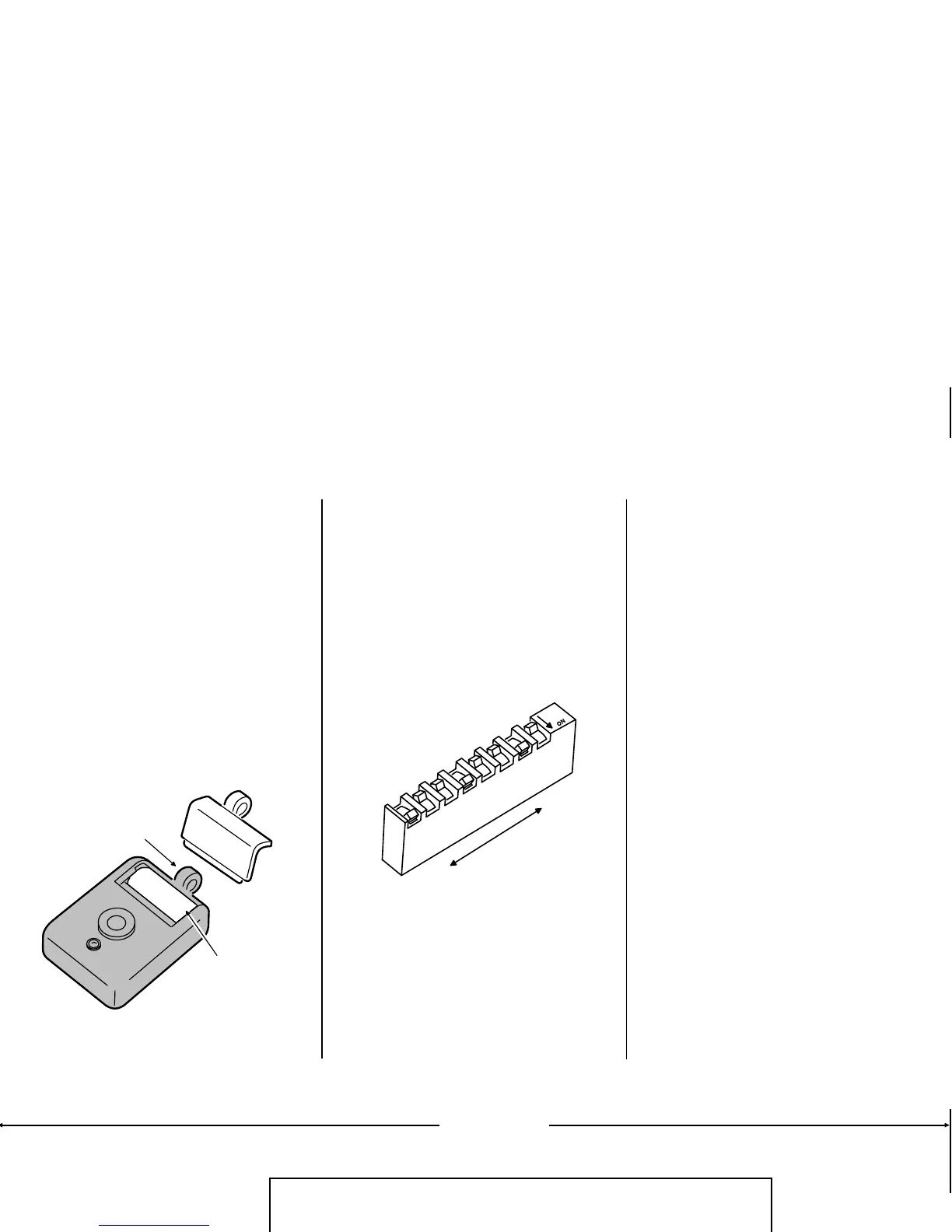

Figure 1: Coding Switch Location
1
8
SWITCHES 1, 4,
AND 7 ARE ON
Figure 2: Toggle Coding Switch
