4
Room and Patio Stations
The Room Stations and Patio Stations
provide intercom functions and system
music control capabilities.
Depending on the station confi guration at
the Master Station, a Room Station or Patio
Station can communicate with or monitor
other stations and communicate with the
Door Stations. The system’s music can be
turned on and off, music volume adjusted,
and music sources changed from certain
models of room stations.
Door Stations
The Door Station is an exterior intercom
speaker and doorbell installed at home
entrances. The DMC3-4 system supports
up to three door stations. The door station
allows for communications from within the
house to visitors at the door. Any station
with its Intercom Selector Switches
set to INTERCOM or RADIO/INT can
communicate with the Door Station.
System Overview
DOOR TALK
BUTTON
ROOM TALK
BUTTON
VOLUME
KNOB
MUSIC
VOLUME +
MUSIC
VOLUME -
LISTEN
BUTTON
TA L K
BUTTON
VOLUME
KNOB
MUSIC
VOLUME +
MUSIC
VOLUME -

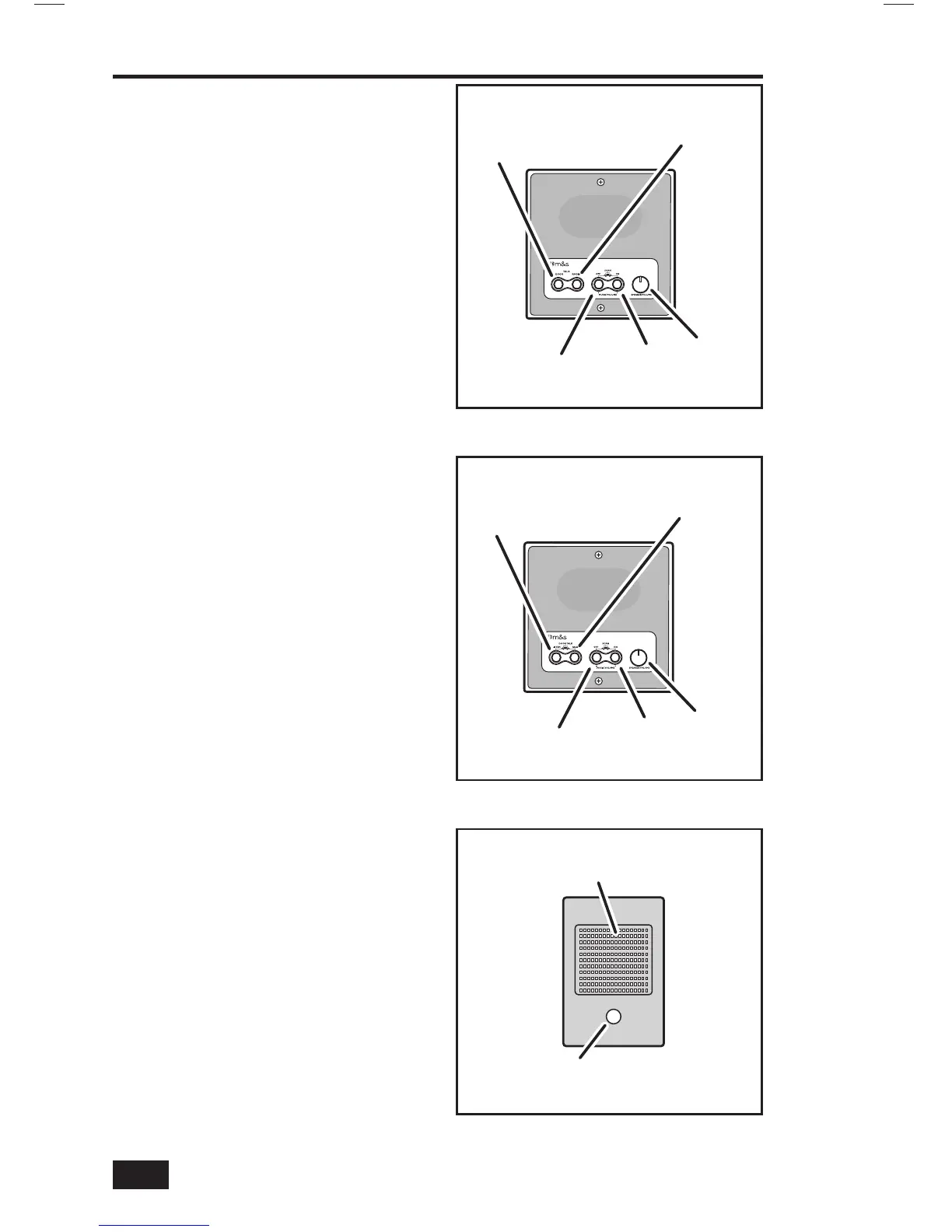

Figure 3. 3-Wire Patio/Room Station Features
Figure 4. 4-Wire Patio/Room Station Features
SPEAKER &
MICROPHONE
CHIME
BUTTON
Figure 5. Door Station Features
