Linear GSLG-A User Manual

GSLG-A Slide Gate Operator Installation Guide - 17 - P1222 Revision X5 6-22-2011

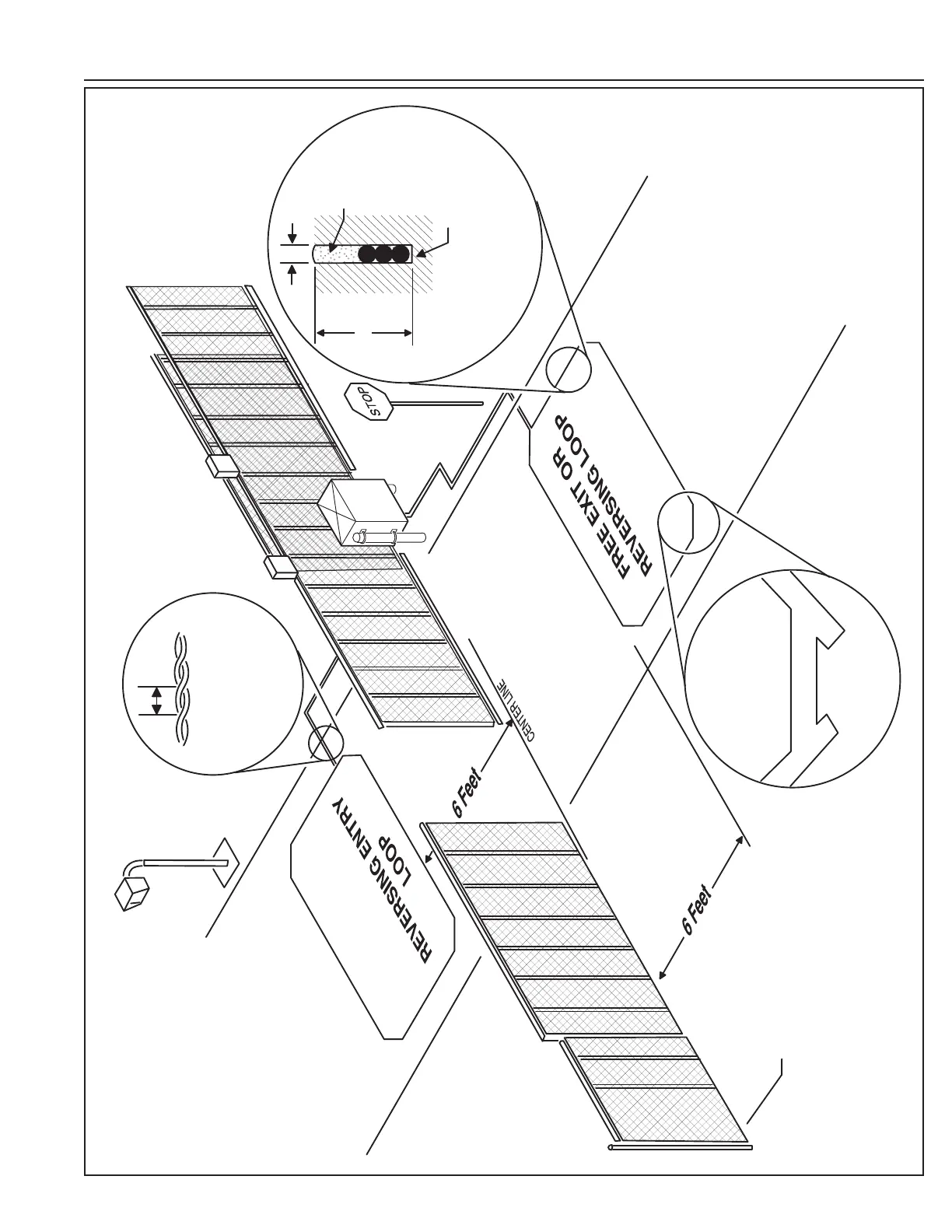

Loop Layout Illustration
SEPARATE PEDESTRIAN GATE REQUIRED 7 FEET
MINIMUM DISTANCE FROM GATE
2"
3/8"
LOOP SEALANT
MULTIPLE TURNS
REFER TO LOOP
INSTALLATION NOTES
FOR DETAILS
TWIST WIRE FROM END OF
LOOPS BACK TO OPERATOR
AT LEAST SIX TIMES PER
FOOT
2" MAX.
USE RELIEF CUTS
AT CORNERS
