5

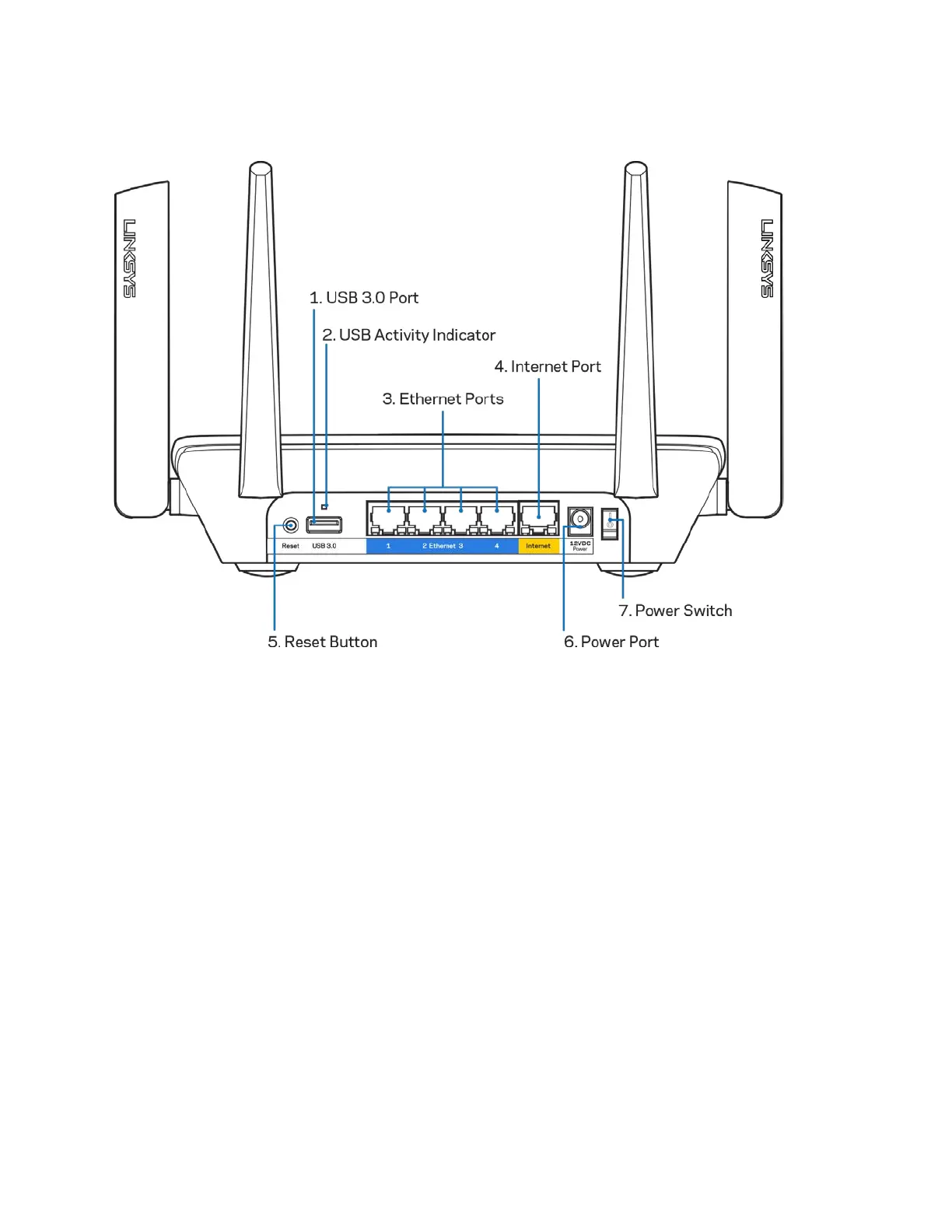

Back view
USB 3.0 port (1)Connect and share USB drives on your network or on the internet.
USB activity indicator (2)Lights indicate data transfer to/from external devices.
Ethernet ports (3)Connect ethernet cables to these blue gigabit (10/100/1000) ports, and to
wired devices on your network.
NoteFor best performance, use CAT5e or higher rated cables on the Ethernet ports.
Internet port (4)Connect an ethernet cable to this yellow gigabit (10/100/1000) port, and to a
broadband internet cable/DSL or fiber modem.
NoteFor best performance, use CAT5e or higher rated cable on the Internet port.
Reset button (5)Press and hold until the illuminated Linksys logo turns off to reset the router to
factory settings. You can also restore the factory settings using Linksys Smart Wi-Fi on the internet
or mobile app.
Power port (6)Connect the included AC power adapter.
Power switch (7)Press | (on) to turn on the router.

Table of Contents

Other manuals for Linksys EA8300

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Linksys EA8300 and is the answer not in the manual?

Linksys EA8300 Specifications

General IconGeneral
Processor716 MHz Quad-Core
USB Ports1x USB 3.0
BeamformingYes
MU-MIMOYes
Wireless Standards802.11a/b/g/n/ac
RAM256 MB
Flash Memory256 MB
Wi-Fi TechnologyTri-Band
Ethernet Ports1 x Gigabit WAN, 4 x Gigabit LAN
Antennas4 external antennas
Wireless SpeedAC2200 (400 + 867 + 867 Mbps)
Frequency Band2.4 GHz, 5 GHz
SecurityWPA2
