4
WPS (Wi-Fi Protected Setup™) indicator------The WPS light has four states:
Off No Wi-Fi Protected Setup
activity
Wi-Fi Protected Setup in
progress
Wi-Fi Protected Setup is
successful; remains lit for five
seconds
Blinking Orange
Wi-Fi Protected Setup error;
blinks for one minute, then
goes off
Illuminated Linksys Logo—Blinks while the router is starting up. When the logo is solid white, the
router is powered on and working correctly.

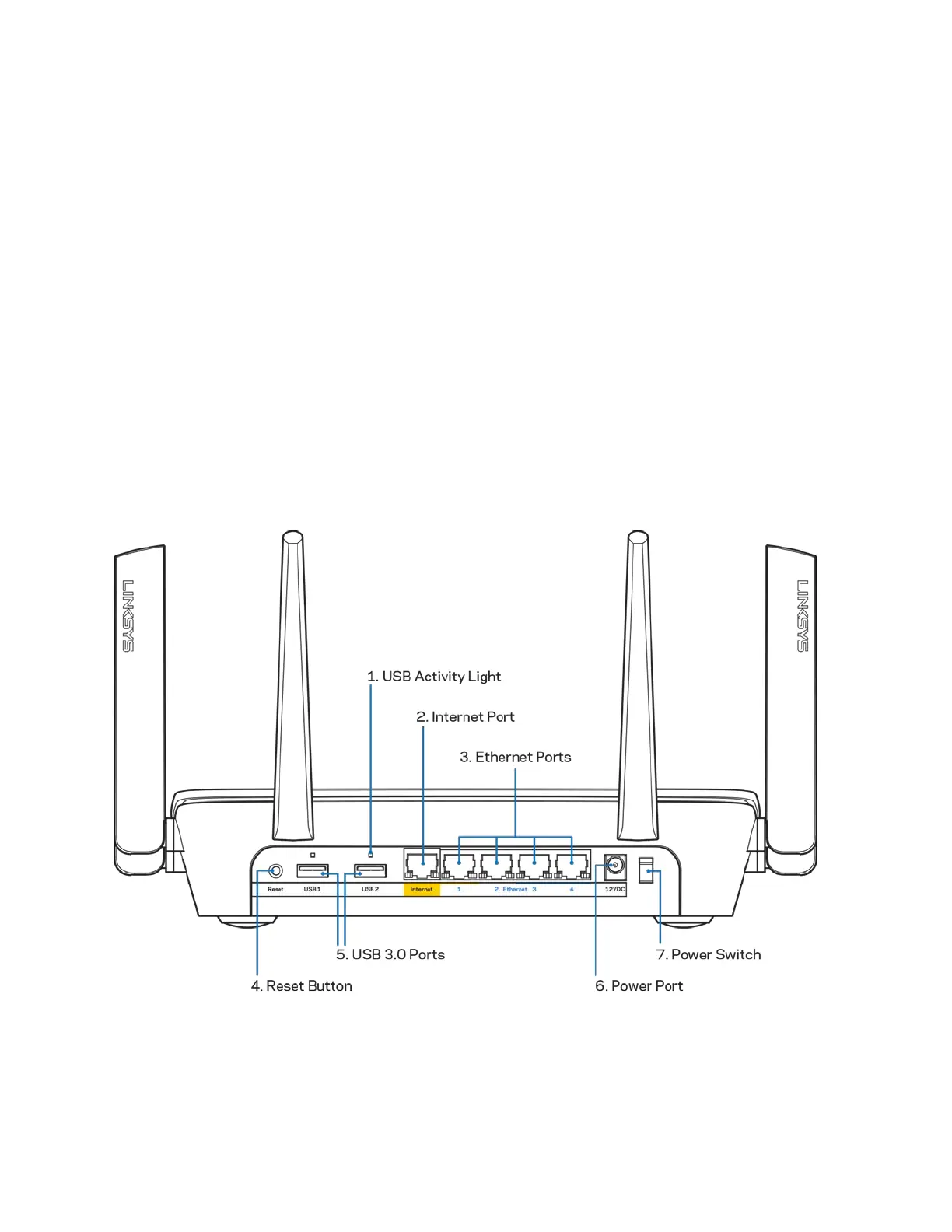

Back view
USB activity light (1)—Lights indicate data transfer to/from external devices.
Internet port (2)—Connect an ethernet cable to this yellow gigabit (10/100/1000) port, and to a
broadband internet cable/DSL or fiber modem.
Note—For best performance, use CAT5e or higher rated cable on the Internet port.
