Linksys MAX-STREAM MR8300 User Manual

34
How to factory reset your router
You should never need to factory reset your MR8300 router—a very disruptive process. A factory
reset restores your router to the state it was when you took it out of its box, requiring you to go
through the setup process again. All settings you have customized in setup and since – things such as
Wi-Fi name, passwords, security type – will be erased. All wireless devices will disconnect from your
Wi-Fi.
To factory reset :
•

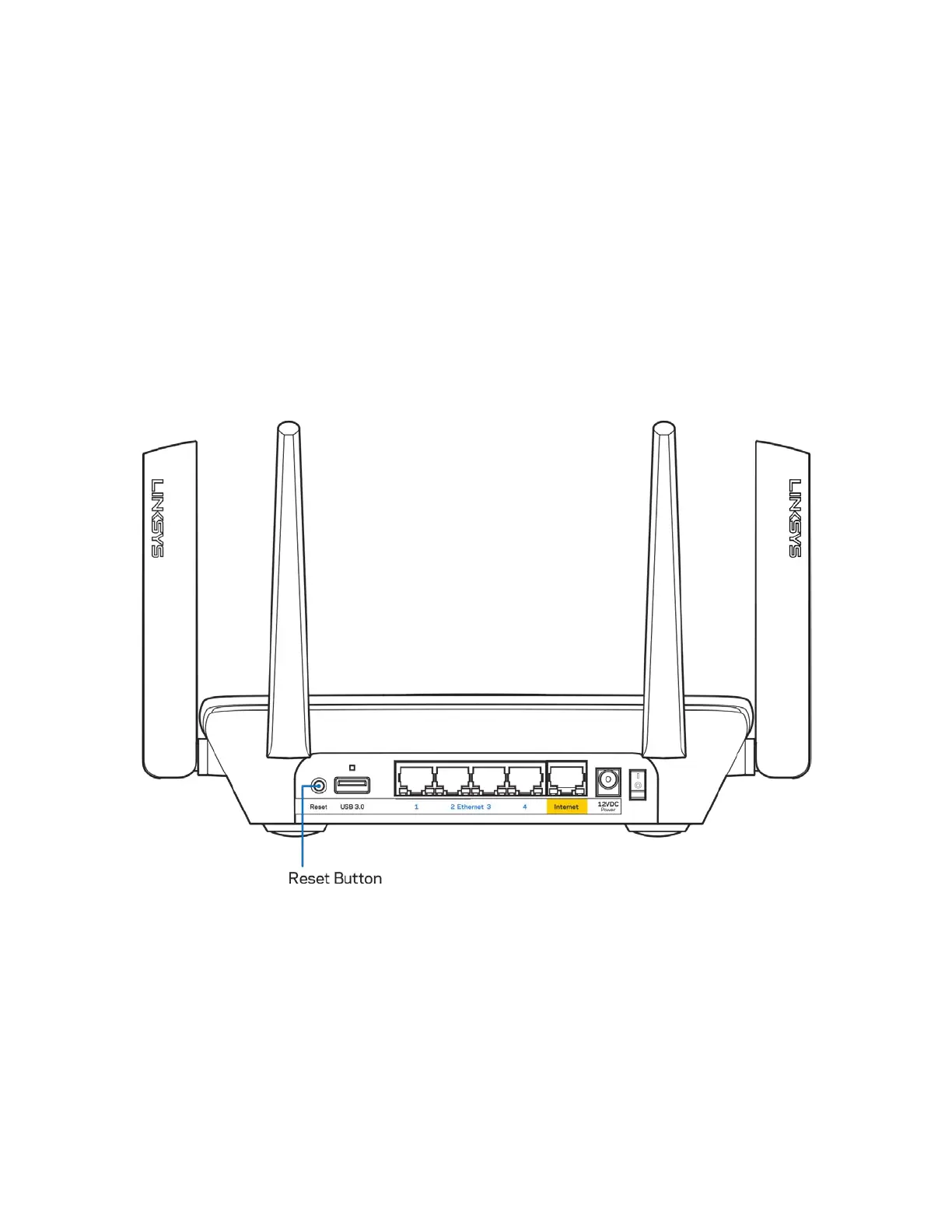

With your router connected to power and turned on, press and hold the Reset button on the
back panel. The light on top of the router will blink red. Do not release the button until the light
goes out and then turns bright red.

Linksys MAX-STREAM MR8300 Specifications

General

Product type	Tabletop router
Product color	Black
LED indicators	LAN, Power, Status, USB, WLAN
Wall mountable	Yes
DSL WAN	-
WAN connection type	RJ-45
Antennas quantity	4
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 5 GHz)
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	- Mbit/s
WLAN data transfer rate (first band)	400 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Flash memory	256 MB
Internal memory	512 MB
Processor frequency	716 MHz
Output current	2 A
Output voltage	12 V
AC input voltage	100 - 240 V
Power source type	AC
AC input frequency	50 - 60 Hz
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	1
Security algorithms	128-bit AES, WPA, WPA2

Weight and Dimensions

Depth	213.7 mm
Width	161.8 mm
Height	54.8 mm
Weight	608 g
