Linksys SD2005 User Manual

The power port is located on the side panel of the Switch (see Figure 2-3).
(power) The power port is where you will connect the included power
adapter.
The security slot is located on the other side panel (see Figure 2-4).
(security slot) The security slot is where you can attach a lock so the Switch
will be protected from theft.
32

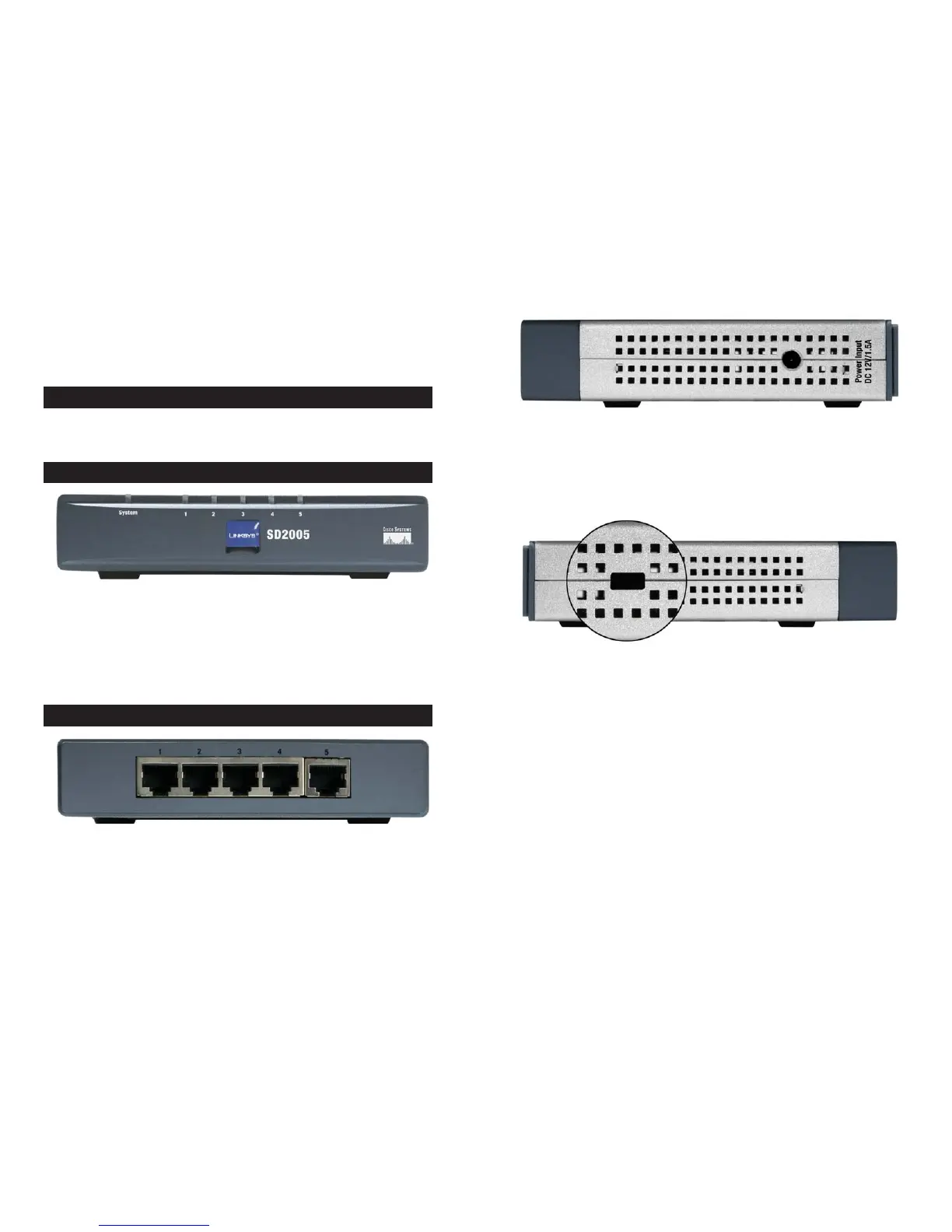

Chapter 2: Getting to Know the
10/100/1000 Gigabit Switch
The 5- and 8-Port 10/100/1000 Gigabit Switches differ in number of LEDs and
ports. Pictured here is the 5-Port Switch; however, the other Switch is similar
in form.
System Green. The System LED will light up when the Switch is
powered on.
1-5 or 1-8 Green. Each LED will light up when there is a connection
made through its corresponding port. It will flash when there
is activity on its corresponding port.
The network ports are located on the back panel of the Switch.
1-5 or 1-8 These ports are connection points for PCs and other network
devices, such as additional switches.
Overview
Figure 2-1
Front Panel LEDs
Back and Side Panel Features
Figure 2-2
Figure 2-3
Figure 2-4

Linksys SD2005 Specifications

Ports & Interfaces

ports	5 RJ-45 10/100/1000 Mbps ports
cabling type	Cat5e
LEDs	System, 1 through 5

Power

power	DC12V/0.5A

Operating Environment

operating temperature	32 to 104ºF (0 to 40ºC)
storage temperature	-40 to 158ºF (-40 to 70ºC)
operating humidity	20 to 95%, noncondensing
storage humidity	5 to 90%, noncondensing

Weight and Dimensions

dimensions	5.12" x 1.18" x 5.00" (130 x 30 x 127 mm)
unit weight	0.94 lbs (0.425 kg)
security feature	Security Slot
