Chapter 4
Configuration U
sing the Web-based Utility
36
Business Series Smart Gigabit Ethernet Switch
Logout
The
Logout
tab
is
used
to
terminate
the
login
session.

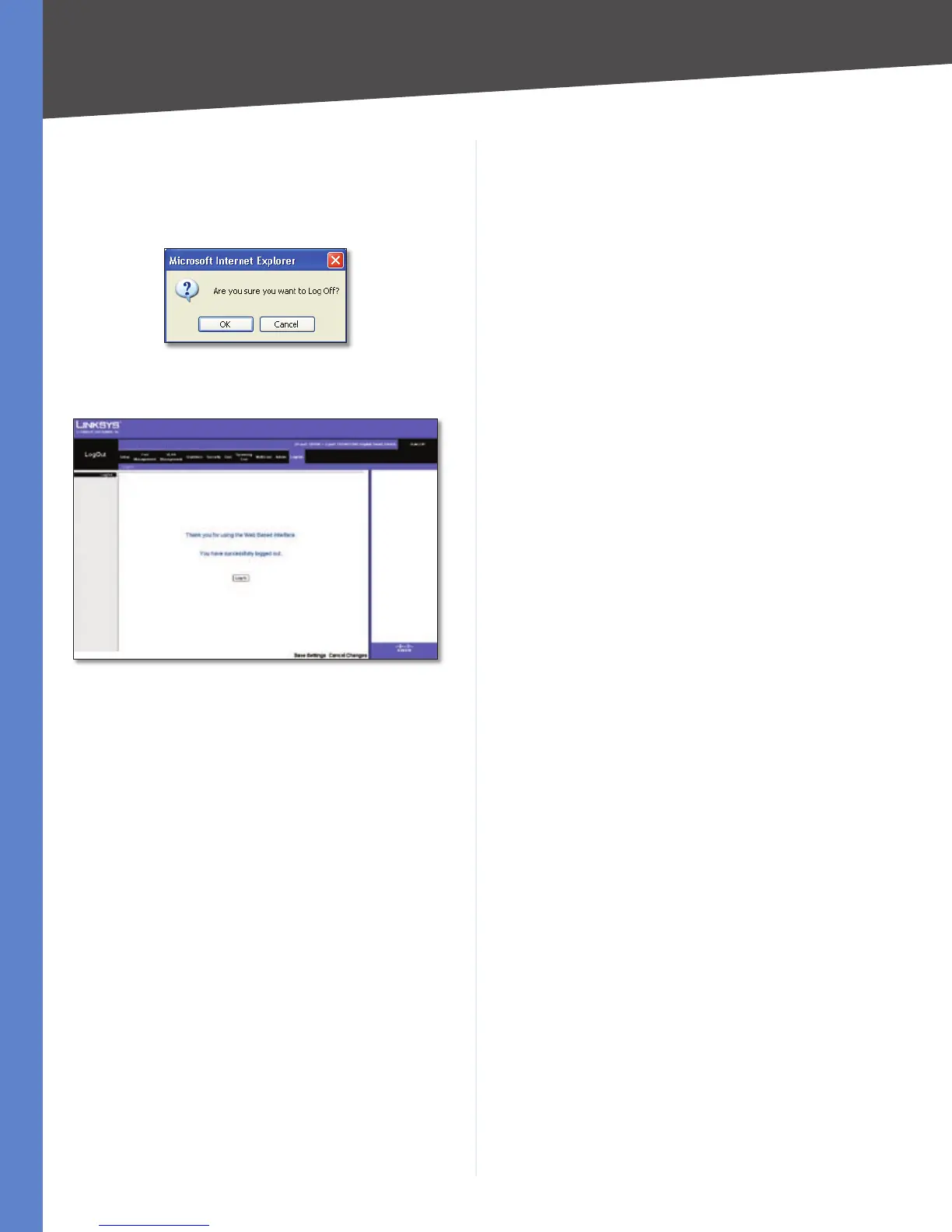

When you select the Logout tab, the following dialog box
asks you to v
erify if you want to log out.
Logout
V
erification
If you select
Y
es
, a confirmation screen appears.
Confirmation of Successful L
ogout
40
42
