Product Overview
8-Port 10/100/1000 Gigabit Switch with Webview
Chapter 2
Chapter 2:
Product Overview

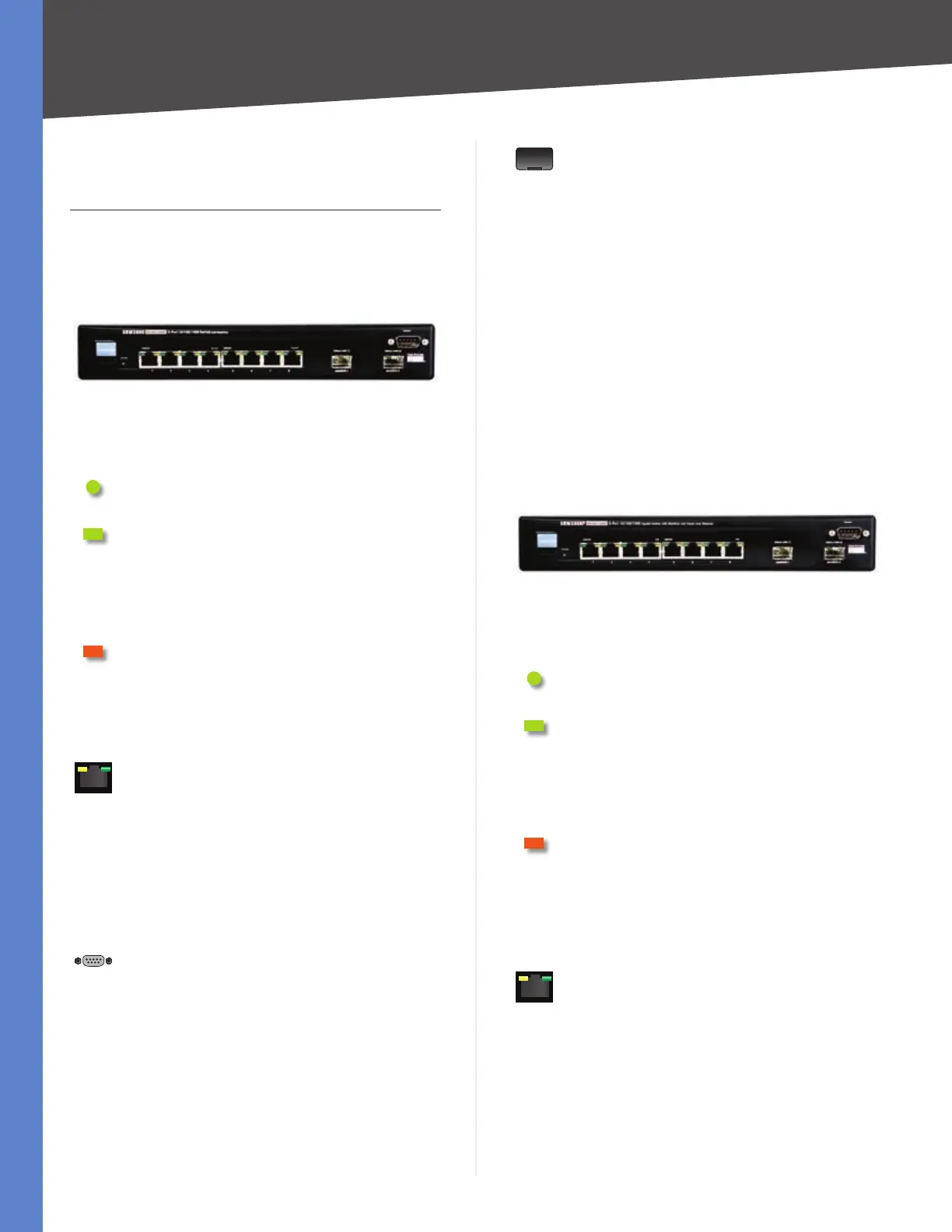

SRW2008 - Front Panel
The LEDs and ports are located on the front panel of the
Switch.
Front Panel
LEDs
SYSTEM (Green) The system LED lights up to
indicate that the Switch is powered on.
LINK/ACT (Green) The LINK/ACT LED lights up
to indicate a functional network link through
the corresponding port (1 through 8) with an
attached device. It flashes to indicate that the
Switch is actively sending or receiving data over
that port.
Gigabit (Orange) The Gigabit LED lights
up to indicate a Gigabit connection on the
corresponding port (1 through 8).
Ports
1-8 The Switch is equipped with 8 auto-
sensing, Ethernet network ports, which use
RJ-45 connectors. The Fast Ethernet ports
support network speeds of 10Mbps, 100Mbps,
or 1000Mbps. They can operate in half and
full-duplex modes. Auto-sensing technology
enables each port to automatically detect the
speed of the device connected to it (10Mbps,
100Mbps, or 1000Mbps), and adjust its speed
and duplex accordingly.
Console The Console port is where you can
connect a serial cable to a PC’s serial port for
configuration using your PC’s HyperTerminal
program. Refer to Chapter 4: Using the
Console Interface for Configuration for more
information.
miniGBIC1/2 The mini-GBIC (gigabit interface
converter) port is a connection point for a
mini-GBIC expansion module, so the Switch
can be uplinked via fiber to another switch.
Each MiniGBIC port provides a link to a
high-speed network segment or individual
workstation at speeds of up to 1000Mbps.
Use the Linksys MGBT1, MGBSX1, or MGBLH1
mini-GBIC modules with the Switch. The
MGBSX1 and the MGBLH1 require fiber cabling
with LC connectors, while the MGBT1 requires
a Category 5e Ethernet cable with an RJ-45
connector.
SRW2008P/SRW2008MP - Front Panel
The LEDs and ports are located on the front panel of the
Switch.
Front Panel
LEDs
SYSTEM (Green) The system LED lights up to
indicate that the Switch is powered on.
LINK/ACT (1-8) (Green) The LINK/ACT LED
lights up to indicate a functional network link
through the corresponding port (1 through 8)
with an attached device. It flashes to indicate
that the Switch is actively sending or receiving
data over that port.
PoE (Orange) The PoE LED lights up to indicate
a device is connected utilizing Power over
Ethernet on the corresponding port (1 through
8).
Ports
1-8 The Switch is equipped with 8 auto-
sensing, Ethernet network ports, which use RJ-
45 connectors. The Fast Ethernet ports support
network speeds of 10Mbps or 100Mbps.
They can operate in half and full-duplex modes.
Auto-sensing technology enables each port to
automatically detect the speed of the device
connected to it (10Mbps or 100Mbps), and
adjust its speed and duplex accordingly.
