Chapter 2
Configuration
5
USB Ethernet Adapter

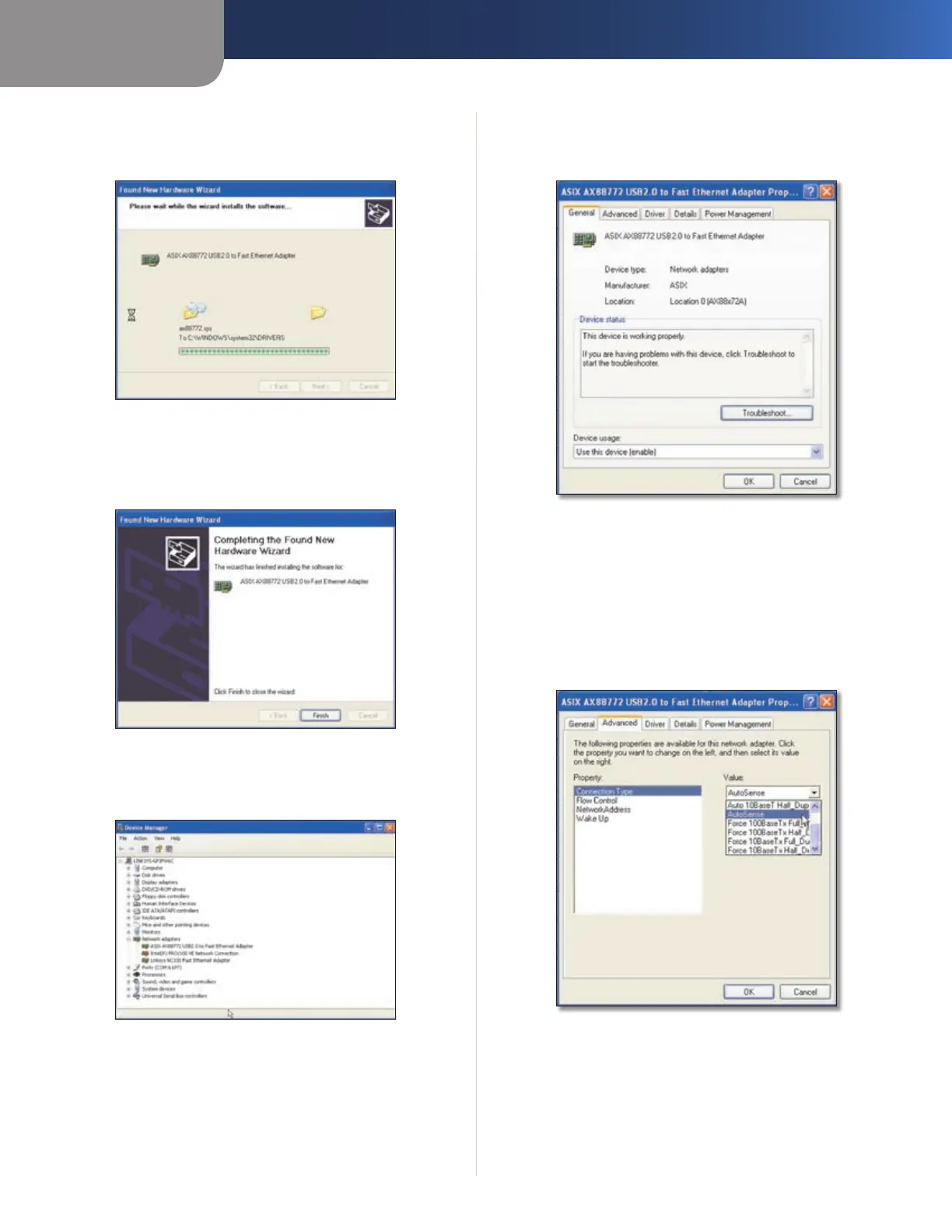

The Wizard installs the driver software onto your 6.
computer. When the installation is completed, click
Next.
Installing the Software
The 7. Completing the Found New Hardware Wizard screen
appears. Click Finish to exit the Wizard. Then remove
the Installation CD from the CD-ROM drive.
Completing the Found New Hardware Wizard
Click 8. Start, click Control Panel, and then click System
to open the Device Manager.
Device Manager
Click 9. Network Adapters, and then double-click ASIX
AX88772 USB2.0 to Fast Ethernet Adapter to display
the Adapter’s Properties window.
Fast Ethernet Adapter Properties—General tab
Click the 10. Advanced tab, and then use the Property
and Value drop-down menus to set the properties as
follows.
Connection Type Set this to AutoSense.
Flow Control Set this to Enable.
Wake Up Set this to Disable.
Fast Ethernet Adapter Properties—Advanced tab
To Next Page
