Linksys WRT54GL Quick Install Guide

Hardware Setup
After removing the Routers from their packaging and placing them in a suitable lo-
cation, you are ready to plug them in. The Sharedband Routers can be set up in two
configurations.

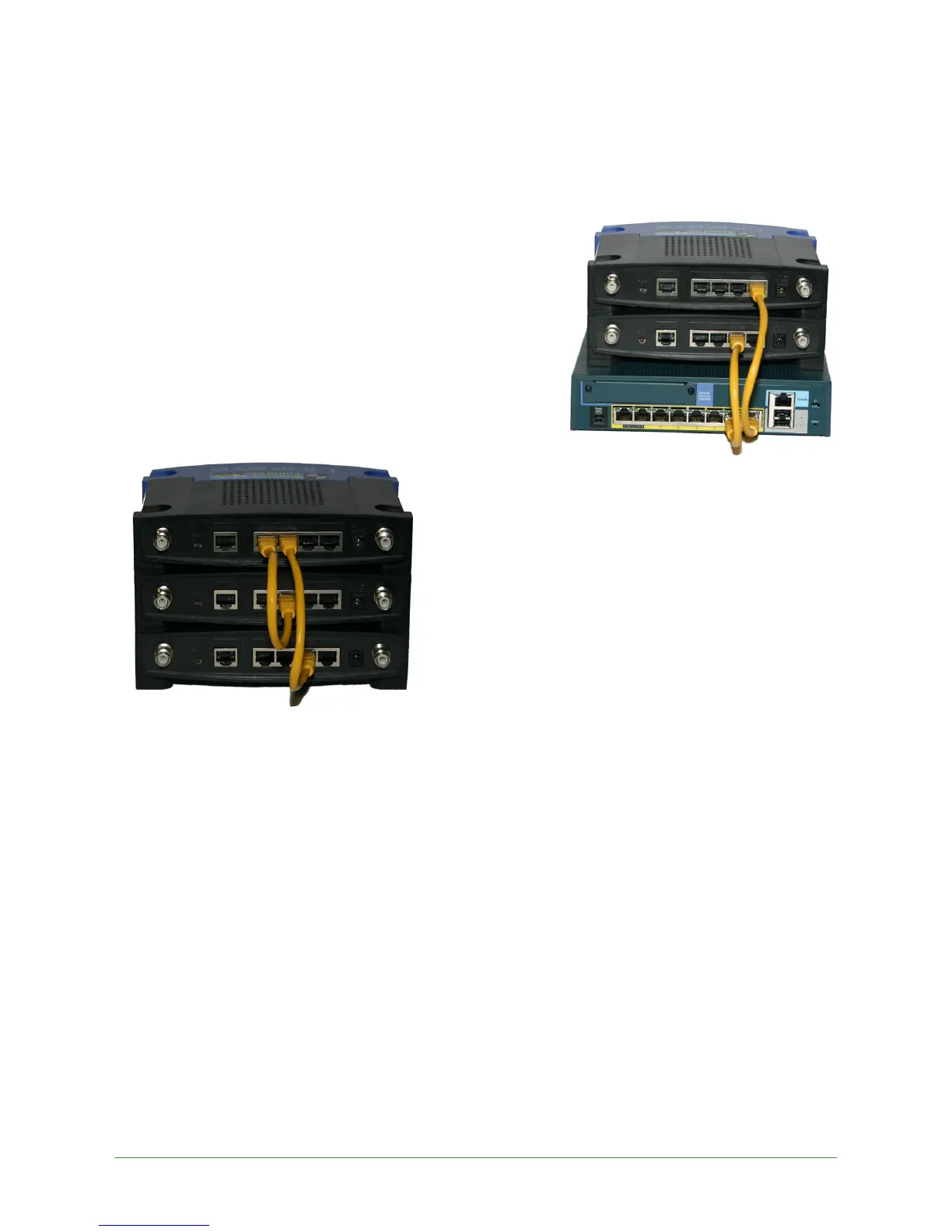

The recommended setup is to connect the
Routers together via an unmanaged switch.
Or plug all Sharedband Routers together with
an Ethernet cable.
After connecting the Sharedband Routers together the next step is to connect them
to the modems. This is done with an Ethernet cable found in the box for each
Router.
With the Routers connected together and to the modems they are ready to be
turned on. Plug the power lead into the back of the Router and into the nearest
power outlet.
Linksys WRT54GL QIG 2 www.sharedband.com

Linksys WRT54GL Specifications

General

I/O ports	4x RJ-45
Rack mounting	No
Security algorithms	TKIP, WPA
MAC address filtering	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.3, IEEE 802.3u
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Ethernet LAN (RJ-45) ports	4
Wi-Fi standards	802.11b, 802.11g
Top Wi-Fi standard	802.11g
WLAN data transfer rate (max)	54 Mbit/s
DHCP client	-
Antennas quantity	2
Product type	Tabletop router
Product color	Black, Blue
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 85 %
Windows operating systems supported	Windows Vista Business, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64
Power source type	AC

Weight and Dimensions

Weight	482 g
