Wiring
1. Wire Netbell-NTG PA System
For details on how to wire the Netbell-NTG PA system, please refer to the Wiring the Netbell-NTG section on the

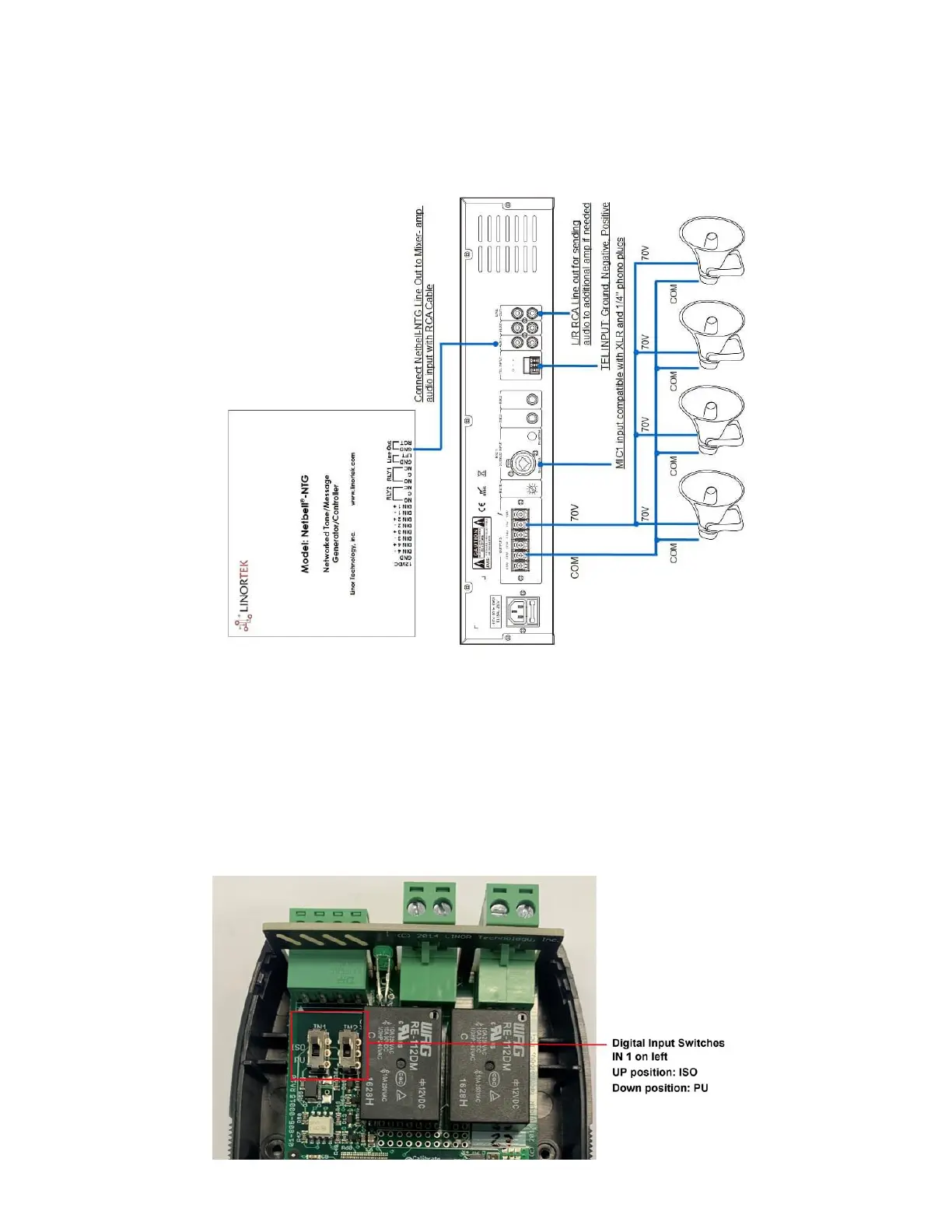

Netbell-NTG User Manual, below is the wiring diagram from the manual for your reference:
2. Wire the push switch to Koda 100 digital input
There are two digital inputs on the Koda 100 controller, they are marked as IN1 (input 1), IN2 (input 2) on the
enclosure, you can connect the push switch to either of the input to trigger the alarm on/off. There are two modes
of operation for the digital inputs: ISOLATED (ISO) and PULL UP (PU), it’s set to ISO mode by default. To use the push
switch with the digital input, you first need to put the digital input switch to PU mode.
To put the digital input switch to PU mode, open the enclosure of the Koda 100, find the switches marked as IN1 IN2
and put it into the DOWN position for PU mode depending on which input you connect the push button.
