TYPE
R-
TRANSFORMER
NO.
153
—
in
a
=
NO.
167
WHISTLE.
CONTROLLER

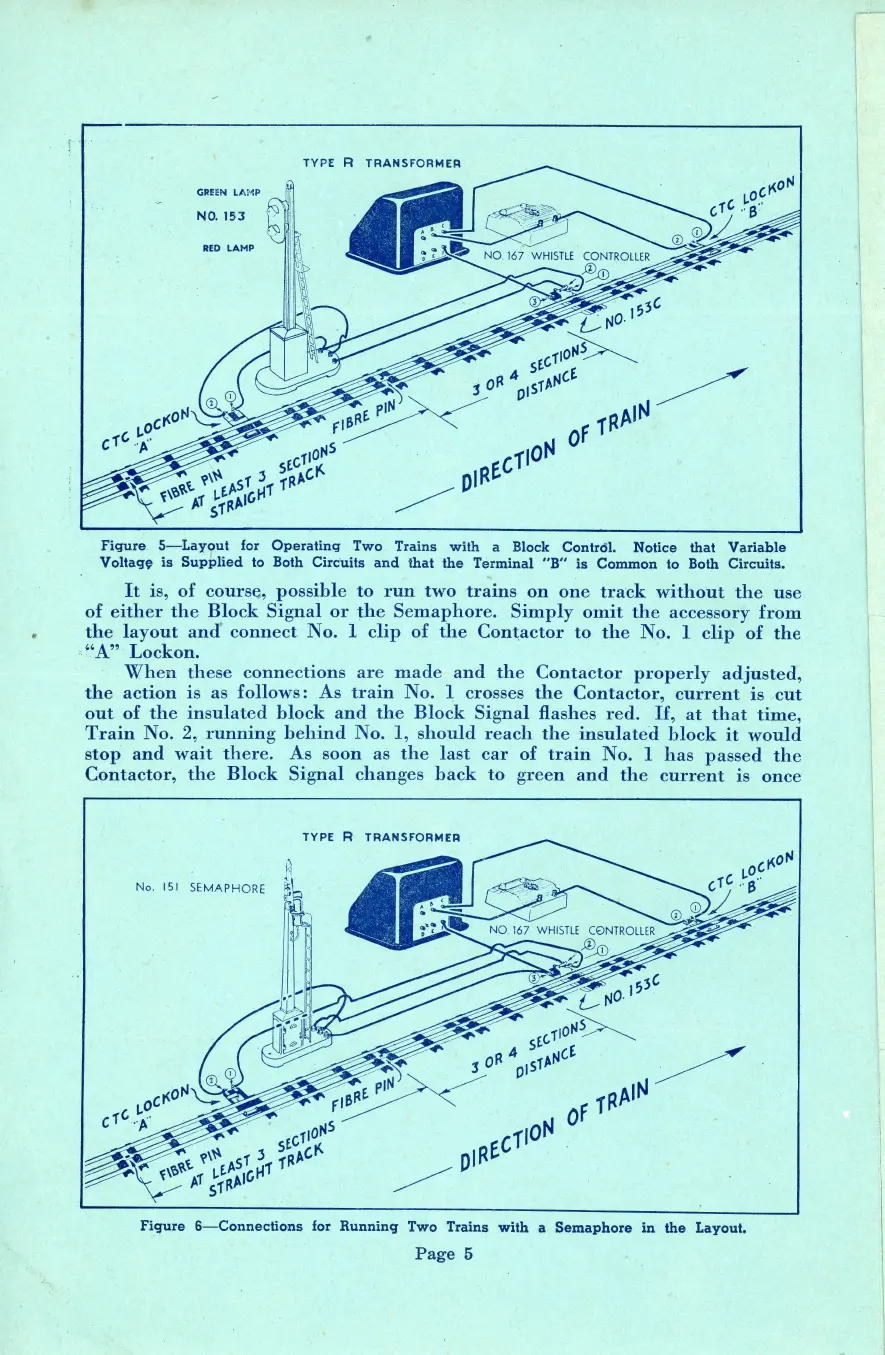

Figure
e—hayout
for
Operating
Two
Trains
with
a
Block
Control.
Voltage
is
Supplied
to
Both
Circuits
and
a
the
Terminal
a.
is
Common
to
Both
Circuits.
Notice
that
Variable
It
is,
of
course,
possible
to
run
two
trains
on
one
track
without
the
use
of
either
the
Block
Signal
or
the
Semaphore.
Simply
omit
the
accessory
from
the
layout
and
connect
No.
1
clip
of
the
Contactor
to
the
No.
1
clip
of
the
-“
A”
Lockon.
:
When
these
connections
are
nade:
and
the
Contactor
Becher
adjusted,
the
action
is
as
follows:
As
train
No.
1
crosses
the
Contactor,
current
is
cut
out
of
the
insulated
block
and
the
Block
Signal
flashes
red.
If,
at
that
time,
Train
No.
2,
running
behind
No.
1,
should
reach
the
insulated
block
it
would
stop
and
wait
there.
As
soon
as
the
last
car
of
train
No.
1
has
passed
the
Contactor,
the
Block
Signal
changes
back
to
green
and
the
current
is
once
TYPE
R_
TRANSFORMER
©
No.
15!
SEMAPHORE
He
=
NO.
167
WHISTLE
CONTROLLER
=<
Figure
6—Connections
for
Running
Two
Trains
with
a
Semaphore
in
the
Layout.
Page
5
tina
naam
Scorer
iad
