lippertcomponents.com 574-537-8900 Rev: 01.17 - Solera
®
Super Shade
Solera
®
Super Shade
Installation and Owner’s Manual
(For Aftermarket Application)
Installation

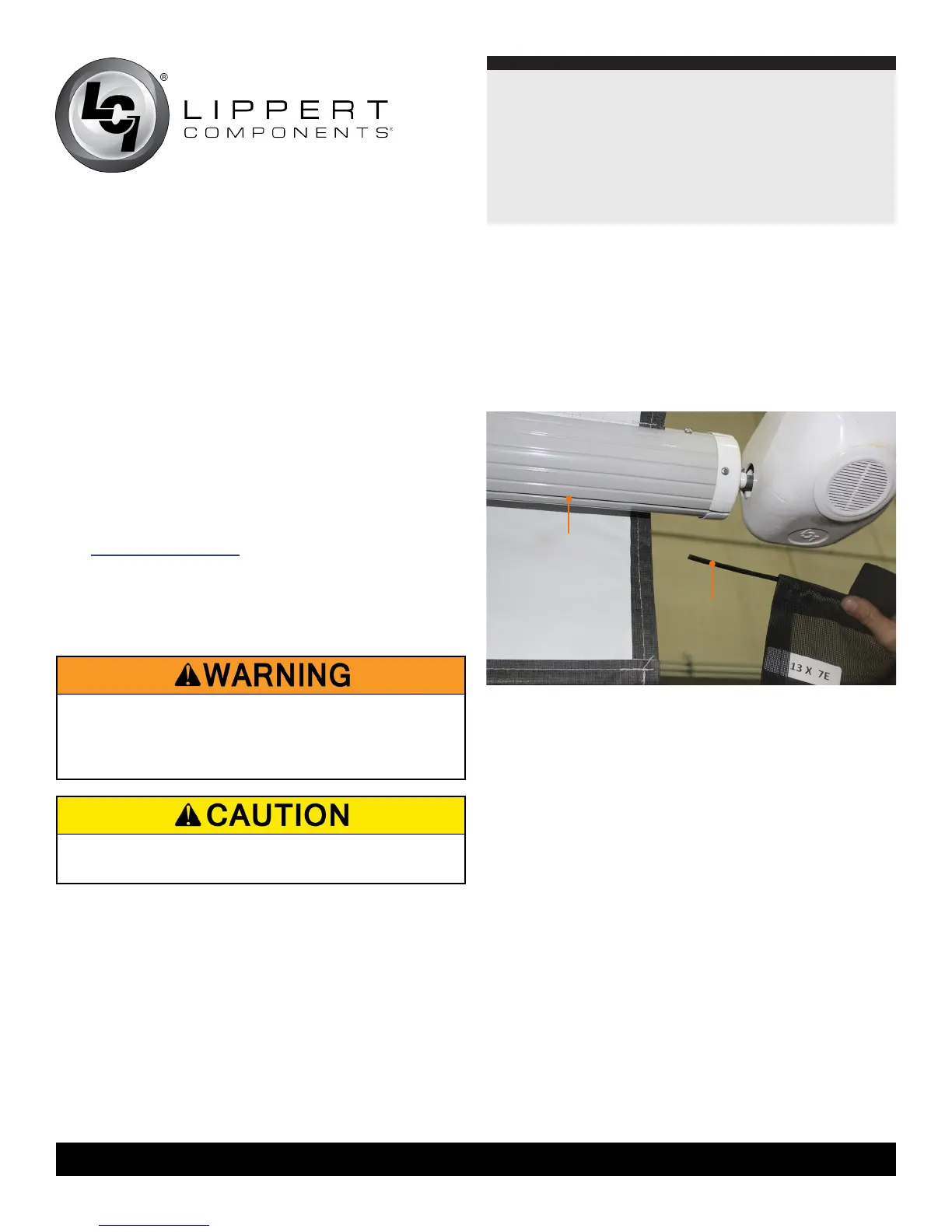

1. Unbox and unfold the Solera Super Shade body and the
zipper insert. Unzip the insert piece from the body and set
the body piece aside.
2. Locate and trim the polycord so that at least 3” of
polycord extends past the fabric on both sides (Fig.1).
3. Locate the open channel in the awning roll tube
accessible through the end cap.
4. Check the roll tube channel to make sure there are no
sharp edges that can snag or tear the fabric.
NOTE: For Solera and Carefree awnings, align the roll
tube channel with the front side of the drive/idler head
(Fig.1 and Fig.2). This allows the insert piece to slide
more easily into the roll tube channel.
Introduction
The Solera
®
Super Shade for Electric Awnings is the
only recreational vehicle awning shade made specically
for 12V awnings. It is simply the easiest shade to set up
on the market today. The Super Shade can be used on
Solera awnings as well as Carefree awnings and Dometic
awnings. It’s perfect for awnings that provide little shade
because they roll out at. The open-weave fabric cuts
approximately 85% of light for a cool and comfortable
shade. It provides some privacy without blocking your view
and doubles as a windbreak.
The Solera Super Shade for Electric Awnings comes in two
pieces: a 6’ body (below the zipper) and an insert.
Additional information about this product can be obtained
from www.lci1.com/support or by downloading the free
MyLCI app. The app is available on iTunes
®
for iPhone
®
and
iPad
®
and also on Google Play
™
for Android
™
users.
iTunes, iPhone and iPad are registered trademarks of Apple
Inc. Google Play and Android are trademarks of Google Inc.
Resources Required
• 1 to 2 Persons
roll tube
channel
polycord
Fig.1
IF STAKING SOLERA SUPER SHADE TO THE GROUND, BE
SURE TO DISABLE ANY AND ALL SELF RE-TRACKING WIND
SENSING OPTIONS ON THE AWNING. FAILURE TO DO SO
COULD RESULT IN DAMAGE TO THE AWNING AND UNIT.
MOVING PARTS CAN PINCH, CRUSH OR CUT. KEEP
CLEAR AND USE CAUTION.
