Installation and Owner’s Manual
(For Aftermarket Application)
7. Take the body of the Super Shade and zip it to the insert
piece (Fig.4).
8. Stake the shade to the ground with the tie downs and
stakes provided.
NOTE: To remove the Super Shade for storage, remove
the spikes and tie downs and unzip the body panel of the
Super Shade. Fold to t in the storage bag provided. The
insert piece can remain on the roll tube and roll up with
the fabric when the awning is retracted.
5. Using the polycord, slide the insert piece into the roll
tube channel, making sure not to snag the insert (Fig.2).
NOTE: The easiest way to install this insert piece is to have
one person hold the insert even with the roll tube, while
another person pulls the insert into the roll tube channel.
6. Once the insert is located in the center of the roll
tube, affix the insert piece with self-adhesive hook and
loop fabric to the roll tube on both ends. This will hold
the insert in place when zipping on the body portion of
the Super Shade (Fig.3).
NOTE: The other section of hook and loop fabric is sewn
into the insert piece (Fig.3).

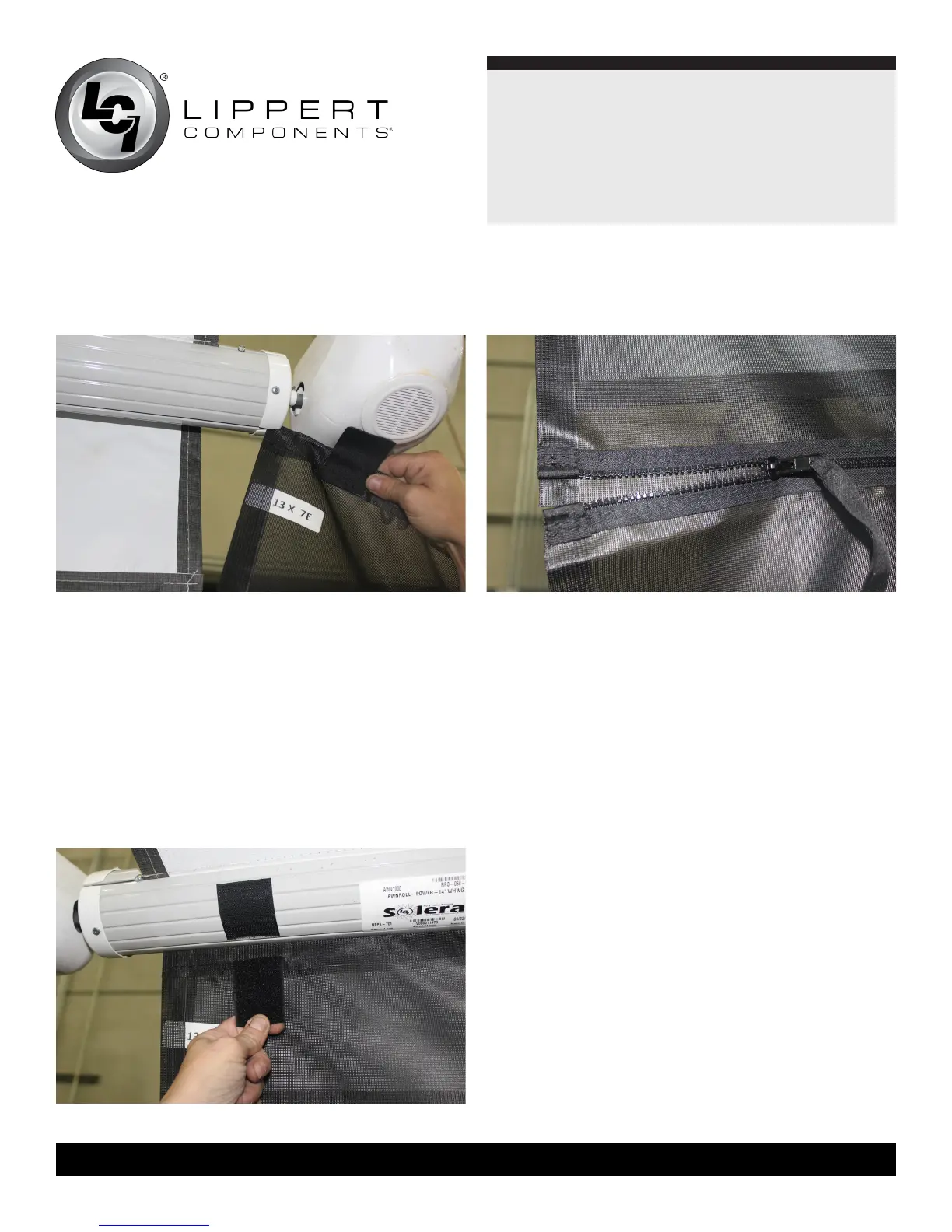

Fig.2
Fig.3
Fig.4
