LISICKI Z-178/2 User Manual

10

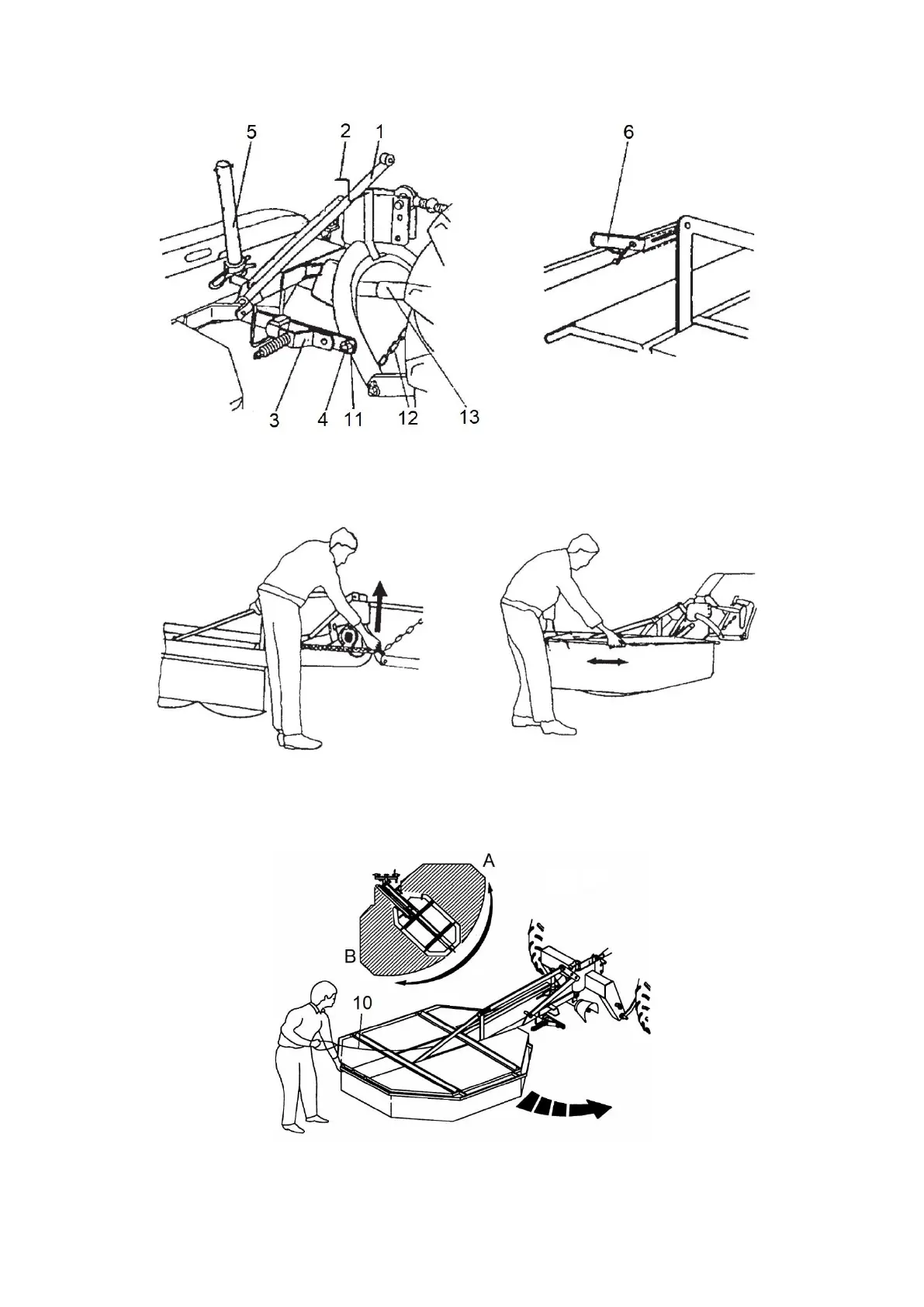

Fig. 7. Mower in working position: 1 - transport beam, 2 - yoke hook, 3 - safety device, 4 - upper pivot
of linkage frame, 5 - support, 6 - latch, 7 - yoke hook, 8 - chain,11 - linchpin, 12 - chain, 13 - U-
joint shaft.
Fig. 8. Supporting mower when removing
transport beam.
Fig. 9. Turning mower when moving from
transport to working position and other way
round.
Fig. 10. Turning Z-178/3 mower: A - working position, B - transport position; 10 - latching mechanism’s
rope.

LISICKI Z-178/2 Specifications

General

Brand	LISICKI
Model	Z-178/2
Category	Lawn Mower
Language	English
