page 5

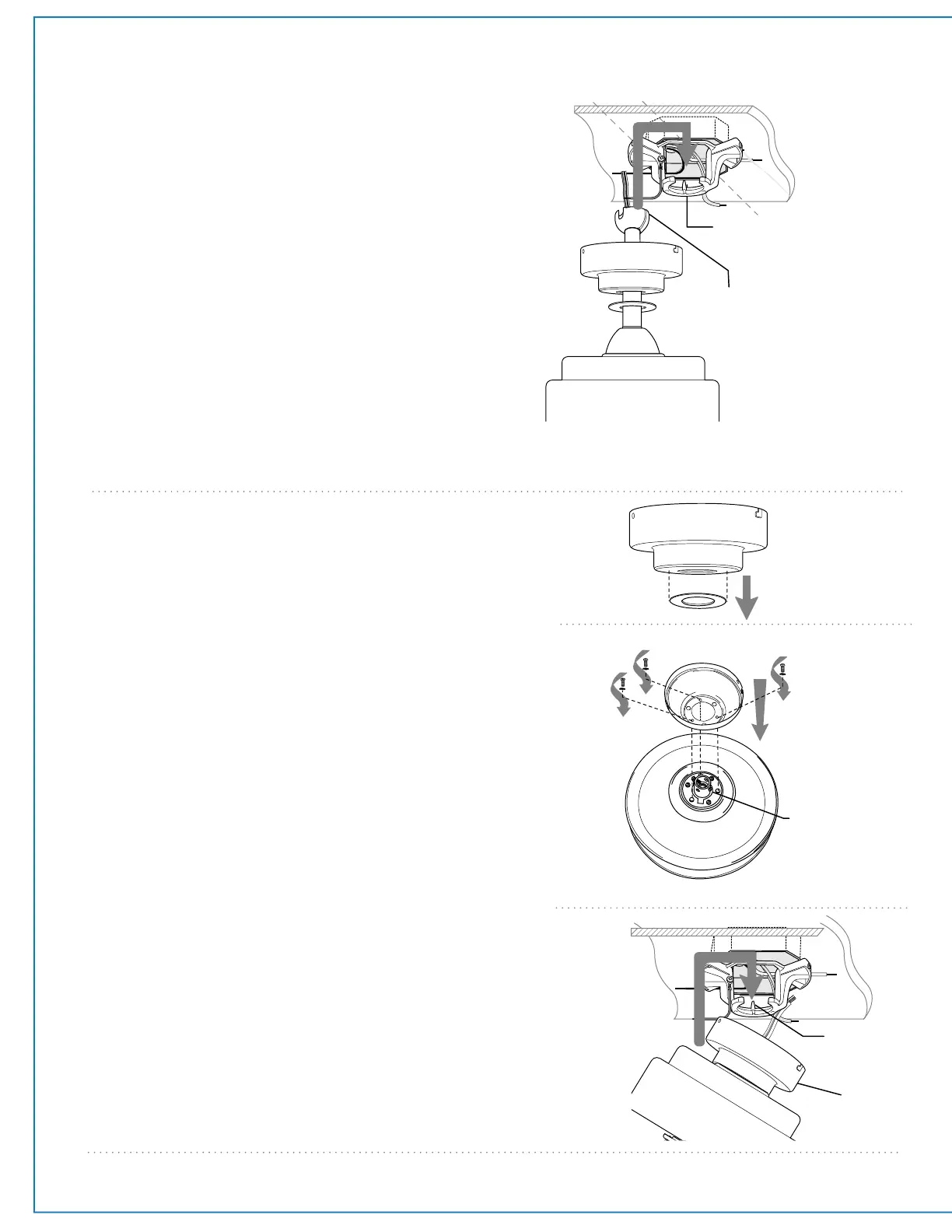

5. Fan Assembly. (cont.)
6. Fan Assembly (flushmount).
Remove and set aside canopy cover to reveal 6
holes. Notice that 3 of these holes are larger.
Note: Yoke cover will not be used with this type
of installation.
There are 6 screws in top of motor housing,
remove every other screw and lock washer.
Thread wiring through canopy. Place canopy over
yoke, aligning larger holes in canopy with the 3
existing screws in top of motor housing. Insert
the 3 screws and 3 lock washers that were
removed into the remaining holes. Securely
tighten these screws.
To prepare the fan for wiring, hang fan onto
hanging bracket by sliding the canopy over the
hanging bracket tab. (Use one of the non-slotted
holes on the rim of the canopy to do so.)
canopy
canopy cover
canopy
motor
housing
hanging ball slot
hanging bracket tab
motor housing
hanging
bracket tab
With the hanging bracket secured to the outlet
box and able to support the fan you are now
ready to hang your fan. Grab the fan firmly with
two hands. Slide downrod through opening in
hanging bracket and let hanging ball rest on
the hanging bracket. Turn the hanging ball slot
until it lines up with the hanging bracket tab.
WARNING: Failure to align slot in hanging ball
with tab in hanging bracket may result in
serious injury or death.
Tip: Seek the help of another person to hold the
stepladder in place and to lift the fan up to you
once you are set on the ladder.
canopy
motor
housing
yoke
