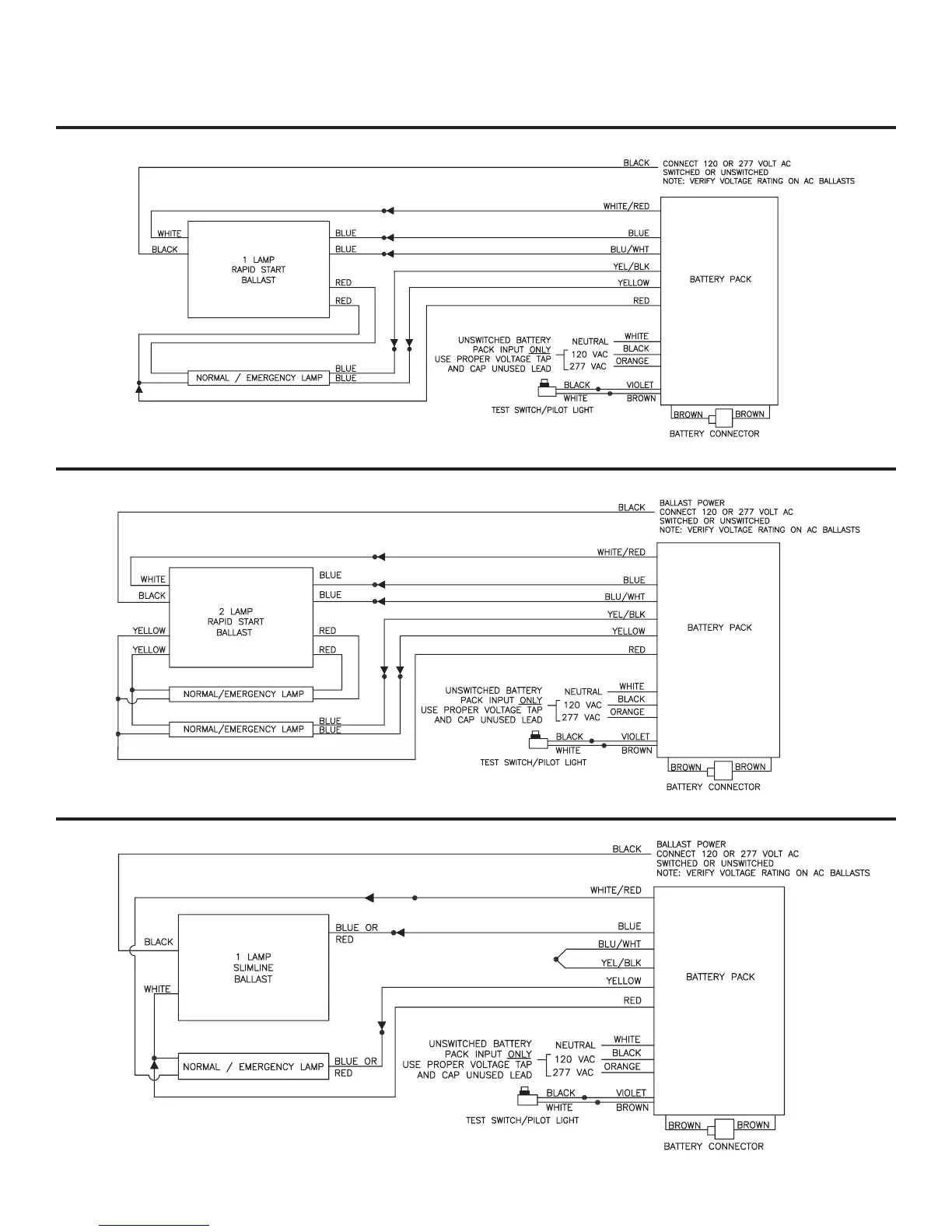

Lithonia Lighting EI500 - WIRING DIAGRAMS; Ballast Wiring Configurations

FIGURE A
ONE LAMP RAPID START BALLAST
WIRING DIAGRAMS
IMPORTANT NOTES: Before connecting TS/PL connector or wiring unit to fixture, refer to INSTALLATION PROCEDURE
and IMPORTANT SAFEGUARDS for safety information and mounting procedures.
Page 3
TWO LAMP RAPID START BALLAST
FIGURE B
ONE LAMP INSTANT START SLIMLINE BALLAST
FIGURE C
