LMF Clima LCE - Page 20

firmware 2.4
Rev. 04
A
Descrizione
Description
Beschreibung

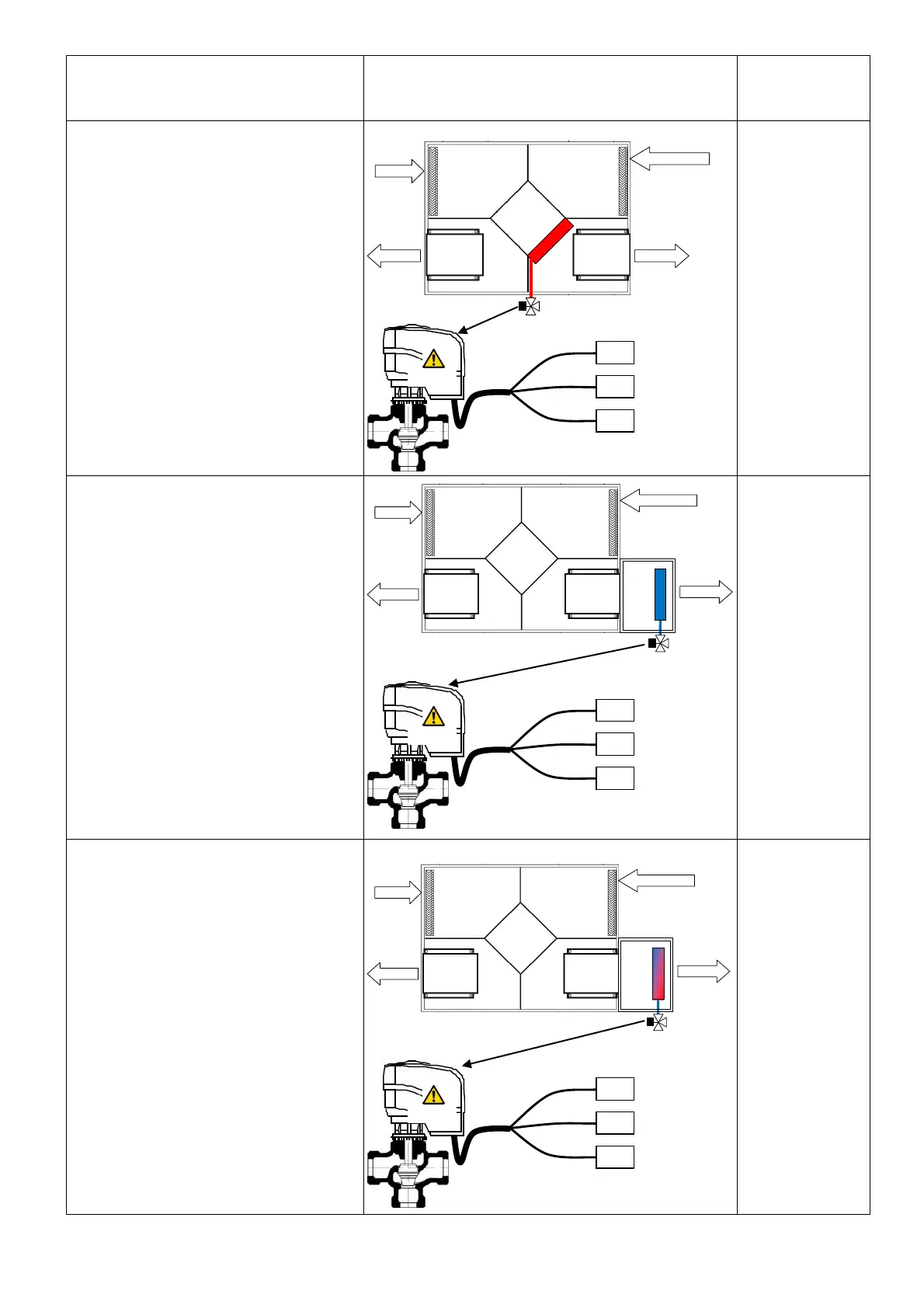

Collegamenti
Wiring
Verdrahtung
Parametri
Parameters
Parameter
Valvola calda
Heating valve
Heißwasserventil
Esterna
Immisione
Ripresa ambiente
Espulsione
Supply
Return
Fresh air
Exhaust
N= Neutro – Neutral - Neutral
Y1= Apre – Open - Öffnen
Y2= Chiude – Close - Schließen
N
Y2
Y1
3
2
3-POINT
230Vac
1
(Password= 1)
  = 2฀
Valvola fredda
Cooling valve
Kaltwasserventil
Esterna
Immisione
Ripresa ambiente
Espulsione
Supply
Return
Fresh air
Exhaust
N= Neutro – Neutral - Neutral
Y1= Apre – Open - Öffnen
Y2= Chiude – Close - Schließen
N
Y2
Y1
7
6
3-POINT
230Vac
1
(Password= 1)
  = 2
Valvola promiscua
Unique changeover valve
Einzigartige Umschaltventil
Esterna
Immisione
Ripresa ambiente
Espulsione
Supply
Return
Fresh air
Exhaust
N= Neutro – Neutral - Neutral
Y1= Apre – Open - Öffnen
Y2= Chiude – Close - Schließen
N
Y2
Y1
7
6
3-POINT
230Vac
1
(Password= 1)
  = 0
