Locinox MAMMOTH - Dimensions and Gate Direction; Dimensions; Orange Plug Installation Note; Choosing Gate Turning Direction

2

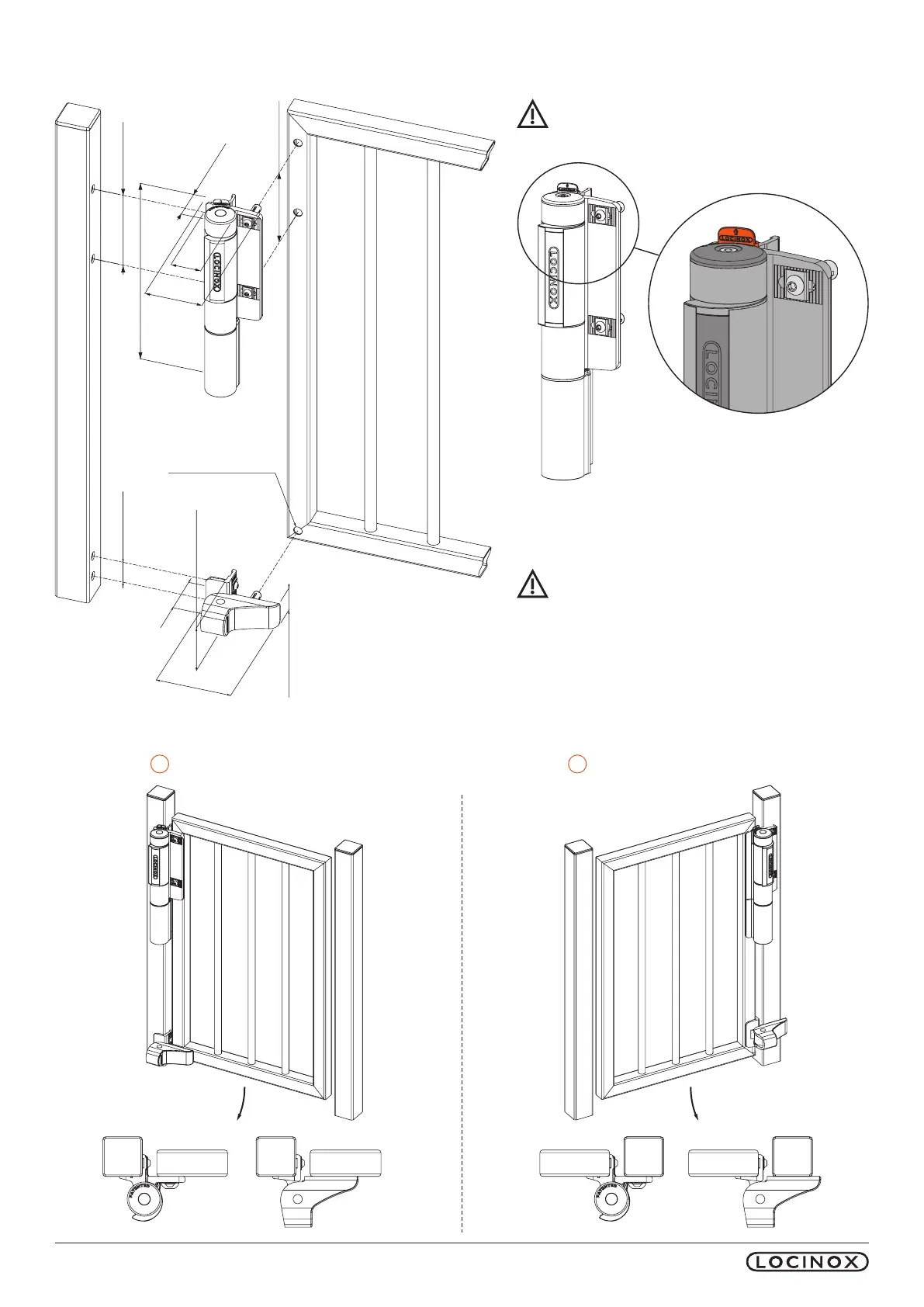

3. Dimensions
5. Choose the turning-direction of your gate
4. Do not remove te orange plug before mounting
5-9/16”
14”
4”
2”
2-1/4”
1-9/16”
3”
3-1/2”
5”
1-3/4
”
5-9/16”
Ø 5/8” (7x)
The orange plug garantees a perfect 90° angle between
the mounting wings of the gatecloser. Leave this plug in
place during installation.
Before preparing your proles, decide if you have a left- or
right hand door. The xing of Mammoth and Rhino are
different for each situation!
6. Prole preparation
A
Left hand door
B
Right hand door
