INSTALLING THE LOCKSET
Step 1

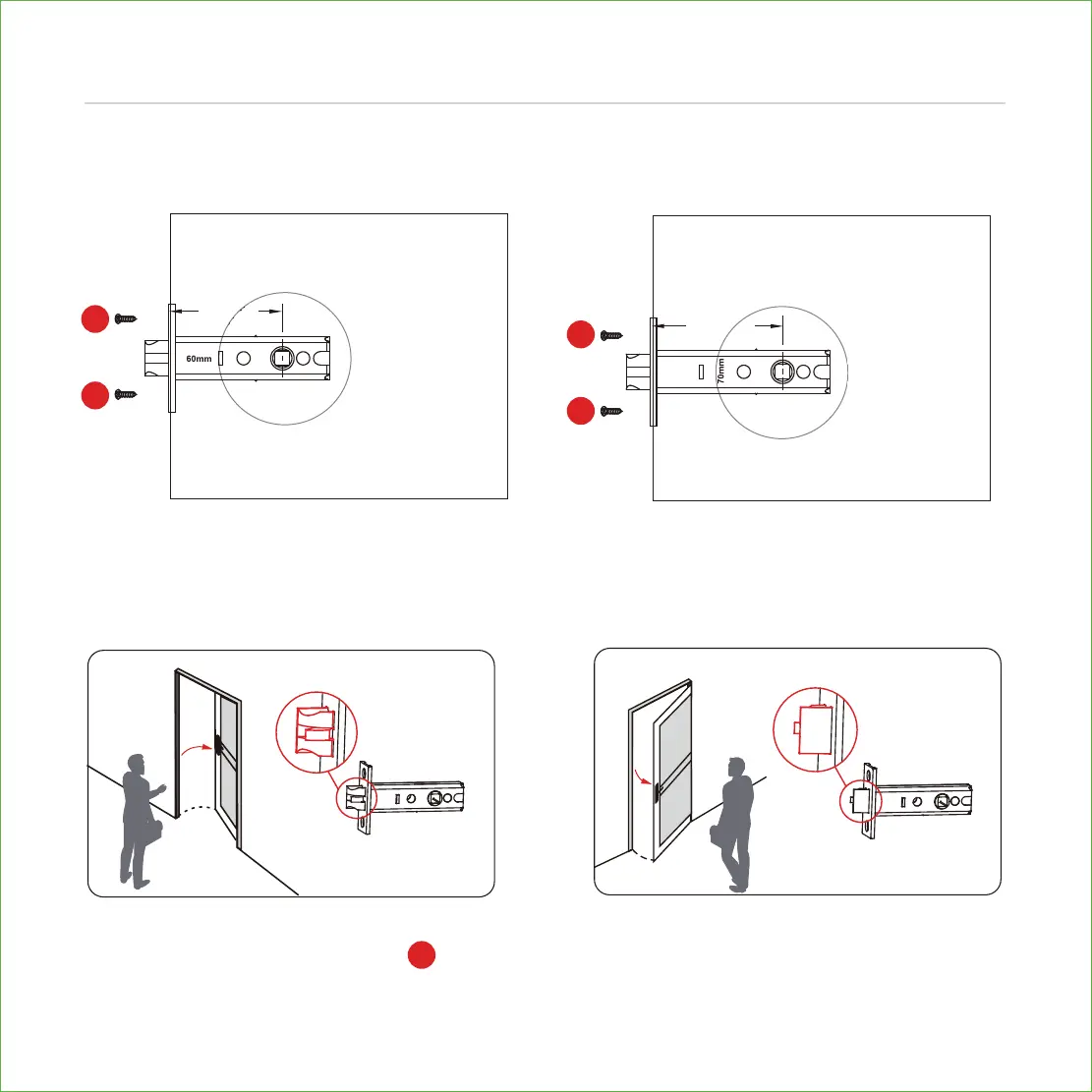

Measure the distance between center of front door hole to the edge of your door
and select the correct lockset. Select F1 if 2-3/8"(60mm) or F2 if 2-3/4"(70mm).
2-3/4"
(70mm)
2-3/8"
(60mm)
F 1
F 2
8
"
m
Facing the door exterior, install the lockset according to the opening direction of your door.
In-swing Door
Out-swing Door
G
G
G
G
OR
Secure lockset with provided G screws.
